BCB58C-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BCB58C-1

BCB58C-1: DescriptionInterconnection Device; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerL-com Global Connectivity

Download Datasheet Parametric Compare View All

BCB58C-1 Overview

Interconnection Device

BCB58C-1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

REV

DESCRIPTION

INITIAL RELEASE

ECN 3177: UPDATE DWG FORMAT

REVISIONS

DATE

05/23/06

2/5/08

CHANGED BY

D. PARHAM

D.GRIFFIN

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE

PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE

WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.

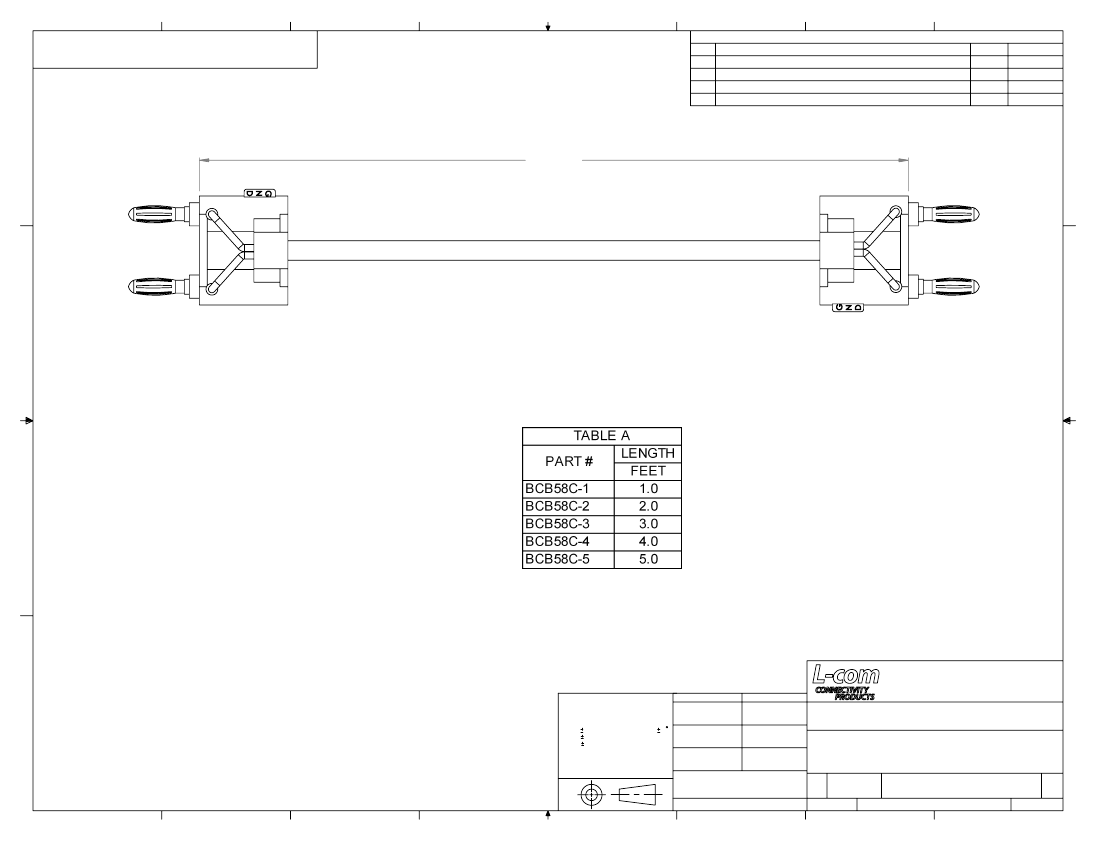

LENGTH

NOTES:

ASSEMBLY

SHIELD CONNECTED TO SIDE MARKED GND

CABLE

RG58C/U COAXIAL

CENTER CONDUCTOR: 20AWG STRANDED COPPER

INSULATION: SOLID POLYETHYLENE

BRAIDED SHIELD: TINNED COPPER

OUTER JACKET: BLACK PVC

VOLTAGE RATING: 30V

PLUGS

DOUBLE BANANA

BODY: POLYETHYLENE

PLUGS: GOLD PLATED COPPER

VOLTAGE RATING: 150 VDC

CURRENT RATING: 2A DC @ 100V

ENVIRONMENTAL

OPERATING TEMPERATURE RANGE: -20°C TO +60°C

PACKAGING

INDIVIDUALLY PACKAGED IN A POLYBAG

APPROVALS

UNLESS OTHERWISE SPECIFIED,

DRAWN BY

DIMENSIONS ARE IN INCHES [mm]

D. PARHAM

TOLERANCES TO BE:

.X .1 [2.5]

ANGLES 2 CHECKED BY

.XX .01 [.25]

J. KIEZULAS

.XXX .005 [.13]

OVERALL CABLE LENGTH TOL:

≤

60 [1524] +3 [76.2] / - 0

> 60 [1524] +5% / -0%

PROJ

APPROVED BY

C. McCORMICK

DATE

BCB58C-1 Related Products

	BCB58C-1	BCB58C-3	BCB58C-4	BCB58C-5	BCB58C-2
Description	Interconnection Device	Interconnection Device	Interconnection Device	Interconnection Device,	Interconnection Device
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Connector type	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE
Maker	-	L-com Global Connectivity	L-com Global Connectivity	L-com Global Connectivity	L-com Global Connectivity
