MQBC & MQBT Series 8 Pin DIP Oscillator
Same Day Shipping Available
Tri-state Function
Tape and Reel Package Available
Frequency
Frequency Stability (Inclusive of Temperature, Load, Voltage,
and Aging)
Aging @ +25°C
Operating Temperature Range
Storage Temperature Range
Output Waveform
Supply Voltage (Vdd)
Supply Current (unloaded)
Load
Logic “0”
Logic “1”
Rise/Fall Time
Start Up Time
Duty Cycle
Jitter
1.000MHZ to 66.000MHZ
66.000MHZ and above
1.000MHZ to 33.000MHZ
33.000MHZ and above
+3.3 VDC ±10%
25mA
5TTL or 30pF
0.4V max
2.4 V min
TTL
1.000MHZ to 150.000MHZ
See Part Number Guide
±5 ppm per year max
See Part Number Guide
-55°C to +125°C
CMOS
+5.0 VDC ±10%
45mA
10 TTL or 50pF
+3.3 VDC ±10%
25mA
15pF
0.5V max
Vdd-0.5V min
4nSec max
10mSec max
45%/55% (TTL @ 1.4V Level / Cmos @ 50% Waveform)
40%/60% (TTL @ 1.4V Level / Cmos @ 50% Waveform)
50pSec max (RMS) @ 5.0 VDC
30pSec max (RMS) @ 5.0 VDC
50pSec max (RMS) @ 5.0 VDC
40pSec max (RMS) @ 5.0 VDC
+5.0 VDC ±10%
45mA
30pF
Environmental & Mechanical Detail
Shock
Solderability
Solvent Resistance
Vibration
MIL-STD-883, Method 2002 Cond B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Cond A
Marking Detail
Line 1 = MXXXXX
M
XXXXX
Line 2 = SYYWWL
S
YYWW
L
Line 3 = XXXXX
Internal use only
May vary with lots
Pin 1 Designator
=
=
=
Internal Code
4 Numerical Digit Date
Code (Year / Week)
Denotes RoHS Compliant
=
=
MMD
Frequency in MHZ
Gross Leak Test
MIL-STD-883, Method 1014, Cond C
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Subject to change without notice
05/26/11 C
Pg 1 of 2

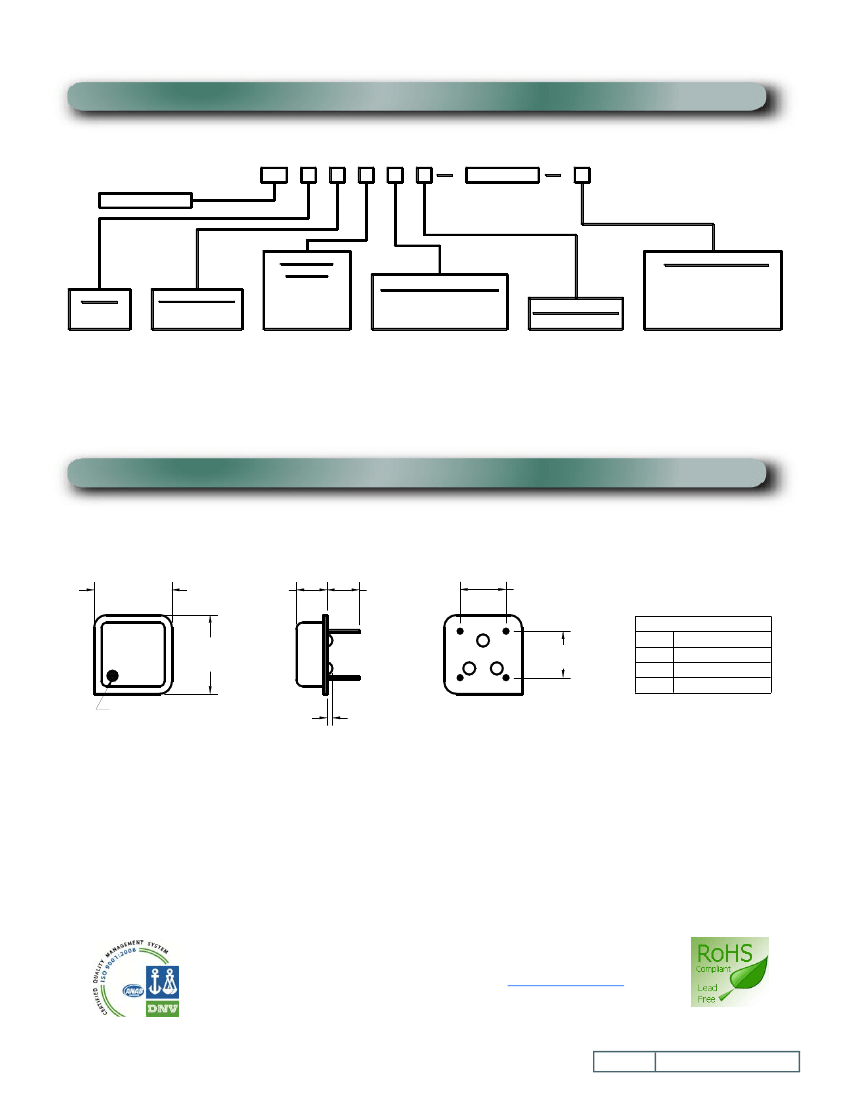

Part Number Guide
MQB
Half-size (8 pin DIP)
H
FREQUENCY
Output
C = CMOS
T = TTL
Supply Voltage
5 = +5 VDC
3 = +3.3 VDC
Frequency
Stability
020 = ±20 ppm
025 = ±25 ppm
050 = ±50 ppm
100 = ±100 ppm
Operating Temperature
Blank = 0°C to +70°C
27 = -20°C to +70°C
48 = -40°C to +85°C
Pin 1 Connection
H = Tri-state
Value Added Options
Blank = No Added Options
G1 = Gull-Wing (option 1)
G = Gull-Wing (option 2)
CLXXX = Cut Leads
XXX = Lead Length Code
PLEASE CONSULT WITH MMD SALES DEPARTMENT FOR ANY OTHER PARAMETERS OR OPTIONS
Mechanical Details
12.90 [.508]
MAX
5.08 [.200]
MAX
5.33 [.210]
5
8
7.62 [.300]
PIN
PIN 1
PIN 4
PIN 5
PIN 8
CONNECTIONS
TRI-STATE
CASE GROUND
OUTPUT
SUPPLY VOLTAGE
MXX.XXX
SYYWWL
XXXXX
12.90 [.508]
MAX
4
1
7.62 [.300]
PIN 1 INDICATOR
.90 [.035]
MAX
DIMENSIONS IN BRACKETS ARE IN INCHES
EXTERNAL BYPASS CAPACITOR IS RECOMMENDED
