BUZ74-E3046 datasheet, PDF - EEWORLD Datasheet

BUZ74-E3046: DescriptionPower Field-Effect Transistor, 2.4A I(D), 500V, 3ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size192KB，8 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric View All

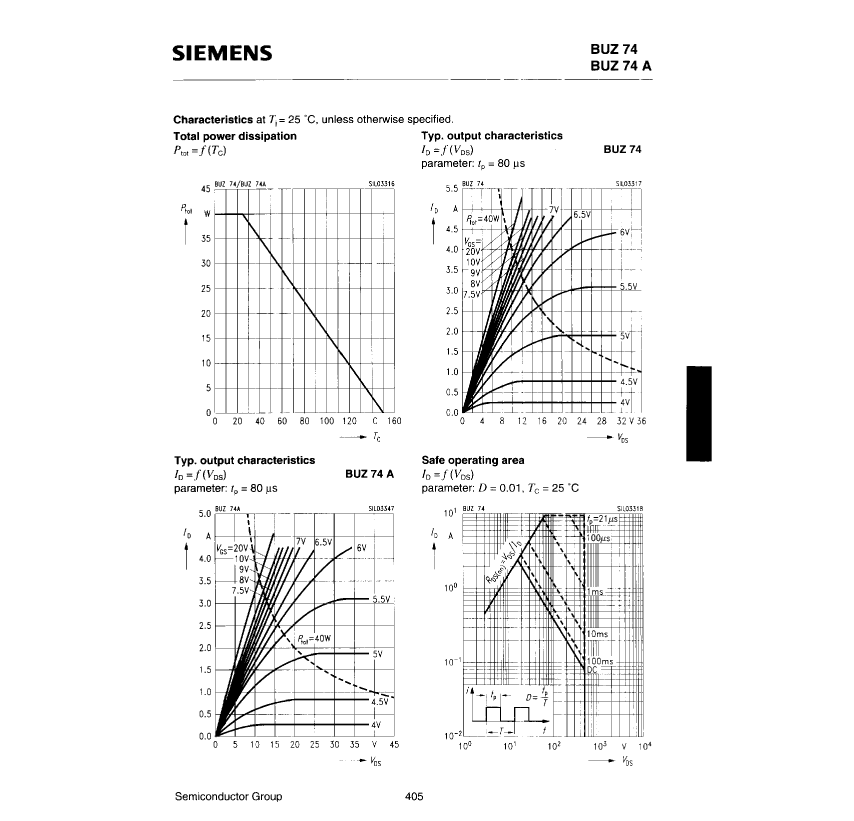

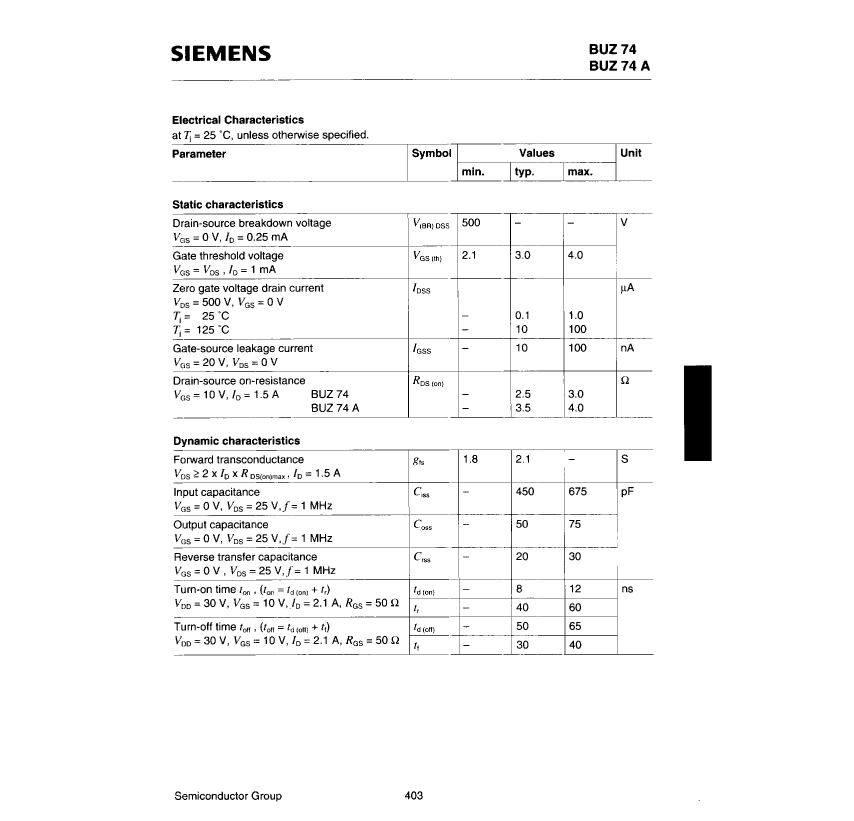

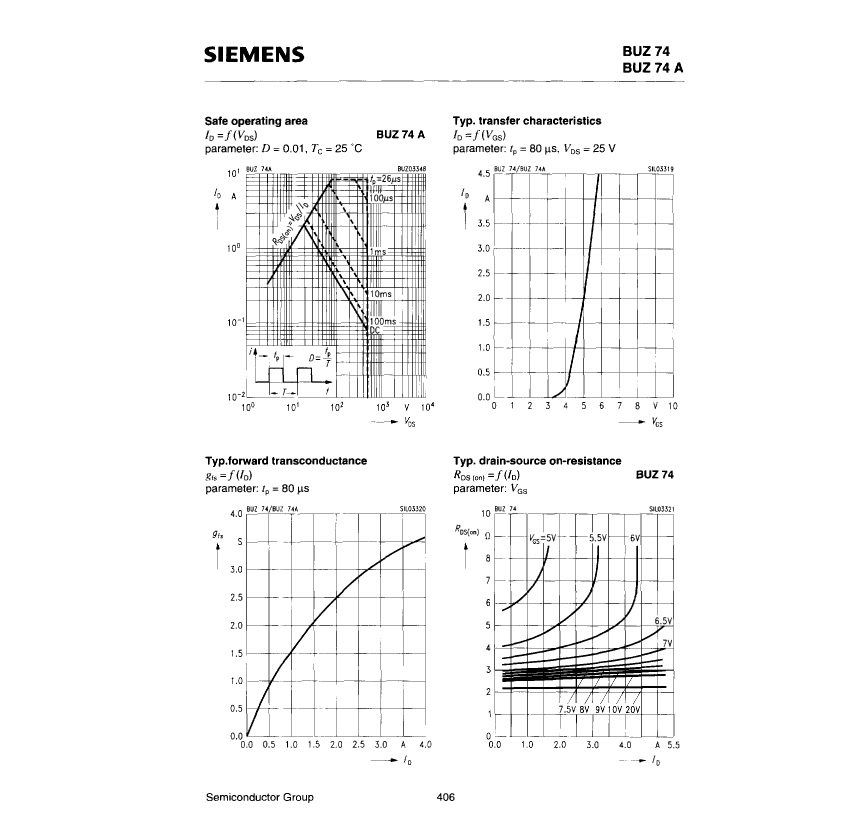

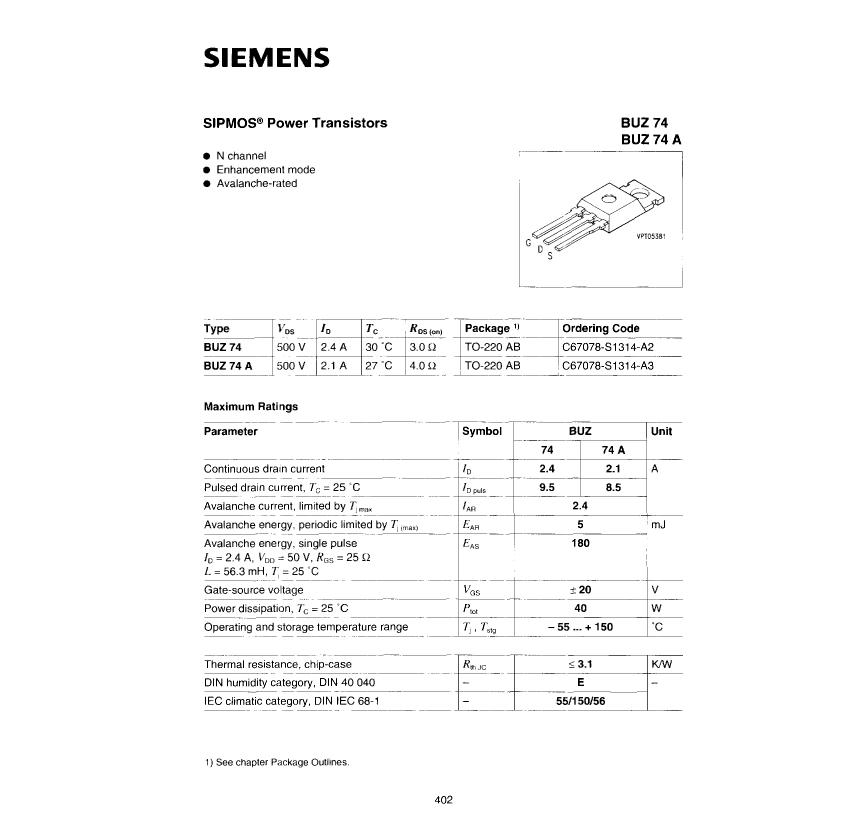

BUZ74-E3046 Overview

Power Field-Effect Transistor, 2.4A I(D), 500V, 3ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN

Parameter Name	Attribute value
Parts packaging code	TO-220AB
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknown
Avalanche Energy Efficiency Rating (Eas)	180 mJ
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	500 V
Maximum drain current (ID)	2.4 A
Maximum drain-source on-resistance	3 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	30 pF
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	40 W
Maximum pulsed drain current (IDM)	9.5 A
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	105 ns
Maximum opening time (tons)	72 ns
Base Number Matches	1
