189-228-01 datasheet, PDF - EEWORLD Datasheet

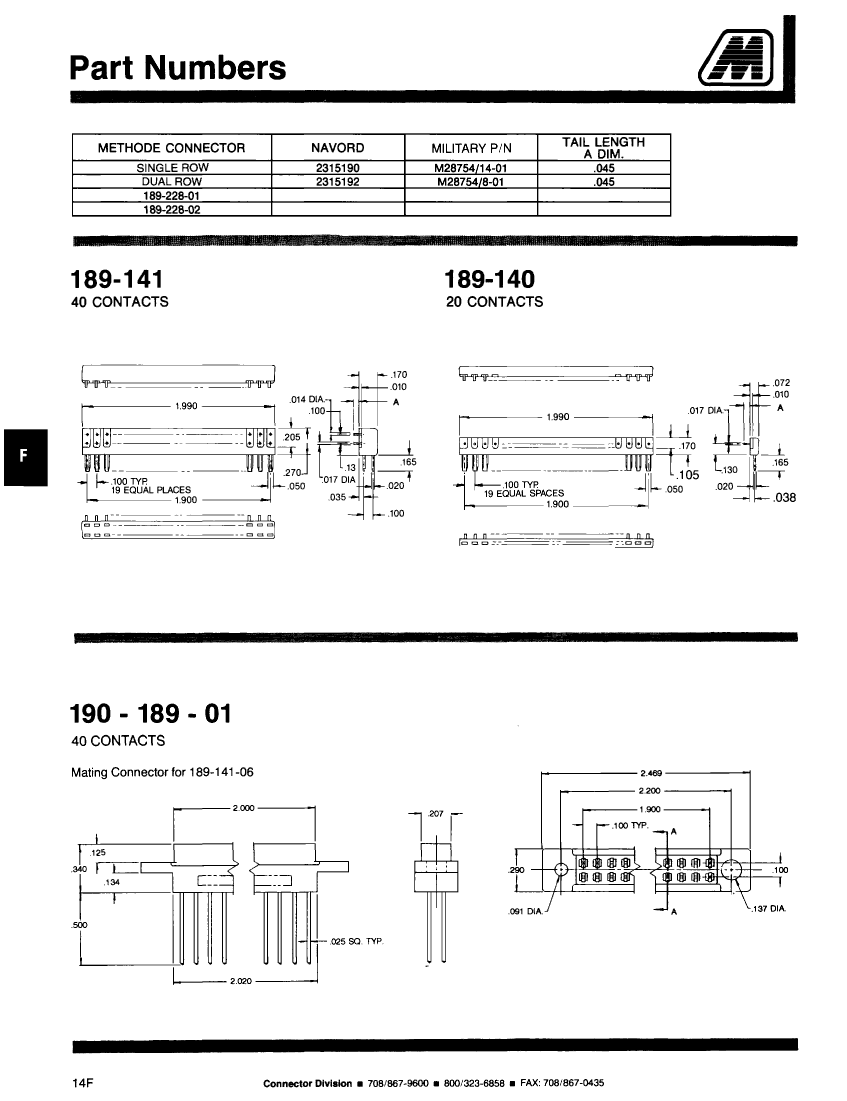

189-228-01: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size41KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric Compare View All

189-228-01 Overview

Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	189
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
Base Number Matches	1

	189-228-01	189-228-02	M28754/14-01	M28754/8-01
Description	Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
Reach Compliance Code	unknow	unknow	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	YES	YES
Manufacturer's serial number	189	189	M28754	M28754
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	2	1	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	20	40	20	40
Contact to complete cooperation	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
