ABM3B-26.000MHZ-E-1-U-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABM3B-26.000MHZ-E-1-U-T

ABM3B-26.000MHZ-E-1-U-T: DescriptionParallel - 3Rd Overtone Quartz Crystal, 26MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size706KB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ABM3B-26.000MHZ-E-1-U-T Overview

Parallel - 3Rd Overtone Quartz Crystal, 26MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

ABM3B-26.000MHZ-E-1-U-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	10 µW
frequency stability	0.001%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	26 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)
Series resistance	50 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

CERAMIC SMD CRYSTAL

ABM3B

FEATURES:

• Fundamental mode.

• Suitable

for

reflow.

• Tight Stability available.

• Ceramic package and metal lid assures high precision and reliability.

• Seam sealing.

RoHS

Compliant

APPLICATIONS:

• Cellular telephones,

Pagers.

• Communication and

Test

equipment.

• High Density applications.

• PCMCIA and wireless applications.

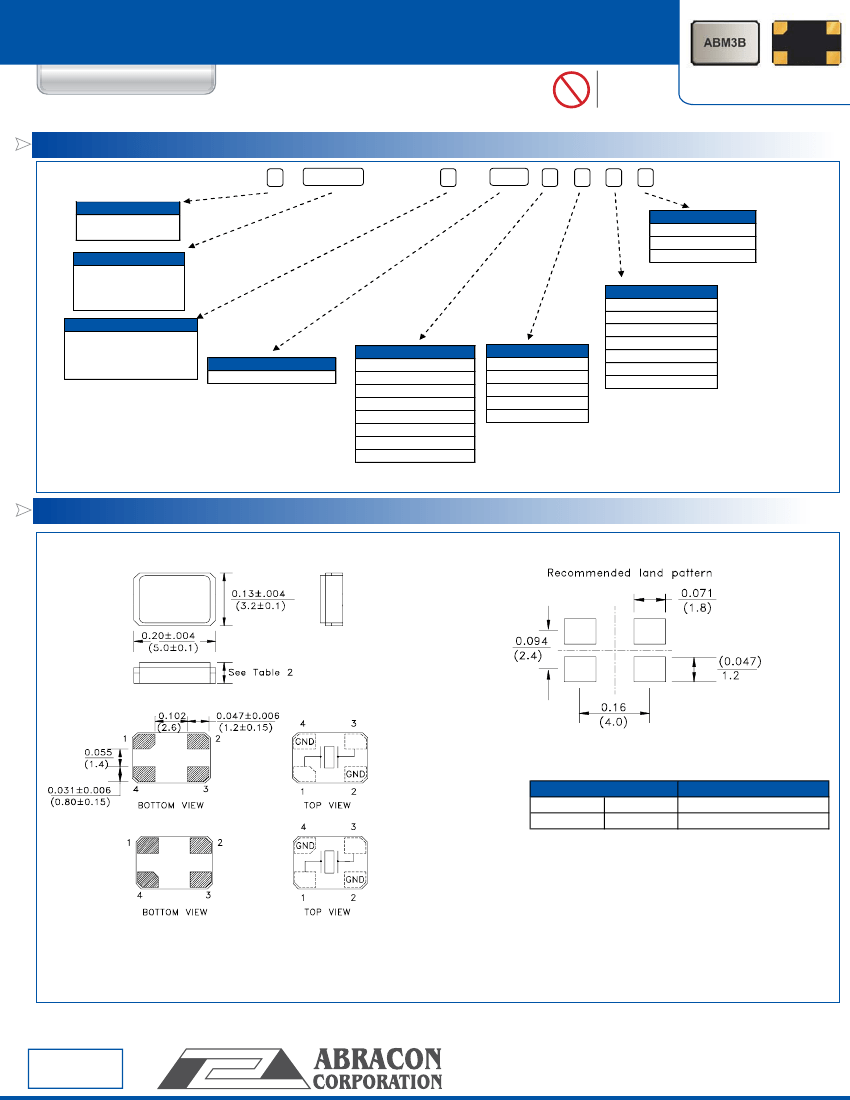

5.0 X 3.2 X 1.1mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operation Mode

Operating

Temperature

Storage

Temperature

Frequency

Tolerance

@ 25°C

Frequency Stability over the

Operating Temperature

(Ref to + 25°C)

Equivalent Series Resistance

Shunt Capacitance C0

Load Capacitance CL

Drive Level

Aging (First

Year)

@ 25°C ± 3°C

Insulation Resistance

TABLE 1- Standard ESR

Frequency (MHz)

8.000 - 9.999 (Fund.)

10.000 -11.999 (Fund.)

12.000 - 15.999 (Fund.)

ABM3B Series

8.0MHz - 50.0MHz (Fundamental

50.1MHz - 125MHz (3rd overtone)

Fundamental or 3rd overtone

- 10°C to + 60°C (see options)

- 40°C to + 85°C

± 50 ppm max. (see options)

See table 1

7 pF max.

18 pF (see options)

100

max., 10

typical

± 5ppm max.

500 M Ω min at 100Vdc ± 15 V

ESR(

Ω)

max

200

100

Frequency (MHz)

16.000 - 50.000 (Fund.)

50.001 - 80.000 (3rd OT)

80.001 - 125.000 (3rd OT)

ESR(

max

)

ABRACON IS

ISO 9001:2008

ISO 9001 / QS 9000

CERTIFIED

Revised: 06.22.12

30332

Esperanza, Rancho

Santa Margarita, California 92688

tel 949-546-8000

fax

949-546-8001|

www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

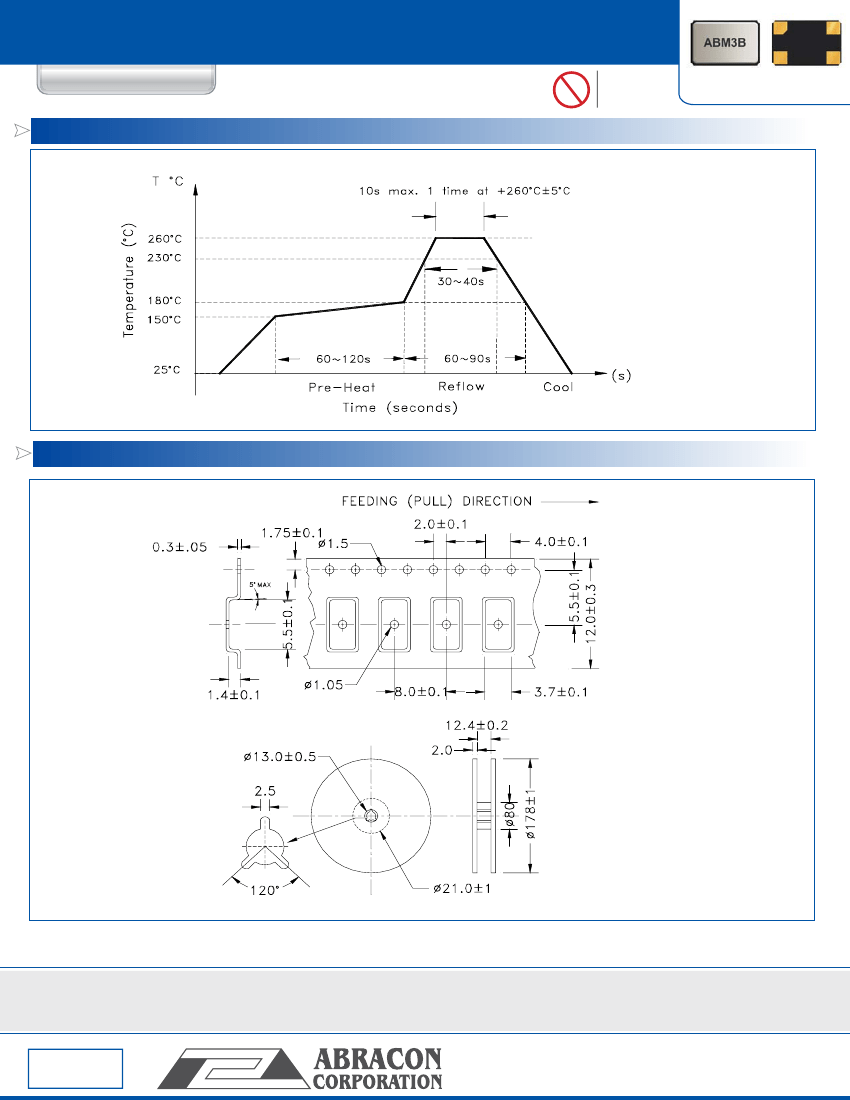

ABM3B-26.000MHZ-E-1-U-T Related Products

	ABM3B-26.000MHZ-E-1-U-T	ABM3B-16.000MHZ-B-2-T	ABM3B-12.000MHZ-B-T	ABM3B-14.31818MHZ-B-2-T	ABM3B-26.000MHZ-B-1-U-T	ABM3B-8.000MHZ-B-2-X-T	ABM3B-10.000MHZ-D-4-H-T	ABM3B-10.000MHZ-D-4-Z-T	ABM3B-26.000MHZ-1-U-T	ABM3B-12.000MHZ-B-2-T
Description	Parallel - 3Rd Overtone Quartz Crystal, 26MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - 3Rd Overtone Quartz Crystal, 16MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 12MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 14.31818MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - 3Rd Overtone Quartz Crystal, 26MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 8MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 10MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 10MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - 3Rd Overtone Quartz Crystal, 26MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 12MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	SMD, 4 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	TAPE AND REEL	TAPE AND REEL	TR, 7 INCH	TR, 7 INCH	TAPE AND REEL	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TAPE AND REEL	TR, 7 INCH
Ageing	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE	PARALLEL - 3RD OVERTONE	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - 3RD OVERTONE	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - 3RD OVERTONE	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW
frequency stability	0.001%	0.005%	0.005%	0.005%	0.001%	0.002%	0.0035%	0.01%	0.001%	0.005%
frequency tolerance	10 ppm	20 ppm	50 ppm	20 ppm	10 ppm	20 ppm	30 ppm	30 ppm	10 ppm	20 ppm
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
load capacitance	18 pF	18 pF	18 pF	18 pF	18 pF	18 pF	18 pF	18 pF	18 pF	18 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	26 MHz	16 MHz	12 MHz	14.31818 MHz	26 MHz	8 MHz	10 MHz	10 MHz	26 MHz	12 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	85 °C	85 °C	60 °C	70 °C
Minimum operating temperature	-	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-40 °C	-40 °C	-10 °C	-20 °C
physical size	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)	L5.0XB3.2XH1.1 (mm)/L0.197XB0.126XH0.043 (inch)
Series resistance	50 Ω	50 Ω	70 Ω	70 Ω	50 Ω	200 Ω	100 Ω	100 Ω	50 Ω	70 Ω
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)
Maker	-	Abracon	-	Abracon	Abracon	Abracon	Abracon	Abracon	Abracon	Abracon
