SC10N1X2-12VVB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> SC10N1X2-12VVB

SC10N1X2-12VVB: DescriptionDC-DC Regulated Power Supply Module, 1 Output, Hybrid,; CategoryPower/power management The power supply circuit; File Size801KB，2 Pages; ManufacturerSemiconductor Circuits Inc; Environmental Compliance

Download Datasheet Parametric View All

SC10N1X2-12VVB Overview

DC-DC Regulated Power Supply Module, 1 Output, Hybrid,

SC10N1X2-12VVB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	R-XSMA-P9
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output voltage	1.32 V
Minimum output voltage	1.08 V
Nominal output voltage	1.2 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
Base Number Matches	1

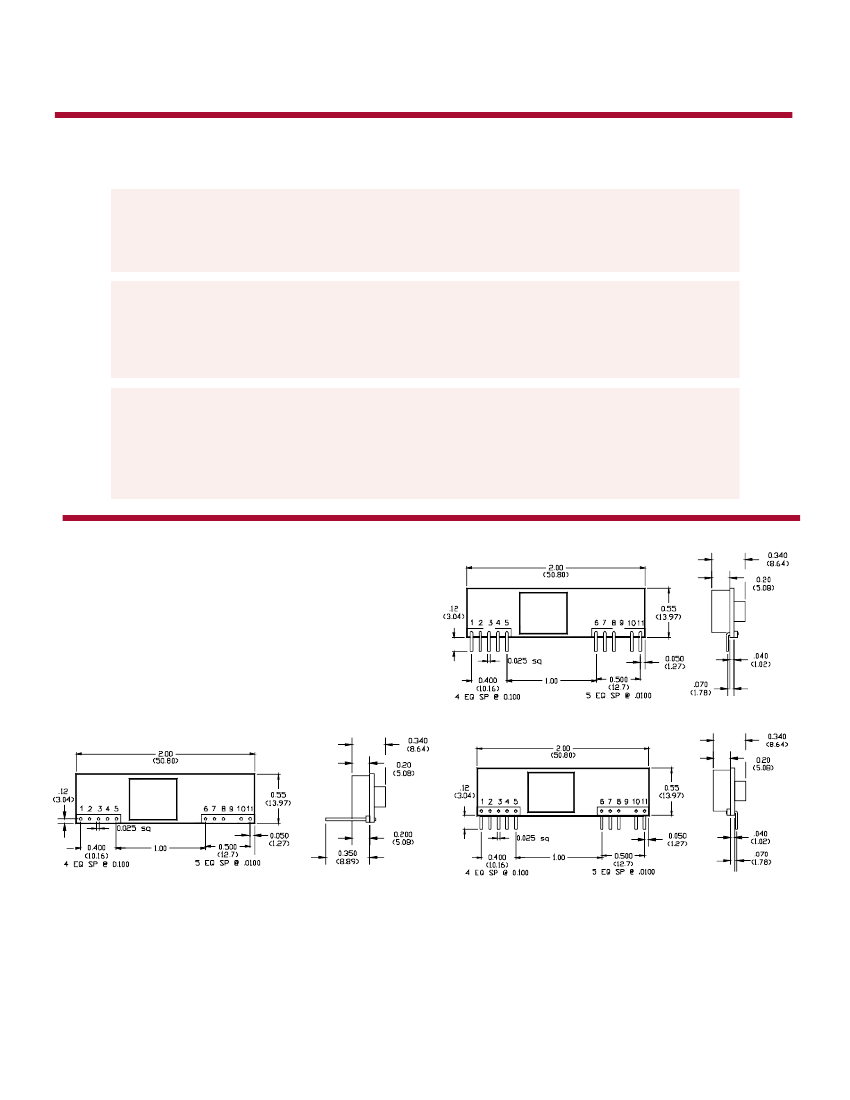

Preview

Download Datasheet

View All

765432121098765432109876543210987654321

OUTPUT

INPUT

All specifications are typical at nominal line and full load at 25°C unless

otherwise noted and are subject to change without notice.

ENVIRONMENTAL

GENERAL

Voltage Tolerance

Voltage Adjust

Ripple and Noise

Short Circuit Protection

Voltage Range

Remote On/Off Control

Line Regulation

Load Regulation

Efficiency

Isolation

Operating Temperature

Storage Temperature

Cooling

Manchester Series

DP Series

± 1%

± 10%

35mV pk-pk

Continuous Power Cycle

All Models

3.0-3.6 Vdc

4.5-5.5 Vdc

10.8-13.2 Vdc

-40°C to +71°C No Derating

-40°C to +105°C

Free-air Convection

0.1%

0.25% (no minimum load)

85-95% typ

Non-galvanically Isolated

These units are ideally suited for

data processing and networking

applications requiring point of load

regulation such as automotive test

equipment, process control and

minicomputers.

Applications

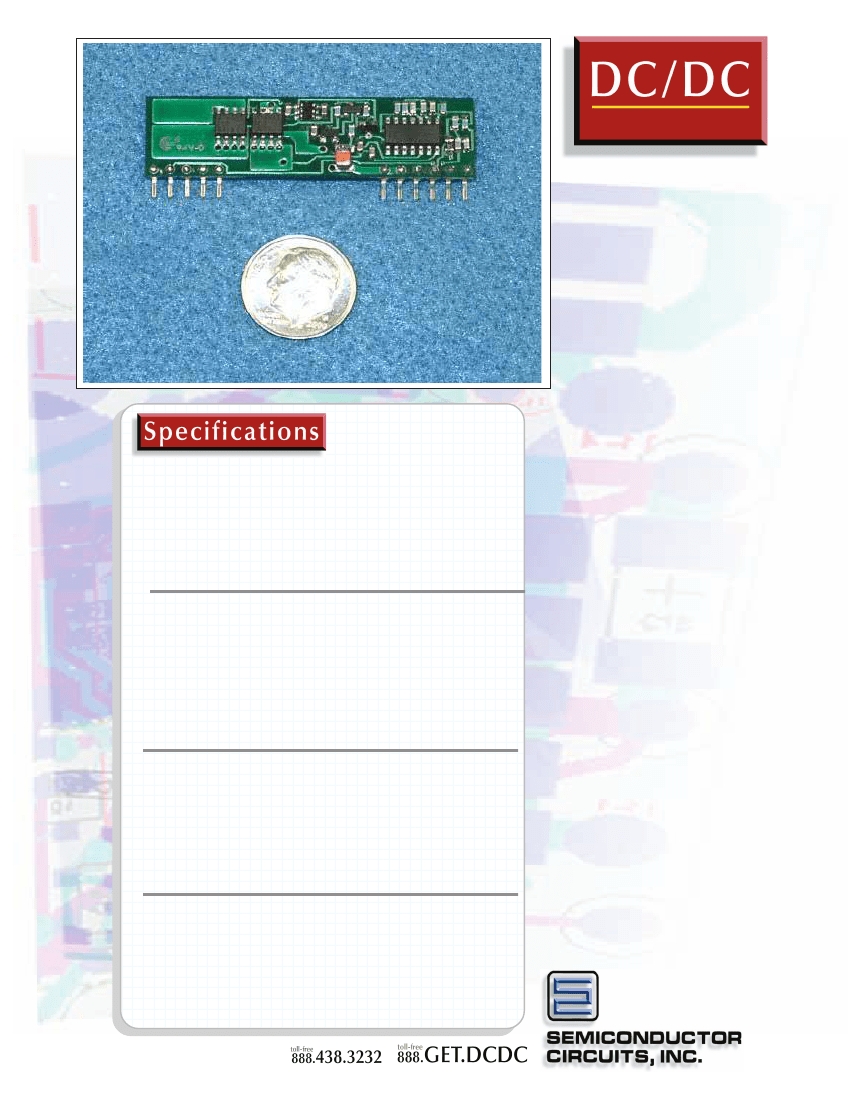

he 10 Amp Manchester

Series of high performance

converters offer a high

switching frequency topology and

efficiencies to 95% typical over

varying load conditions of 10% to

100%. Additional features include

remote sense, remote on/off

control, logic compatible with

CMOS or open collector TTL and

an operating temperature range of

-40°C to +71°C with no derating.

Units are packaged in a single

inline package and measure 2.00”

x 0.55” x 0.35”.

Single Outputs

10 AMPS

Input ranges

3.0-3.6 Vdc

4.5-5.5 Vdc

10.8-13.2 Vdc

Remote shutdown

300kHz switching frequency
