HCD300/BMDL20.0MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> HCD300/BMDL20.0MHZ

HCD300/BMDL20.0MHZ: DescriptionHCMOS/TTL Output Clock Oscillator; CategoryPassive components oscillator; File Size127KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

HCD300/BMDL20.0MHZ Overview

HCMOS/TTL Output Clock Oscillator

HCD300/BMDL20.0MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Manufacturer's serial number	HCD300
Oscillator type	HCMOS/TTL
Base Number Matches	1

Preview

Download Datasheet

View All

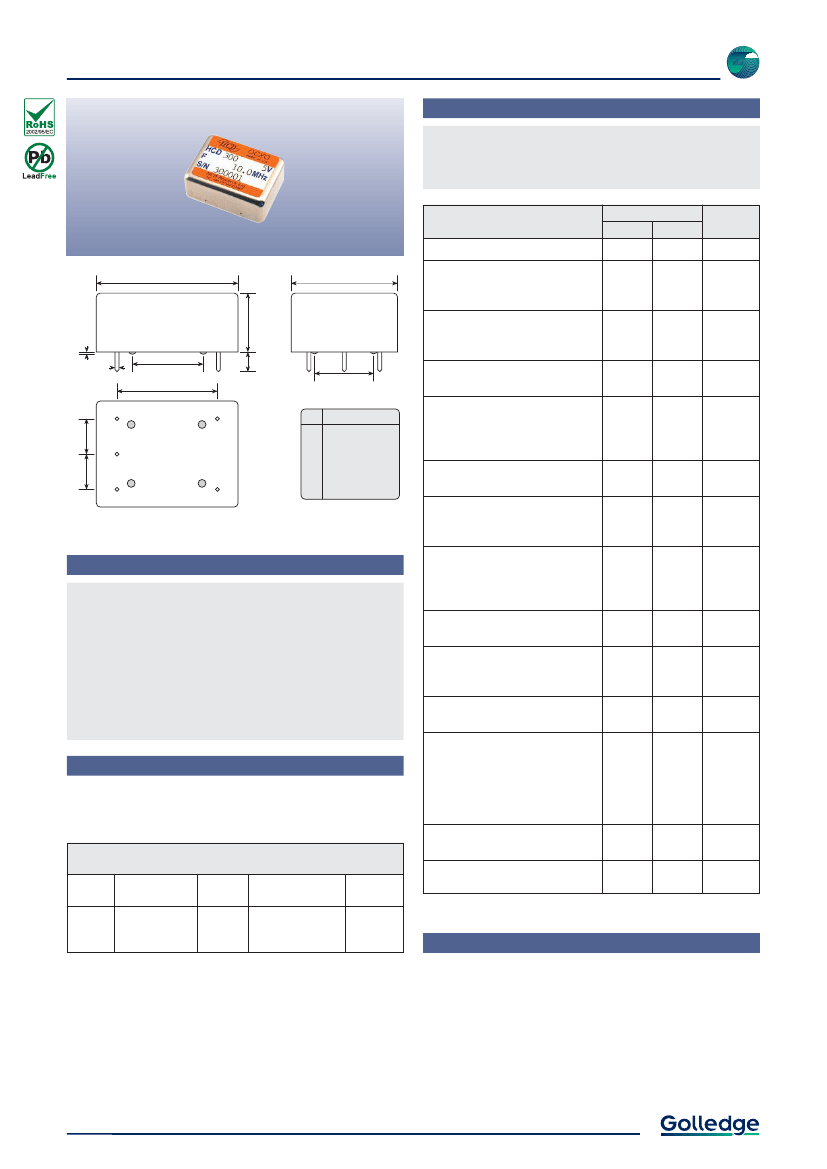

5V OCXO Low profile

Specifications

HCD300 & HCD301

HCD300: Sine output

HCD301: HCMOS / TTL compatible output

Product

HCD300

HCD301

Parameters

Frequency range:

36.10 (max)

27.20 (max)

Option

Codes

5.0 ~ 20.0MHz











































Ageing per day (at despatch):

< ±1x10

-8

< ±5x10

-9

Frequency stability:

±5x10

-7

per year max

±5x10

-8

per 5% change in V

15.00

(max)

0.50

0.80Ø

17.80

25.40

8.90

BOTTOM VIEW

5.00

15.00

Temperature stability:

< ±1x10

-7

< ±5x10

-8

8.90

CONNECTION

Freq adjustment

Ref. voltage out

Supply

RF output

Ground & case

Operating temperature range:

0 to +50°C

-20 to +60°C

-20 to +70°C

Storage temperature range:

-40 to +90°C

Output waveform:

Sine wave, 1.5V p-p ±0.5V into 50Ω

HCMOS / TTL compatible

Frequency adjustment:

±5x10

-6

typ (10MHz), +0.5 to +4.0V

(sufficient for 10 years ageing min)

Stabilised +4.0V supply provided

Supply voltage (V

+5.0V (±0.25V)







Features



Temperature stability down to 50ppb

Single 5V oven & oscillator supply

Low profile compact package

Standard European IEC CO-08 pin-out

Custom options available





Power consumption:

4.5W max at switch on

< 1.0W typ when stabilised at 25°C

Warm up:

±5x10

-8

after 10mins at +25°C

Phase noise (@ 10.0MHz):

< -105dBc/Hz @ 10Hz

< -125dBc/Hz @ 100Hz

< -145dBc/Hz @ 1kHz

< -150dBc/Hz @ 10kHz

< -150dBc/Hz @ 50kHz

Shock:

IEC 68-2-27 Test Ea

50G for 11ms

Standard Models

The table shows the most common models. In most cases

selecting one of these models will ensure the best combination

of price / performance and availability.

Freq

5.0MHz

10.0MHz

5.0MHz

10.0MHz

13.0MHz

Specification

HCD300/BNDL

HCD301/BNDL

Ageing

per day

±5x10

-9

±5x10

-9

±5x10

-9

±5x10

-9

±5x10

-9

Temperature

stability

±5x10

-8

-20+60°C

±5x10

-8

-20+60°C

±5x10

-8

-20+60°C

±5x10

-8

-20+60°C

±5x10

-8

-20+60°C

Part No

MA05178

MS09525

MA05179

MS08568

MS07546

Vibration:

IEC 68-2-06 Test Fc

10-55Hz, 1.5mm. 55-500Hz, 10G



Standard.



Optional - Please specify required code(s) when ordering

Ordering Information

Part No, or product name + option codes + frequency

eg:

HCD300/BNDL 10.0MHz

HCD301/BMFL 5.0MHz

Option code X (eg HCD301/X) denotes a custom specification.

Tel:

+44 1460 256 100

21 Nov 2003

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
