2SK1436 datasheet, PDF - EEWORLD Datasheet

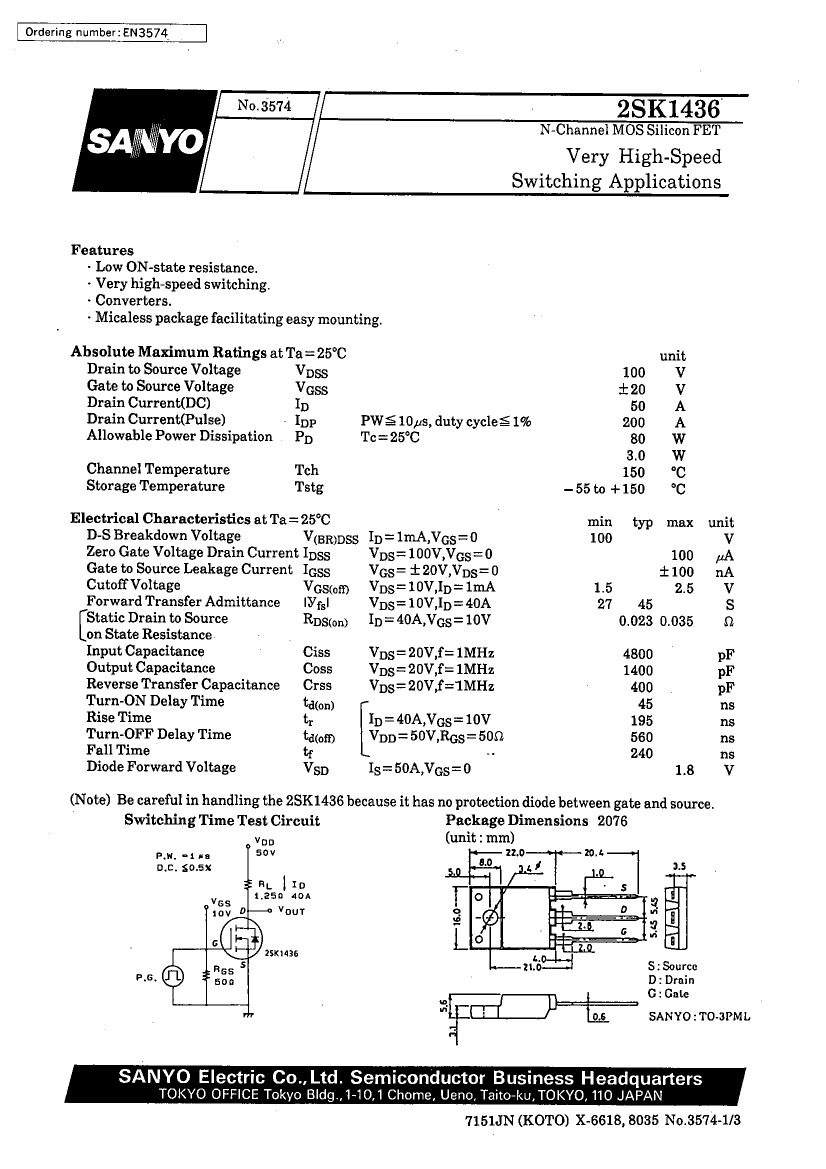

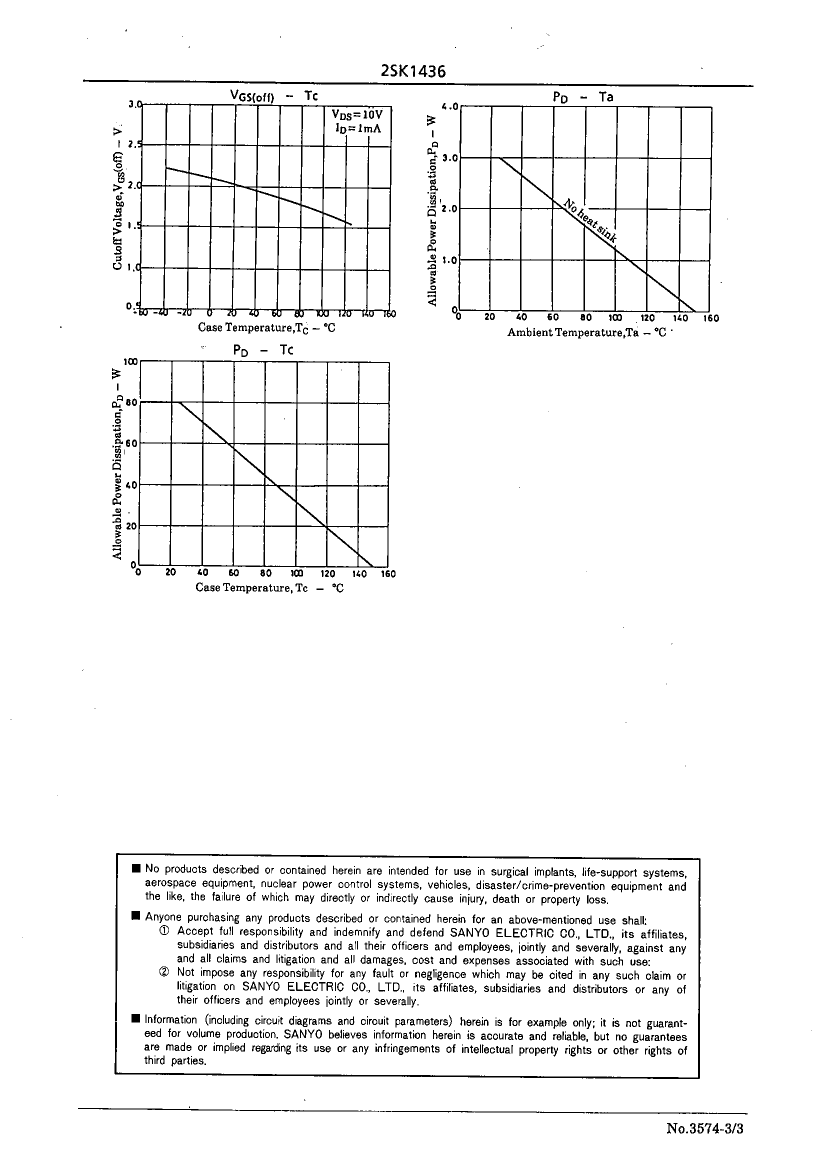

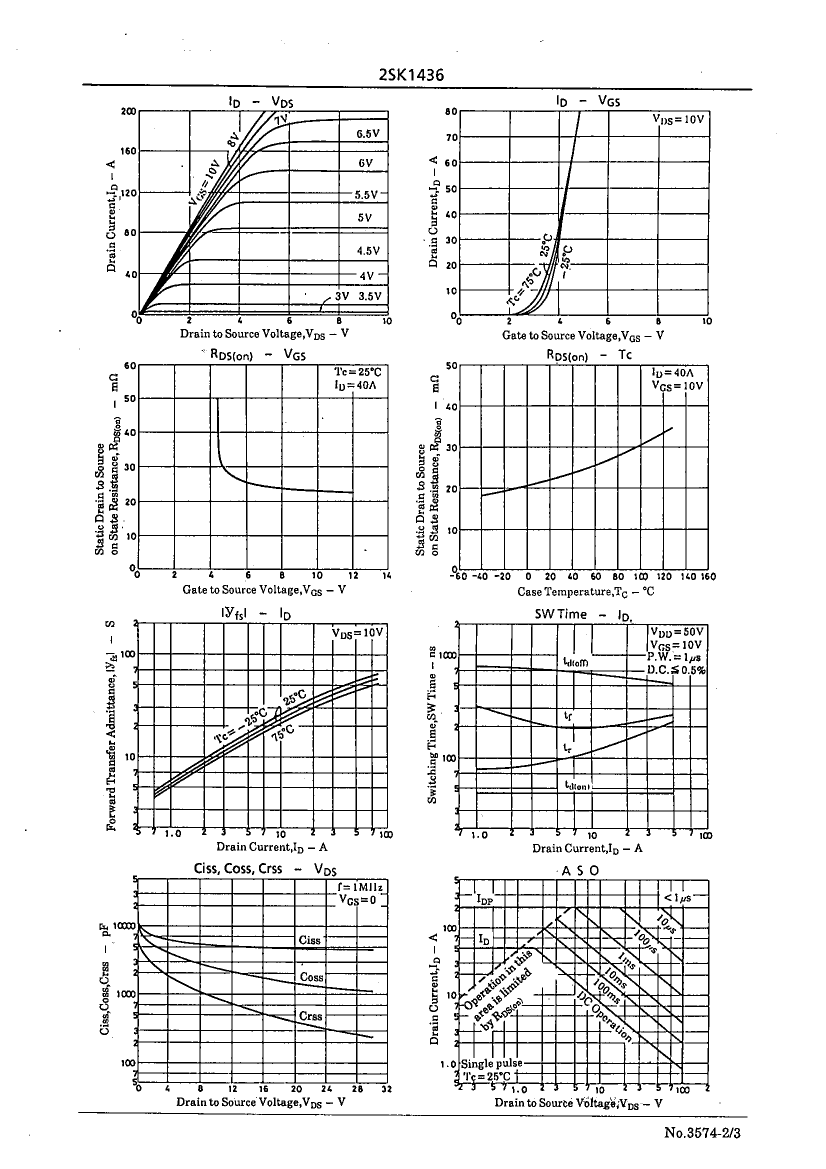

2SK1436: DescriptionPower Field-Effect Transistor, 50A I(D), 100V, 0.035ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-3PML, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size89KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

2SK1436 Overview

Power Field-Effect Transistor, 50A I(D), 100V, 0.035ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-3PML, 3 PIN

Parameter Name	Attribute value
Objectid	1482885613
Parts packaging code	TO-3PML
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (Abs) (ID)	50 A
Maximum drain current (ID)	50 A
Maximum drain-source on-resistance	0.035 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Operating mode	DEPLETION MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	80 W
Maximum power dissipation(Abs)	3 W
Maximum pulsed drain current (IDM)	200 A
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
