M80-4D12205FC-00-000-00-000 datasheet, PDF

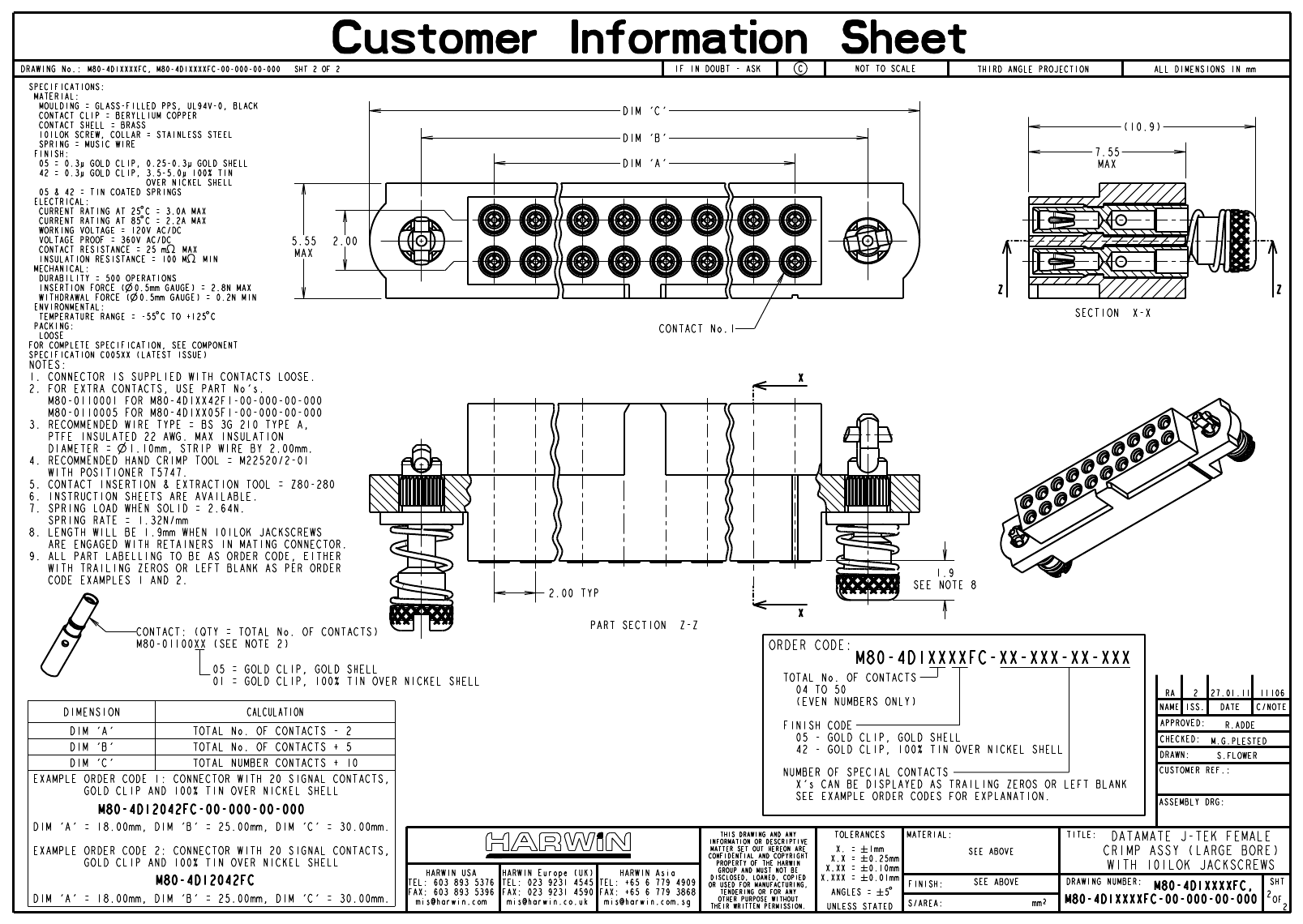

M80-4D12205FC-00-000-00-000: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size243KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M80-4D12205FC-00-000-00-000 Overview

Board Connector, 22 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.219 inch
subject depth	0.297 inch
body length	1.26 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (12)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M80-4D1
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	22
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1
