M20-9873106 datasheet, PDF - EEWORLD Datasheet

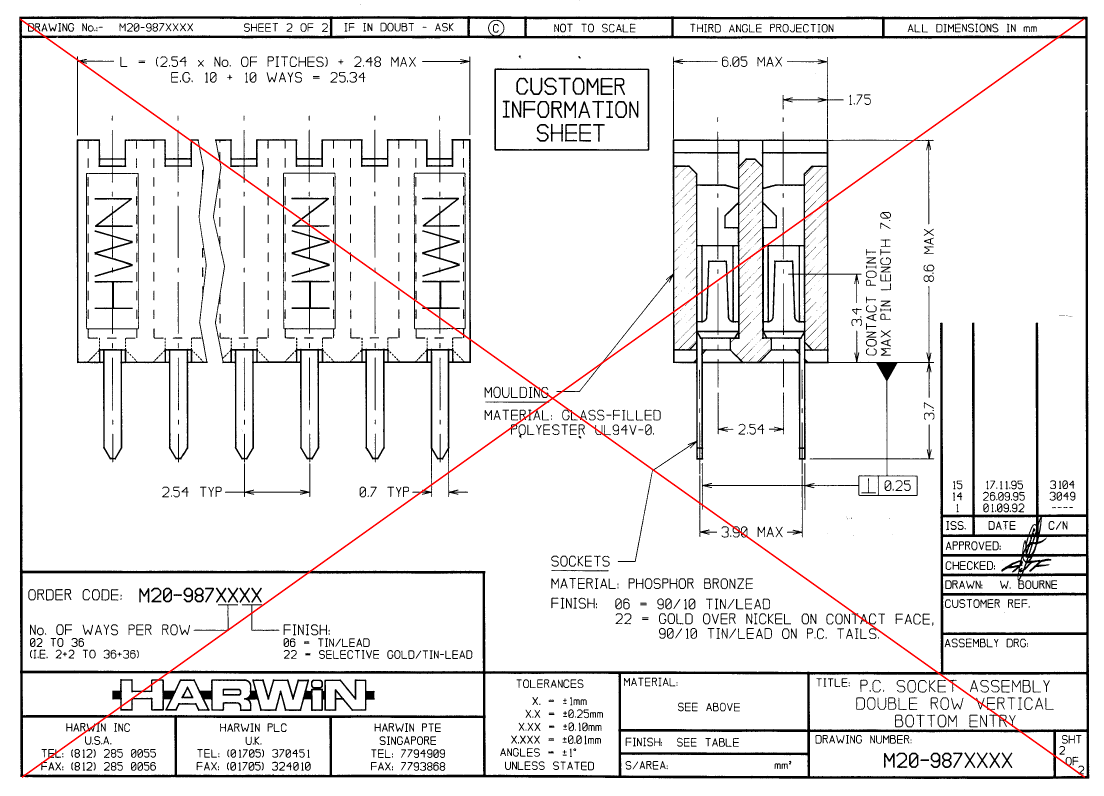

M20-9873106: DescriptionBoard Connector, 62 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket; CategoryThe connector The connector; File Size410KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M20-9873106 Overview

Board Connector, 62 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BOTTOM ENTRY
body width	0.238 inch
subject depth	0.339 inch
body length	3.13 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	LEAF
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	3.0024 N
Insulation resistance	1000000000 Ω
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	M20-987
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	62
UL Flammability Code	94V-0
Evacuation force-minimum value	.5004 N
Base Number Matches	1
