5-1499561-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-1499561-1

5-1499561-1: DescriptionPHONE CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,PIN; CategoryThe connector The connector; File Size374KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-1499561-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1499561-1	-	-	View	Buy Now

5-1499561-1 Overview

PHONE CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,PIN

5-1499561-1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.287 inch
subject depth	0.525 inch
body length	0.462 inch
Body/casing type	PLUG
Cable type	WIRE, STRANDED
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Insulation resistance	500000000 Ω
Insulator color	GRAY
insulator material	POLYCARBONATE
Manufacturer's serial number	1499561
Installation method	STRAIGHT
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Plating thickness	7u inch
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Total number of contacts	8
Maximum wire diameter	24 AWG
Minimum wire diameter	26 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

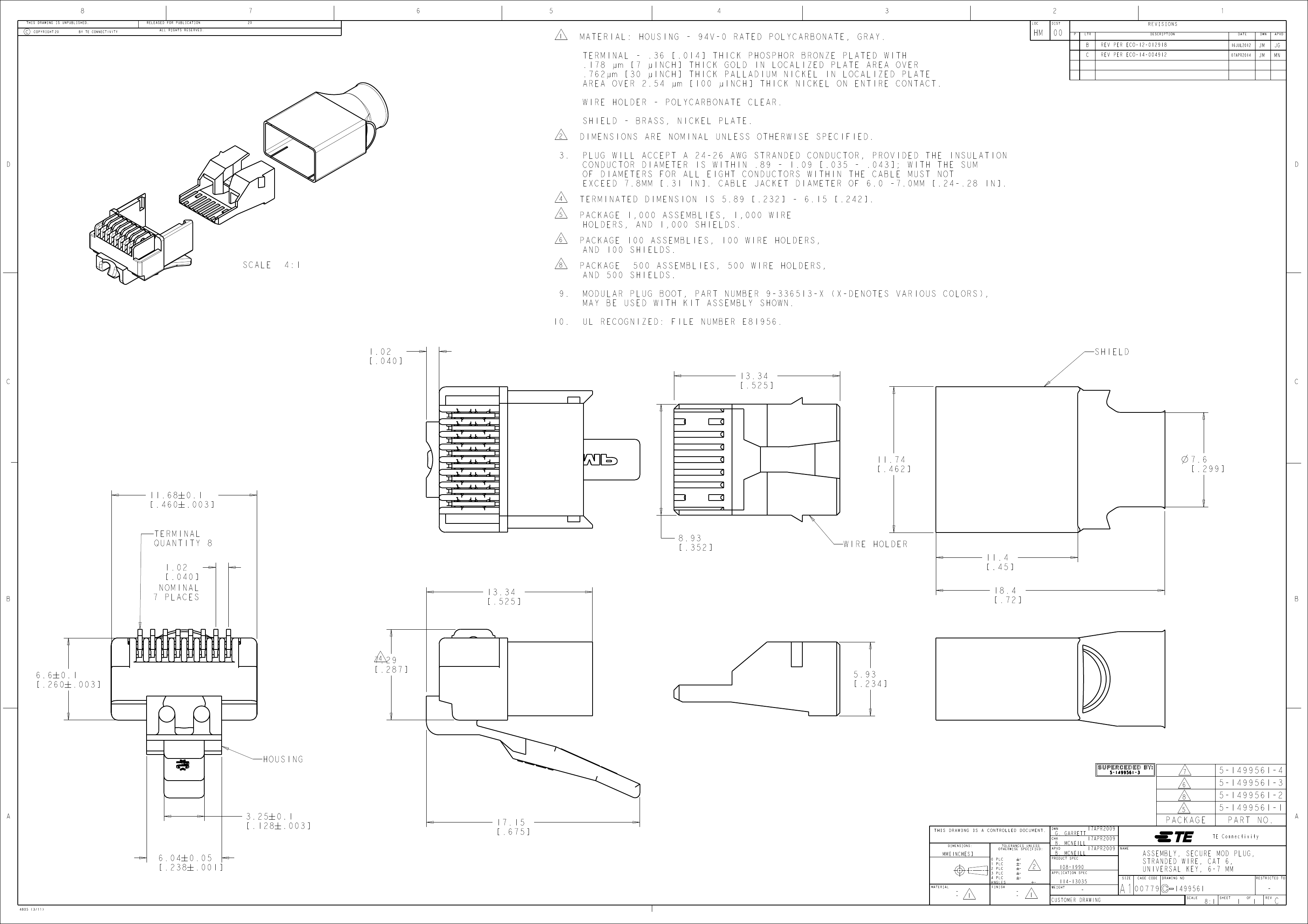

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY TE CONNECTIVITY

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

MATERIAL: HOUSING - 94V-0 RATED POLYCARBONATE, GRAY.

TERMINAL - .36 [.014] THICK PHOSPHOR BRONZE PLATED WITH

.178 µm [7 µINCH] THICK GOLD IN LOCALIZED PLATE AREA OVER

.762µm [30 µINCH] THICK PALLADIUM NICKEL IN LOCALIZED PLATE

AREA OVER 2.54 µm [100 µINCH] THICK NICKEL ON ENTIRE CONTACT.

WIRE HOLDER - POLYCARBONATE CLEAR.

SHIELD - BRASS, NICKEL PLATE.

REV PER ECO-12-012918

REV PER ECO-14-004912

16JUL2012

07APR2014

DIMENSIONS ARE NOMINAL UNLESS OTHERWISE SPECIFIED.

PLUG WILL ACCEPT A 24-26 AWG STRANDED CONDUCTOR, PROVIDED THE INSULATION

CONDUCTOR DIAMETER IS WITHIN .89 - 1.09 [.035 - .043]; WITH THE SUM

OF DIAMETERS FOR ALL EIGHT CONDUCTORS WITHIN THE CABLE MUST NOT

EXCEED 7.8MM [.31 IN]. CABLE JACKET DIAMETER OF 6.0 -7.0MM [.24-.28 IN].

TERMINATED DIMENSION IS 5.89 [.232] - 6.15 [.242].

PACKAGE 1,000 ASSEMBLIES, 1,000 WIRE

HOLDERS, AND 1,000 SHIELDS.

PACKAGE 100 ASSEMBLIES, 100 WIRE HOLDERS,

AND 100 SHIELDS.

PACKAGE 500 ASSEMBLIES, 500 WIRE HOLDERS,

AND 500 SHIELDS.

MODULAR PLUG BOOT, PART NUMBER 9-336513-X (X-DENOTES VARIOUS COLORS),

MAY BE USED WITH KIT ASSEMBLY SHOWN.

UL RECOGNIZED: FILE NUMBER E81956.

SHIELD

13.34

[ .525 ]

SCALE

4:1

10.

1.02

[ .040 ]

11.74

[ .462 ]

11.68

[ .460

0.1

.003 ]

8.93

[ .352 ]

7.6

[ .299 ]

TERMINAL

QUANTITY 8

1.02

[ .040 ]

NOMINAL

7 PLACES

WIRE HOLDER

11.4

[ .45 ]

18.4

[ .72 ]

13.34

[ .525 ]

6.6 0.1

[ .260 .003 ]

7.29

[ .287 ]

5.93

[ .234 ]

HOUSING

5-1499561-3

5-1499561-4

5-1499561-3

5-1499561-2

5-1499561-1

PART NO.

TE Connectivity

3.25 0.1

[ .128 .003 ]

6.04 0.05

[ .238 .001 ]

17.15

[ .675 ]

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

G. GARRETT

B. MCNEILL

108-1990

17APR2009

NAME

PACKAGE

MM[INCHES]

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

114-13035

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

ASSEMBLY, SECURE MOD PLUG,

STRANDED WIRE, CAT 6,

UNIVERSAL KEY, 6-7 MM

DRAWING NO

RESTRICTED TO

1499561

SCALE

4805 (3/11)

8:1

SHEET

REV
