T700N2400TOC Overview

Silicon Controlled Rectifier, 700000mA I(T), 2400V V(DRM),

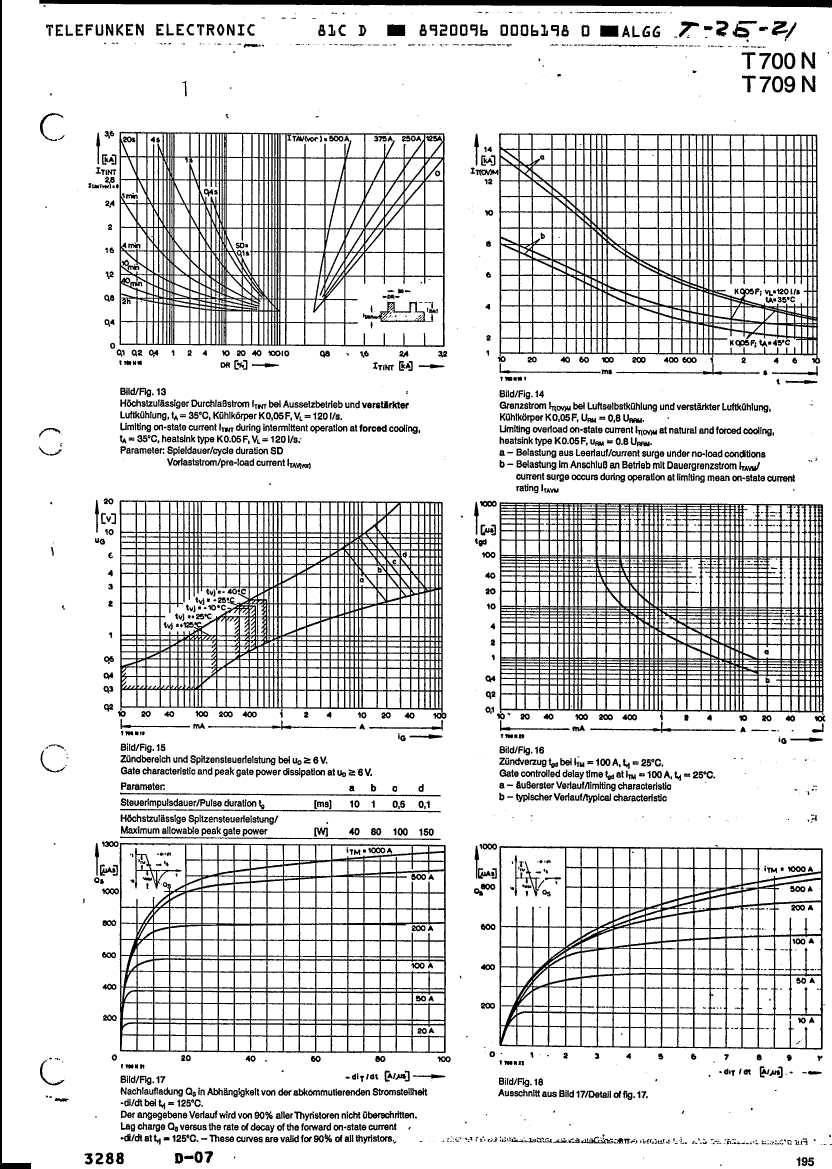

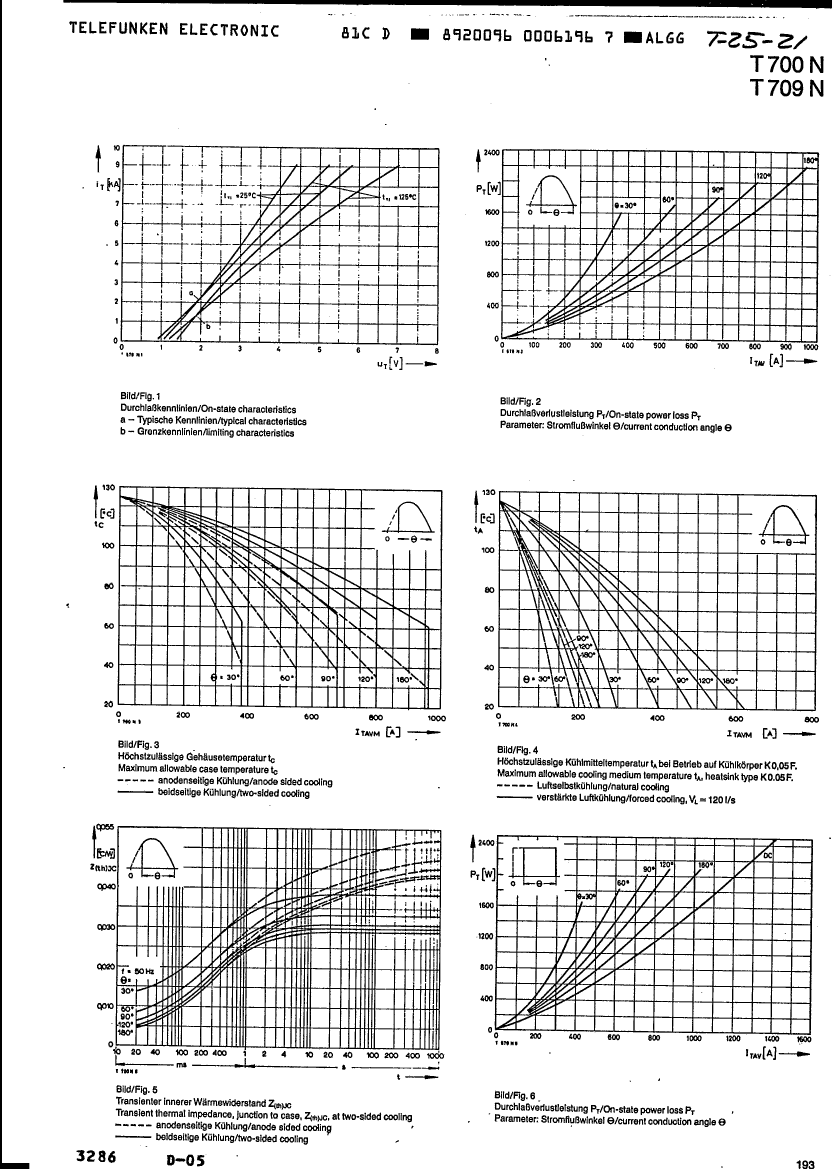

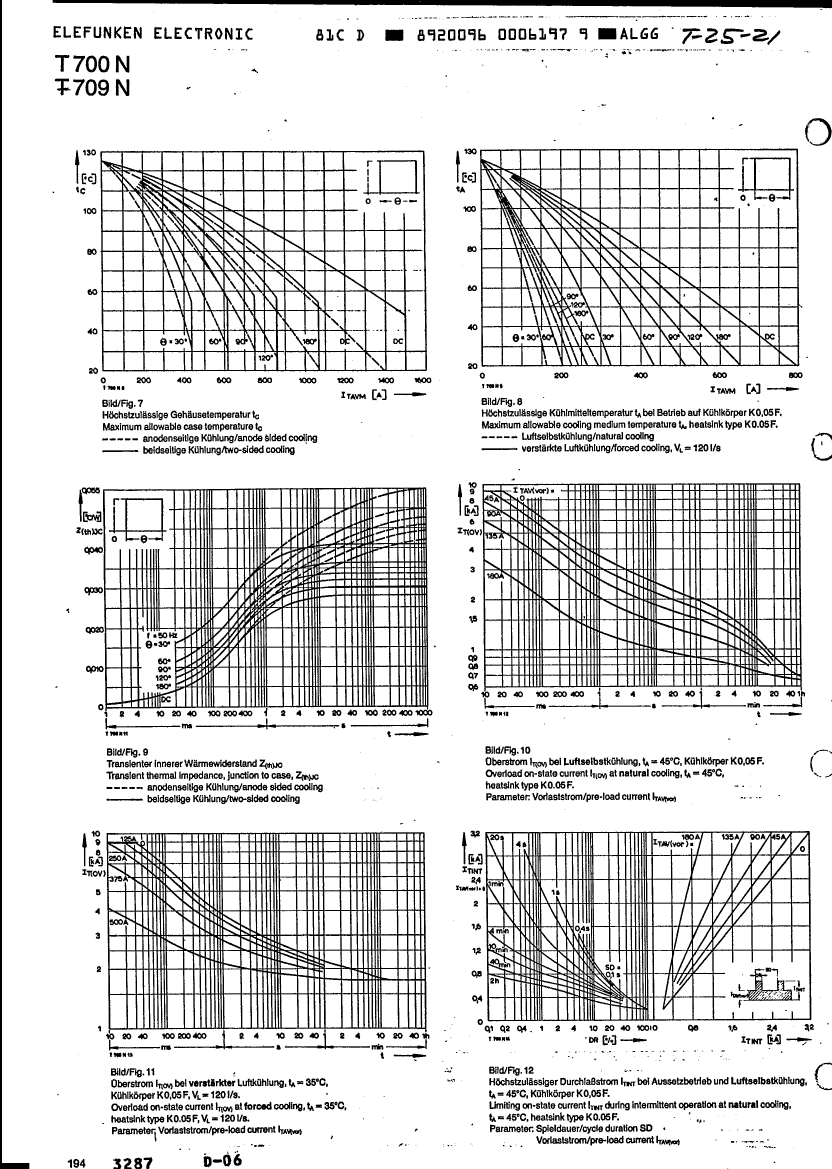

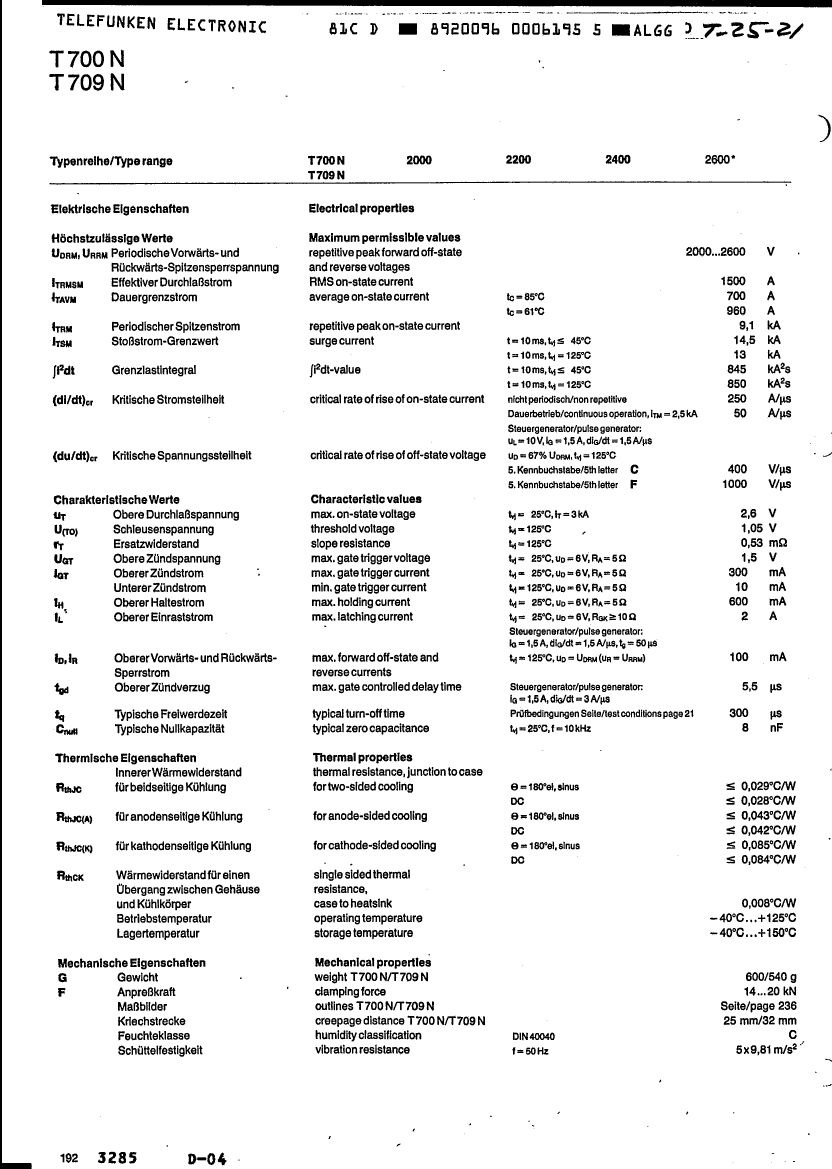

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	300 µs
Critical rise rate of minimum off-state voltage	400 V/us
Maximum DC gate trigger current	300 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	600 mA
Maximum leakage current	100 mA
On-state non-repetitive peak current	14000 A
Maximum on-state current	700000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	2400 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1
