MSS6122-153MSD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> MSS6122-153MSD

MSS6122-153MSD: DescriptionGeneral Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, 2424,; CategoryPassive components inductor; File Size280KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric View All

MSS6122-153MSD Overview

General Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, 2424,

MSS6122-153MSD Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	2424
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	2424
structure	Rectangul
core material	FERRITE
DC Resistance	0.21 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	1.85 mm
Package length	6.1 mm
Package form	SMT
Package width	6.1 mm
method of packing	TR, Embossed Plastic, 13 Inch
Maximum rated current	1.5 A
Guideline	AEC-Q200
self resonant frequency	38 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Lead - Gold - with Nickel barrie
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

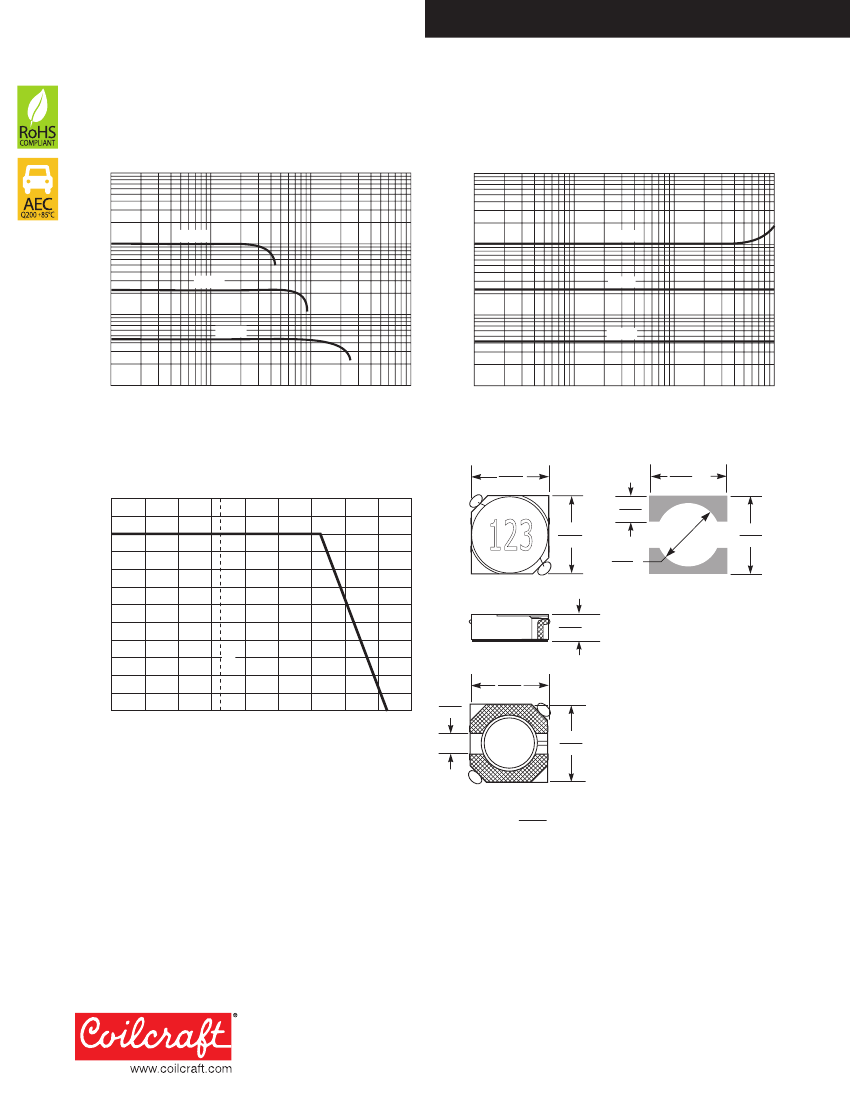

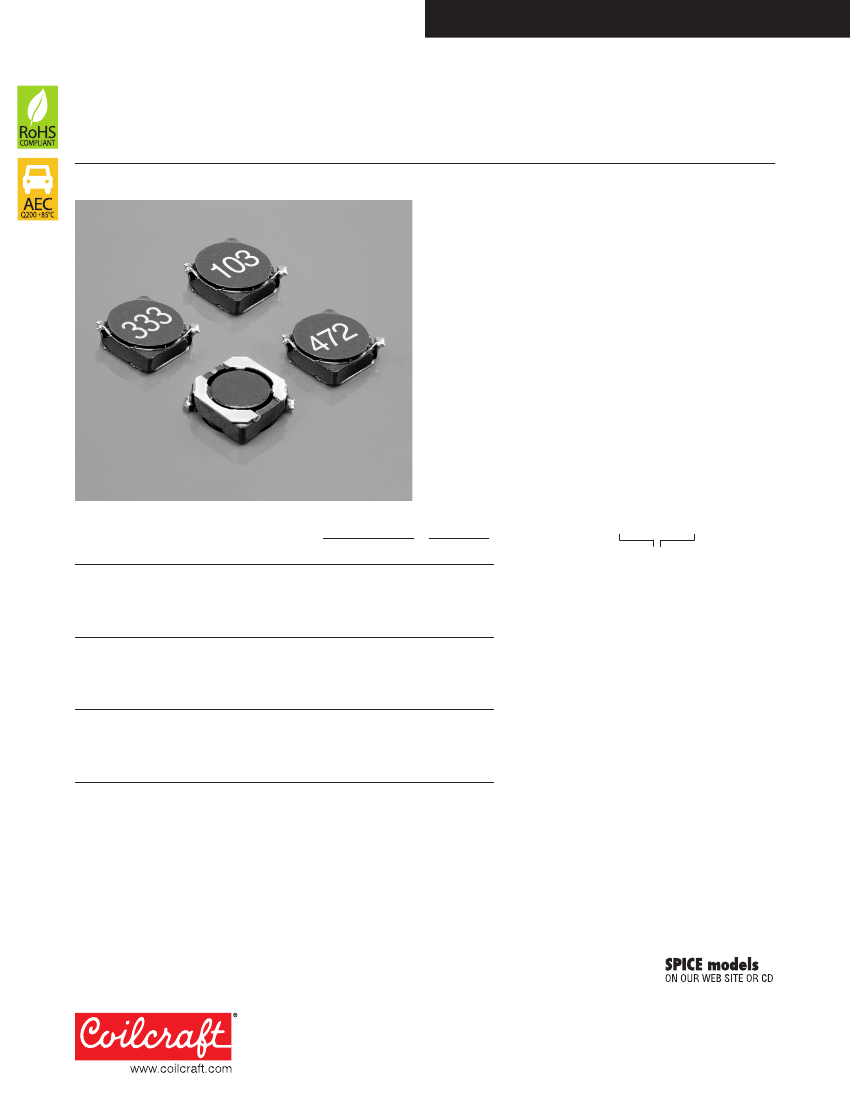

Document 640-1

Shielded Power Inductors – MSS6122

• 6.1 × 6.1 mm footprint; 2.2 mm high shielded inductors

• Low DCR and excellent current handling

Designer’s Kit C363

contains 3 of each value

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant matte tin over nickel over phos

bronze (current production) or gold over nickel over phos bronze (prior

production). Other terminations available at additional cost.

Weight

0.19 – 0.23 g

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

500/7″ reel, 1500/13″ reel; Plastic tape: 16 mm wide,

0.3 mm thick, 12 mm pocket spacing, 2.1 mm pocket depth

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

Part number

Isat

(A)

DCR SRF

Inductance

max

typ

10% 20% 30%

±20% (µH) (Ohms) (MHz) drop drop drop

0.065

0.083

0.100

0.120

0.150

0.176

0.210

0.280

0.310

0.350

0.460

0.540

0.680

0.740

1.000

1.200

1.370

65.0

60.0

48.0

44.0

42.0

40.0

38.0

35.0

32.0

26.0

22.0

19.0

18.0

17.0

16.0

15.0

12.5

1.44

1.22

1.18

1.12

0.98

0.97

0.85

0.78

0.64

0.62

0.60

0.50

0.47

0.43

0.40

0.37

0.32

1.66

1.46

1.36

1.24

1.10

1.06

0.97

0.89

0.75

0.71

0.69

0.59

0.55

0.50

0.46

0.43

0.37

1.82

1.60

1.50

1.36

1.20

1.14

1.04

0.97

0.82

0.77

0.74

0.64

0.60

0.54

0.50

0.46

0.40

Irms

(A)

20°C 40°C

rise rise

1.60

1.50

1.40

1.30

1.20

1.13

1.06

0.99

0.92

0.85

0.77

0.70

0.63

0.56

0.49

0.42

0.35

2.30

2.10

2.00

1.80

1.70

1.60

1.50

1.40

1.30

1.20

1.10

1.00

0.90

0.80

0.70

0.60

0.50

1. Please specify

termination

and

packaging

codes:

MSS6122-104MLC

Termination: L

= RoHS compliant matte tin over nickel

over phos bronze (current produc-

tion) or gold over nickel over phos

bronze (prior production)

Special order:

= RoHS tin-silver-copper

(95.5/4/0.5) over gold over nickel

over phos bronze or

= non-RoHS tin-lead (63/37) over

gold over nickel over phos bronze.

Packaging: C

7″ machine-ready reel

EIA-481

embossed plastic tape (500 per

full reel).

Less than full reel

In tape, but not

machine-ready. To have a leader and

trailer added ($25 charge), use code

letter C instead.

13″ machine-ready reel

EIA-481

embossed plastic tape. Factory order

only, not stocked (1500 per reel per

full reel).

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using

an Agilent/HP 4263B LCR meter or equivalent.

3. SRF measured using an Agilent/HP 4191A or equilvalent.

4. DC current at which the inductance drops the specified

amount from its value without current.

5. Current that causes the specified temperature rise

from 25°C ambient.

6. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components”

before soldering.

MSS6122-472ML_

4.7

MSS6122-562ML_

5.6

MSS6122-682ML_

6.8

MSS6122-822ML_

8.2

MSS6122-103ML_ 10

MSS6122-123ML_ 12

MSS6122-153ML_ 15

MSS6122-183ML_ 18

MSS6122-223ML_ 22

MSS6122-273ML_ 27

MSS6122-333ML_ 33

MSS6122-393ML_ 39

MSS6122-473ML_ 47

MSS6122-563ML_ 56

MSS6122-683ML_ 68

MSS6122-823ML_ 82

MSS6122-104ML_ 100

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 640-1

Revised 04/16/10

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
