D72L2L-33.3KHZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> D72L2L-33.3KHZ

D72L2L-33.3KHZ: DescriptionActive Filter, 1 Func, PDIP5, DIP-16/5; CategoryAnalog mixed-signal IC filter; File Size584KB，11 Pages; ManufacturerFrequency Devices

Download Datasheet Parametric Compare View All

D72L2L-33.3KHZ Overview

Active Filter, 1 Func, PDIP5, DIP-16/5

D72L2L-33.3KHZ Parametric

Parameter Name	Attribute value
package instruction	DIP, DIP5/16,.3
Reach Compliance Code	unknown
Other features	LG-MAX, WD-MAX
JESD-30 code	R-PDIP-T5
length	22.352 mm
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	5
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP5/16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum seat height	9.525 mm
Maximum supply current (Isup)	5 mA
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	11.684 mm
Base Number Matches	1

Preview

Download Datasheet

View All

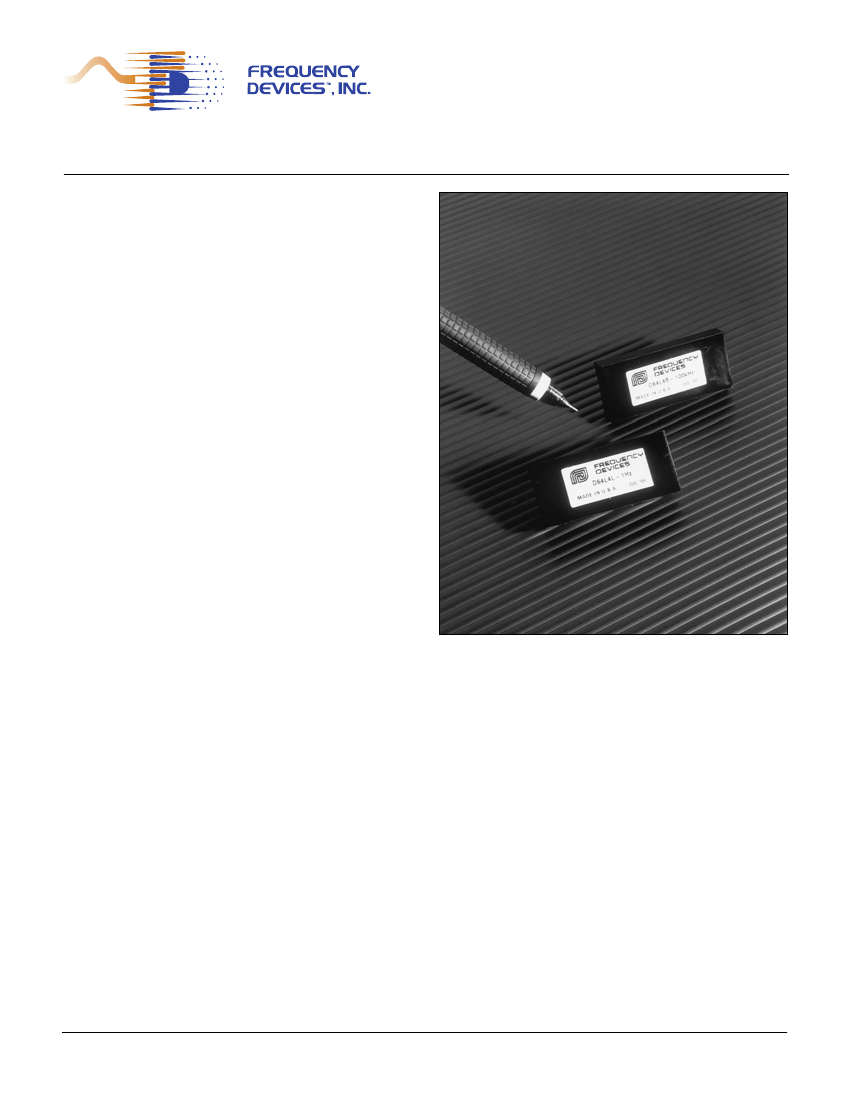

D64 & DP64 Series

1.0 Hz to 100 kHZ

Fixed Frequency

Description

The D64 and DP64 Series of small 4-pole fixed-

frequency, precision active filters provide high

performance linear active filtering in a compact 32-

pin DIP package, with a broad range of corner

frequencies and a choice of transfer functions.

Individual D64 filters can serve in low-pass or high-

pass applications (DP64, low-pass only) or be

combined to create custom band-pass or band-

reject filters. These fully self-contained units

require no external components or adjustments.

Each model comes factory tuned to a user-specified

corner frequency between 1 Hz and 100 kHz (DP64,

1 Hz to 5 kHz) and operate with low total harmonic

distortion over a wide dynamic input voltage range

from non-critical +/-5V to +/-18V power supplies.

Features/Benefits:

• Low harmonic distortion and wide signal-to-noise

ratio

• Compact 1.8"L x 0.8"W x 0.3"H minimizes board

space requirements.

• Plug-in ready-to-use, reducing engineering design

and manufacturing cycle time.

• Factory tuned, no external clocks or adjustments

needed

• Broad range of transfer characteristics and corner

frequencies to meet a wide range of applications.

Available Low-Pass Models:

. . . . . . . . . . .Page

D64L4B & DP64L4B

4-pole Butterworth . . . . . .2

D64L4L & DP64L4L

4-pole Bessel . . . . . . . . . .2

D64L4Y2 & DP64L4Y2

4-pole Cheby

(0.2 dB Ripple) . . . . . . . . .2

D64L4Y5 & DP64L4Y5

4-pole Cheby

(0.5 dB Ripple) . . . . . . . . .2

Available

D64H4B

D64H4Y2

D64H4Y5

High-Pass Models:

4-pole Butterworth . . . . . . . . . . . . . . . .3

4-pole Cheby (0.2 dB Ripple) . . . . . . . .3

4-pole Cheby (0.5 dB Ripple) . . . . . . . .3

32-Pin DIP

4 - Pole Filters

Applications

• Anti-alias filtering

• Data acquisition systems

• Communication systems and electronics

• Medical electronics equipment and research

• Aerospace, navigation and sonar applications

• Sound and vibration testing

• Acoustic and vibration analysis and control

• Noise elimination

• Signal reconstruction

General Specifications:

Pin-out/package data & ordering information . . . .4

25 Locust St, Haverhill, Massachusetts 01830 • Tel: 800/252-7074, 978/374-0761 • FAX: 978/521-1839

e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com

D72L2L-33.3KHZ Related Products

	D72L2L-33.3KHZ	D72L2L-849HZ
Description	Active Filter, 1 Func, PDIP5, DIP-16/5	Active Filter, 1 Func, PDIP5, DIP-16/5
package instruction	DIP, DIP5/16,.3	DIP, DIP5/16,.3
Reach Compliance Code	unknown	unknown
Other features	LG-MAX, WD-MAX	LG-MAX, WD-MAX
JESD-30 code	R-PDIP-T5	R-PDIP-T5
length	22.352 mm	22.352 mm
Maximum negative supply voltage (Vsup)	-18 V	-18 V
Negative supply voltage minimum (Vsup)	-5 V	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	5	5
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP5/16,.3	DIP5/16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Maximum seat height	9.525 mm	9.525 mm
Maximum supply current (Isup)	5 mA	5 mA
Maximum supply voltage (Vsup)	18 V	18 V
Minimum supply voltage (Vsup)	5 V	5 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	11.684 mm	11.684 mm
Base Number Matches	1	1
