SA1458N amplifier basic information:
SA1458N is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP8,.3
SA1458N amplifier core information:
The minimum operating temperature of the SA1458N is -40 °C and the maximum operating temperature is 85 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.5 µA Its maximum average bias current is 1.5 µA

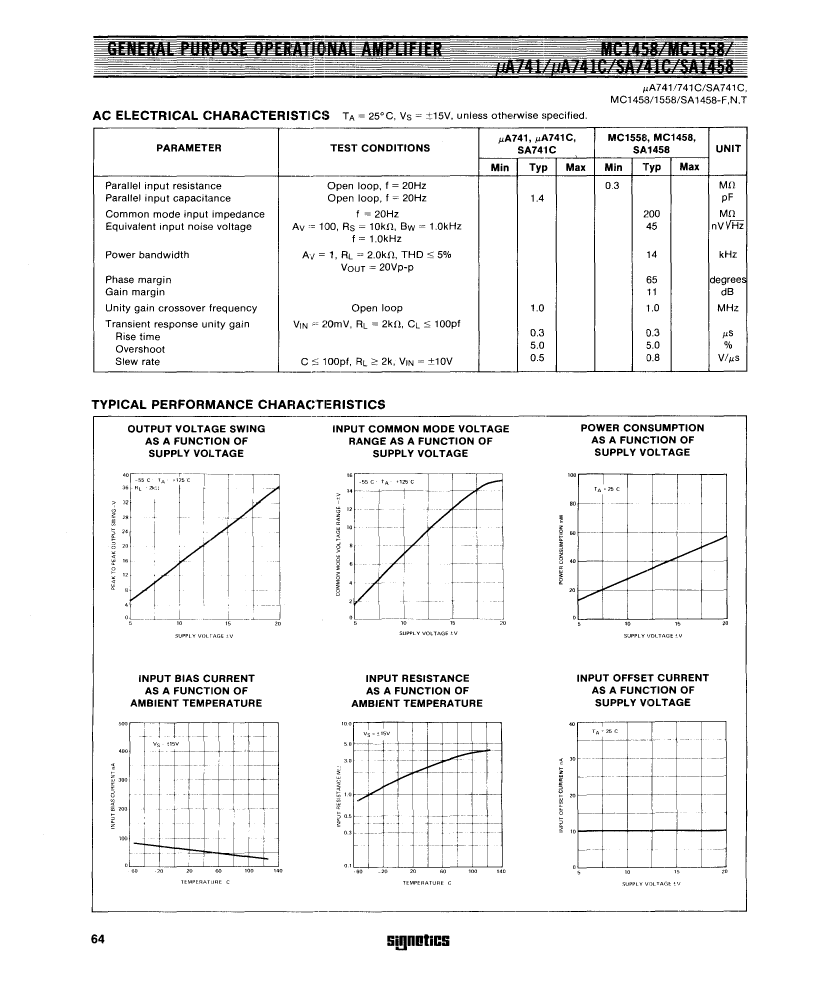

How to simply check the efficiency of an amplifier? Looking at its slew rate, the SA1458N has a nominal slew rate of 0.8 V/us. The maximum slew rate of SA1458N given by the manufacturer is 5.6 mA. Its minimum voltage gain is 15000. When the op amp is used in a closed loop, at a specified closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the gain of the SA1458N becomes 0.707 times the low-frequency gain is 1000 kHz.
The nominal supply voltage of the SA1458N is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the SA1458N is 7500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

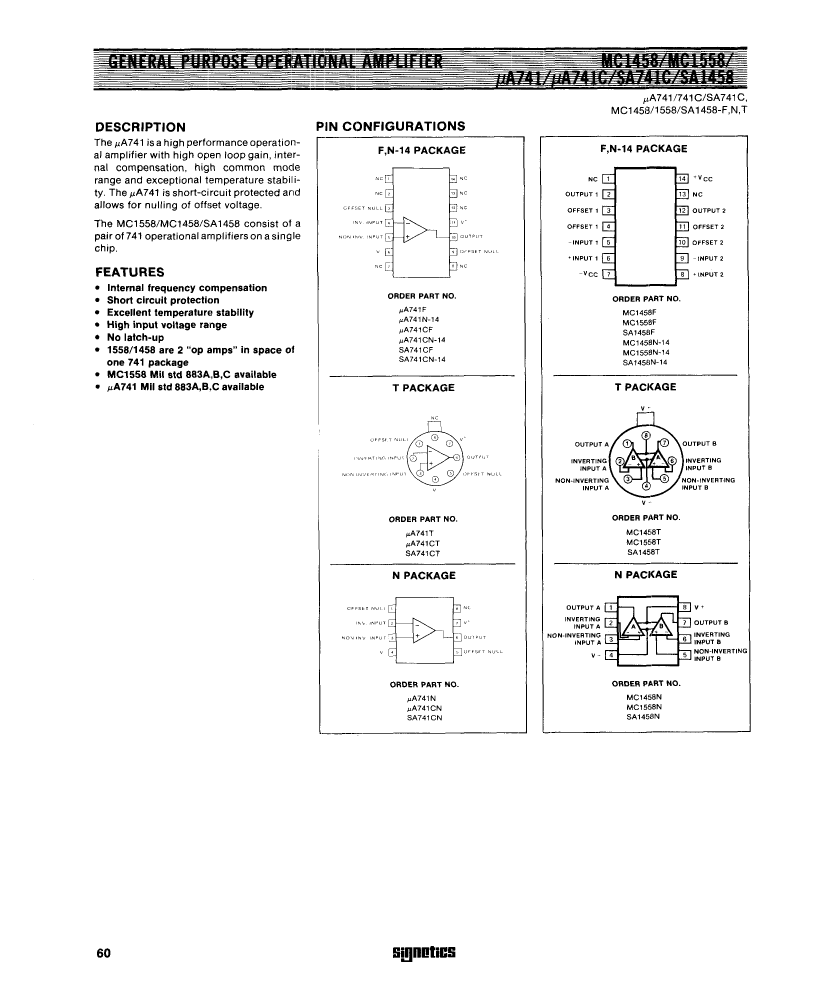

Related dimensions of SA1458N:
SA1458N has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
SA1458N amplifier additional information:

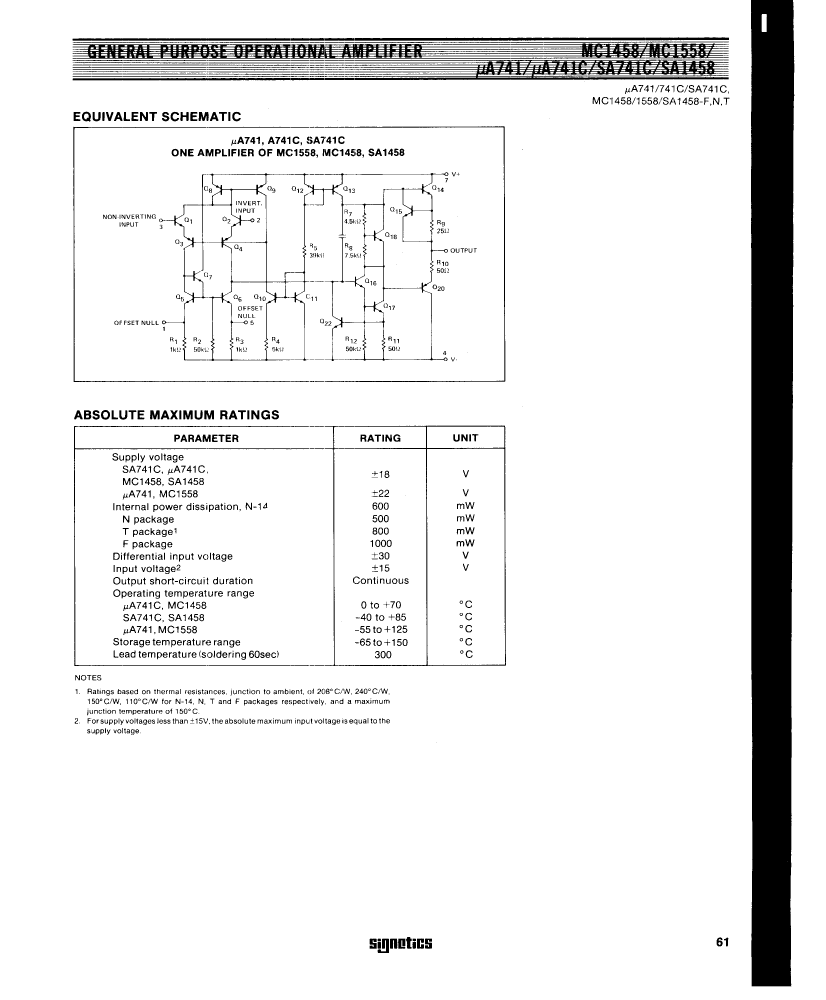

SA1458N adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of SA1458N is: YES. Its temperature grade is: INDUSTRIAL. SA1458N is not Rohs certified.
The corresponding JESD-30 code is: R-PDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of SA1458N is: DIP. The materials used in the SA1458N package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The SA1458N package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.
SA1458N amplifier basic information:
SA1458N is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP8,.3
SA1458N amplifier core information:
The minimum operating temperature of the SA1458N is -40 °C and the maximum operating temperature is 85 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.5 µA Its maximum average bias current is 1.5 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the SA1458N has a nominal slew rate of 0.8 V/us. The maximum slew rate of SA1458N given by the manufacturer is 5.6 mA. Its minimum voltage gain is 15000. When the op amp is used in a closed loop, at a specified closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the gain of the SA1458N becomes 0.707 times the low-frequency gain is 1000 kHz.
The nominal supply voltage of the SA1458N is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the SA1458N is 7500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of SA1458N:
SA1458N has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
SA1458N amplifier additional information:
SA1458N adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of SA1458N is: YES. Its temperature grade is: INDUSTRIAL. SA1458N is not Rohs certified.
The corresponding JESD-30 code is: R-PDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of SA1458N is: DIP. The materials used in the SA1458N package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The SA1458N package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

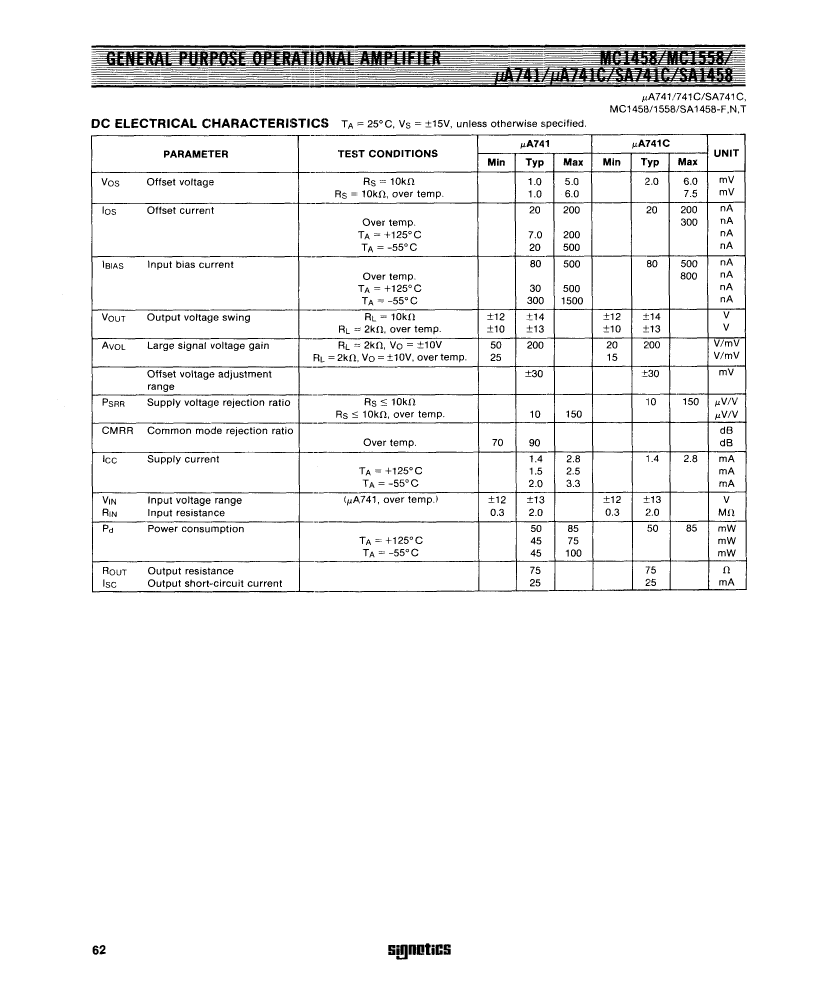

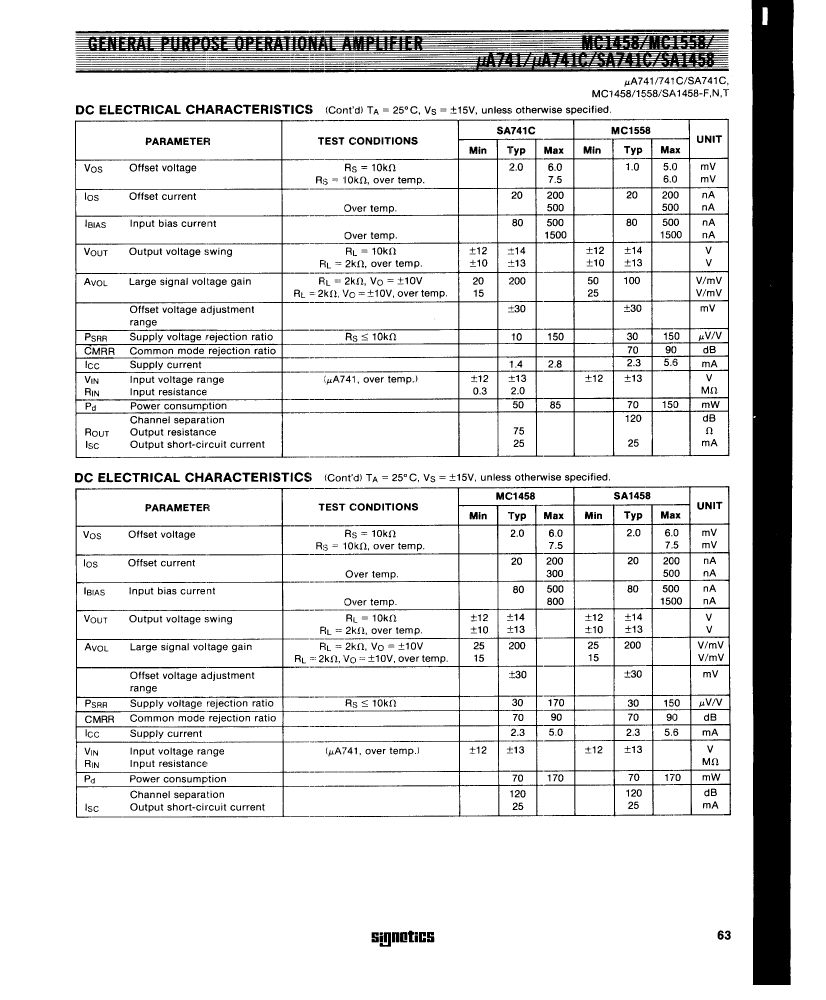

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | DIP, DIP8,.3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 1.5 µA |
| Maximum bias current (IIB) at 25C | 0.5 µA |
| Nominal Common Mode Rejection Ratio | 70 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 7500 µV |
| JESD-30 code | R-PDIP-T8 |
| JESD-609 code | e0 |
| low-dissonance | NO |
| Negative supply voltage upper limit | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 2 |
| Number of terminals | 8 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP8,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Nominal slew rate | 0.8 V/us |
| Maximum slew rate | 5.6 mA |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 1000 kHz |
| Minimum voltage gain | 15000 |
| Base Number Matches | 1 |
