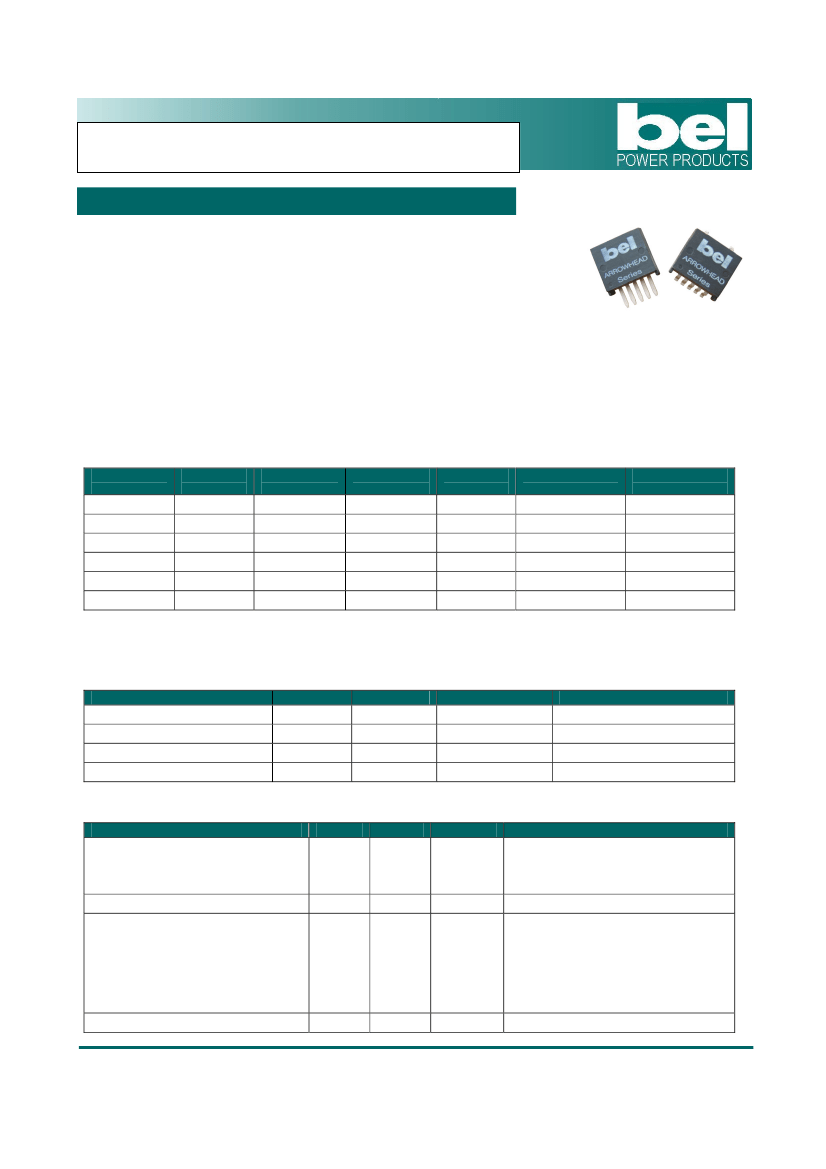

NON-ISOLATED DC/DC CONVERTERS

3.0V-5.5V Input

1.0V-3.3V/12A Output

x7AH-12Fxx0 Series

•

Non-Isolated

Fixed frequency (300kHz)

Low profile package (7.82mm)

Under-voltage lockout (UVLO)

•

OCP/SCP

Trim function (Option)

Remote On/Off

Remote Sense (SMD module)

Description

The Bel x7AH-12Fxx0 series are part of the low cost non-isolated DC/DC converter series. These converters are

available in a range of output voltages from 1.0V to 3.3V. It is packaged in a compact, overmolded package

rated at 12A. The output is closely regulated and the efficiency of 3.3V output module is typically 93% at full load.

Typical features include remote on/off, input under voltage lockout, over current protection and short circuit

protection.

Part Selection

Output

Voltage

3.3V

2.5V

1.8V

1.5V

1.2V

1.0V

Input

Voltage

4.5V – 5.5V

3.6V – 5.5V

3.0V – 5.5V

Max. Output

Current

12A

Max. Output

Power

39.6W

30.0W

21.6W

18.0W

14.4W

12.0W

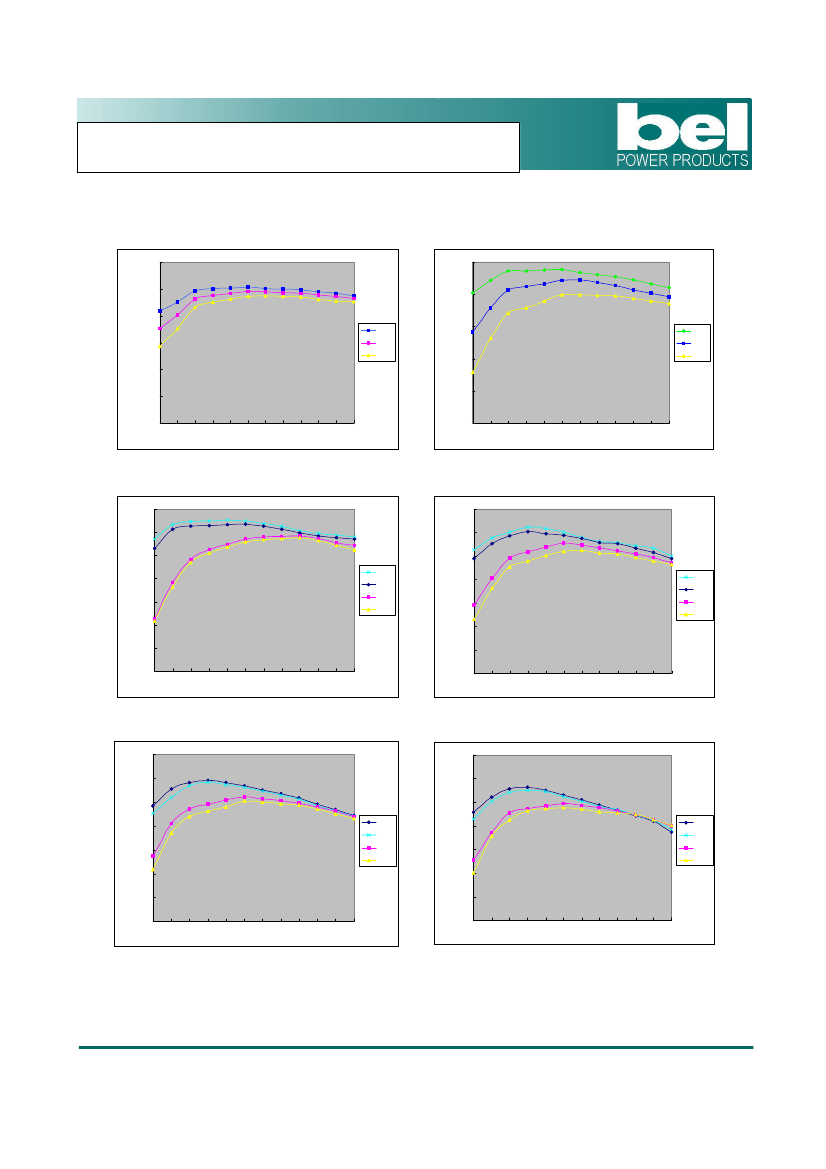

Typical

Efficiency

93%

89%

87%

84%

82%

80%

Part Number

Surface Mount

S7AH-12F330

S7AH-12F250

S7AH-12F180

S7AH-12F150

S7AH-12F120

S7AH-12F100

Part Number

Vertical Mount

V7AH-12F330

V7AH-12F250

V7AH-12F180

V7AH-12F150

V7AH-12F120

V7AH-12F100

Note:

Add “0” suffix at the end of the model number to indicate “Tube Packaging”, and “R” for “Reel

Packaging”, and “G” for “Tray Packaging”.

Absolute Maximum Ratings

Parameter

Input Voltage (continuous)

Output Enable Terminal Voltage

Ambient Temperature

Storage Temperature

Min

-0.3V

-40°C

-55°C

Typ

Max

85°C

125°C

Notes

Input Specifications

Parameter

Input Voltage

=3.3V

=2.5V

=1.8-1.0V

Input Current (no load)

Input Current (full load)

=3.3V

=2.5V

=1.8V

=1.5V

=1.2V

=1.0V

Remote Off Input Current

4.5V

3.6V

3.0V

120mA

2mA

5.5V

200mA

11A

10.5A

9.0A

8.1A

6.5A

5.2A

5mA

Min

Typ

Max

Notes

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302

•

Tel 201-432-0463

•

Fax 201-432-9542

•

www.belfuse.com
