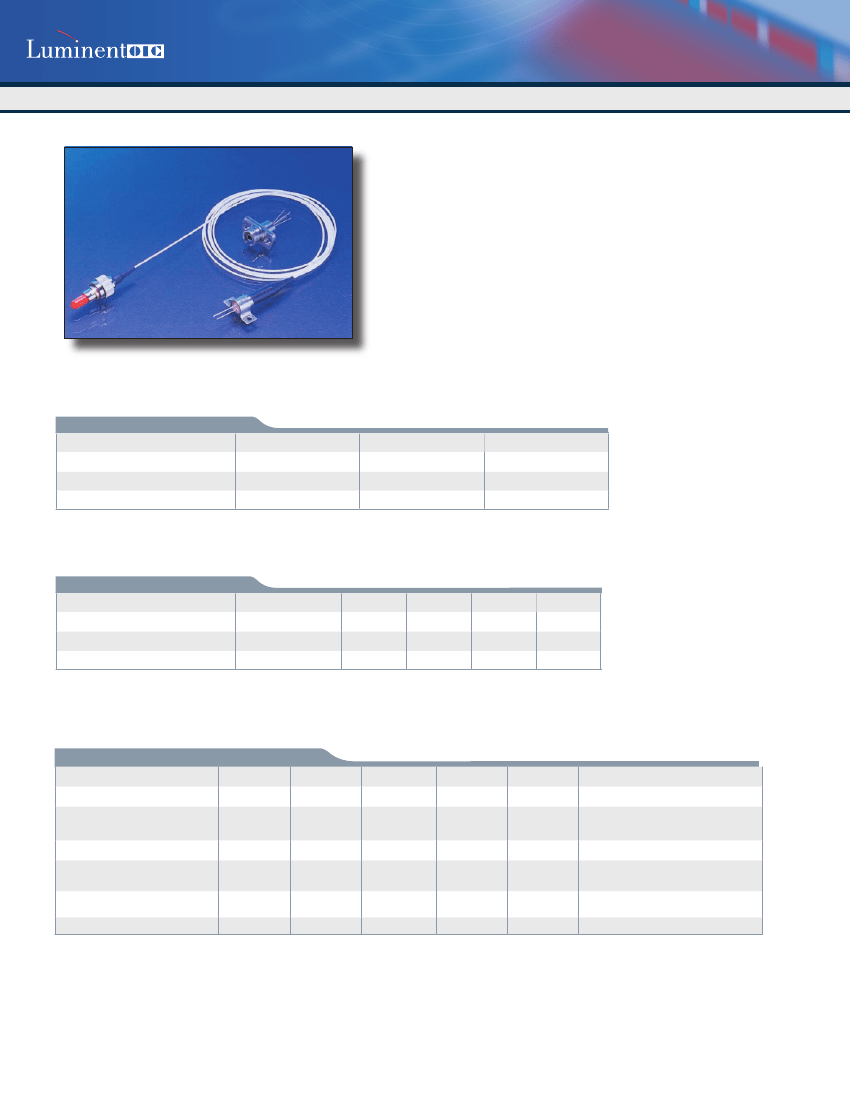

PIN-TIA Receiver Modules (5V)
T-11-1250-X-XXX-X-XX
Features
• InGaAs/InP PIN Photodiode with transimpedance amplifier
• High sensitivity with AGC*
• Differential ended output
• Single+5V operation
• -40~85
º
C operating temperature
• FC/ST/SC Receptacle package
• SM/MM fiber pigtailed with optional FC/ST/SC/LC connector
• 1.25Gbps SDH/SONET/ATM receivers
• RoHS Compliant available
Absolute Maximum Ratings (Tc=25ºC)
Parameter
Supply Voltage
Operating Temperature
Storage Temperature
Symbol
V
CC
T
opr
T
stg
Value
6
-40 ~ 85
-40 ~ 85
Unit
V
ºC
ºC
DC Electrical Characteristics (Tc=25ºC)
Parameter
Power Supply
Differential Ouptput Voltage
Supply Current (no load)
Symbol
V
CC
V
d
I
cc
Min.
4.5
185
-
Typ.
5
250
26
Max.
5.5
415
50
Unit
V
mV
mA
(Operating at VCC=5V,Tc=25ºC,
λ=1310nm,
9/125µm SM & 50/125µm MM fiber)
AC/Optical and Electrical Characteristics (Tc=25ºC)
Parameter
Detection Range
Gain@10Mbps Differential
Bandwidth (to -3dB point)
Saturation Power
Sensitivity
Output Resistance
Symbol
G
BW
P
sat
Sens.
Rout
Min
1100
1.92
700
-3
-
40
Typ
1310
2.5
920
0
-26
50
Max
1650
3.4
1100
-
-23
62
Unit
nm
V/mW
MHz
dBm
dBm
ohm
Test Conditions
Measure differentially with 30uAp-p
signal
BER<10
-12
@1.25Gbps, PRBS2
7
-1
Er=10dB
-12
BER<10 @1.25Gbps, PRBS2
7
-1
Er=10dB
Note: 1.Pin assignment can be customized.
2.Specifications subject to change without
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS546-MAR0106
rev. A.1
1
PIN-TIA Receiver Modules (5V)
T-11-1250-X-XXX-X-XX

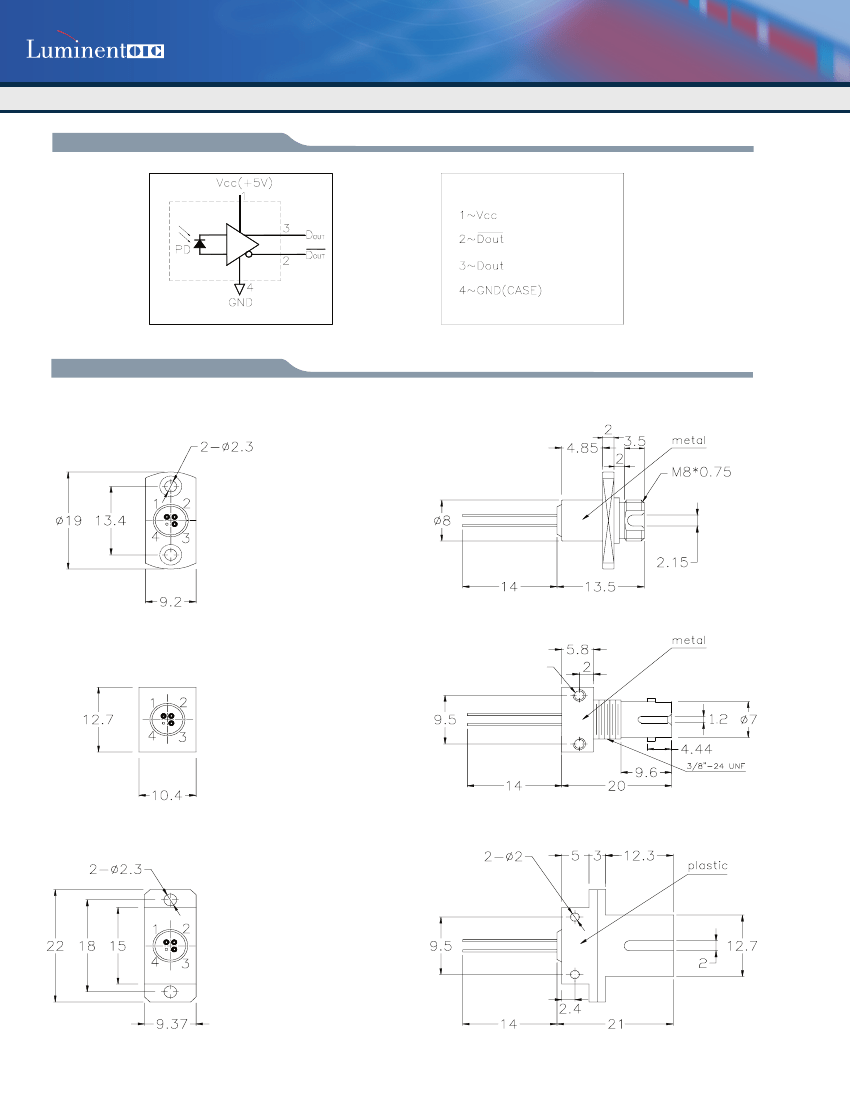

Pin Assignment
Pin Assignment
Functional Schematic
Packaging Dimension
Units in mm.

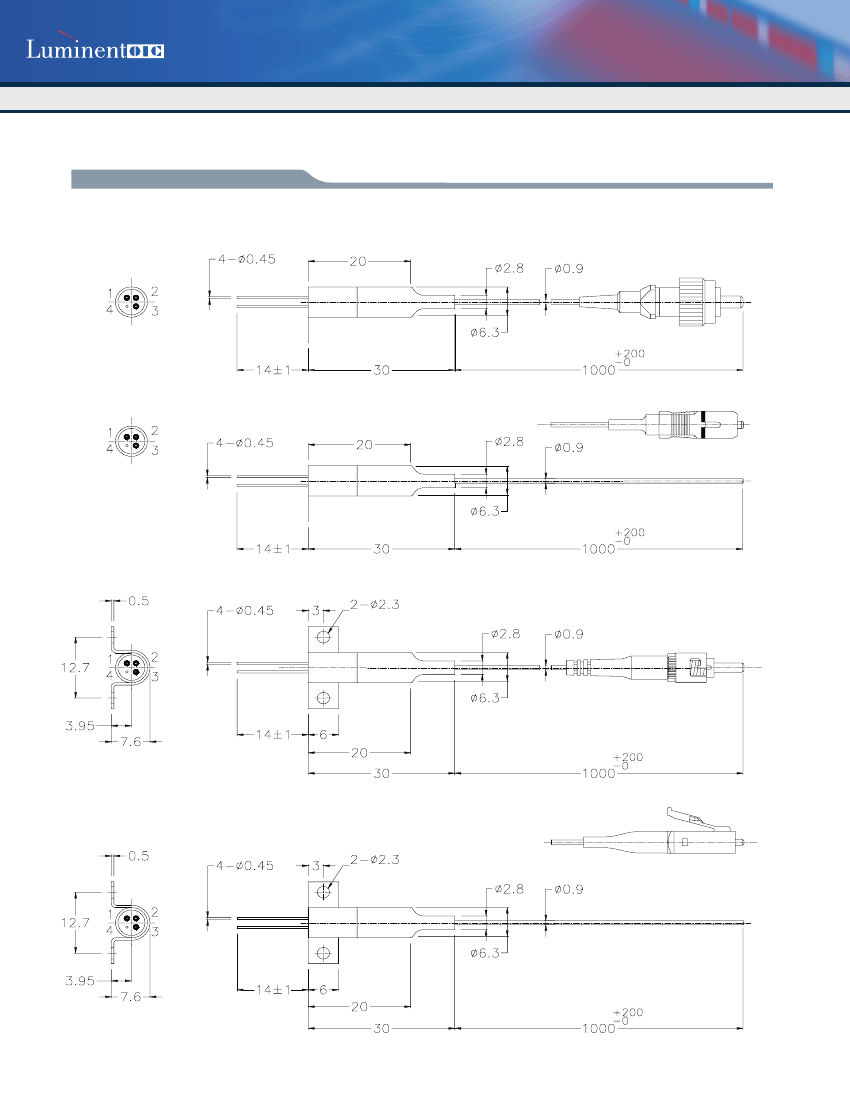

PIN-TIA Receiver Module-receptacle
Part Number: T-11-1250-R-XXX-XX
½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS546-MAR0106
rev. A.1
2
PIN-TIA Receiver Modules (5V)
T-11-1250-X-XXX-X-XX
Ordering Information
T-11-1250-X-XXX-X-XX
Package
P=Pigtail
R=Receptacle
FC/ST/SC/LC/-
Connector
"O" : O Type flange
" - " : No flange
Flange
S= 9/125µm
M= 50/125µm
Fiber Application
-/G5/GR
Blank = RoHS non-compliant product
G5 = RoHS 5/6-compliant product (lead exemption)
GR = Full RoHS compliant product (no exemption)
RoHS Compliant
Warnings
