IR2213STR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> IR2213STR

IR2213STR: DescriptionHalf Bridge Based MOSFET Driver, 2.5A, CMOS, PDSO16, MS-013AA, SOIC-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size1MB，18 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

IR2213STR Overview

Half Bridge Based MOSFET Driver, 2.5A, CMOS, PDSO16, MS-013AA, SOIC-16

IR2213STR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP16,.4
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
high side driver	YES
Interface integrated circuit type	HALF BRIDGE BASED MOSFET DRIVER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.3 mm
Number of functions	1
Number of terminals	16
Nominal output peak current	2.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	245
power supply	15 V
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage	20 V
Minimum supply voltage	12 V
Nominal supply voltage	15 V
Supply voltage 1-max	1220 V
Mains voltage 1-minute	7 V
surface mount	YES
technology	CMOS
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

IR2213(S)PBF

High and Low Side Driver

Features



Floating channel designed for bootstrap operation

Fully operational to +1200 V

Tolerant to negative transient voltage

dV/dt immune

Gate drive supply range from 12 V to 20 V

Undervoltage lockout for both channels

3.3 V logic compatible

Separate logic supply range from 3.3 V to 20 V

Logic and power ground ±5 V offset

CMOS Schmitt-triggered inputs with pull-down

Cycle by cycle edge-triggered shutdown logic

Matched propagation delay for both channels

Outputs in phase with inputs

Product Summary

OFFSET

(max)

O+/-

OUT

on/off

(typical)

Delay Matching

1200 V

1.7 A / 2 A

12 V – 20 V

280 ns / 225 ns

30 ns

Description

The IR2213(S) is a high voltage, high speed power

MOSFET and IGBT driver with independent high and low

side referenced output channels. Proprietary HVIC and

latch immune CMOS technologies enable ruggedized

monolithic construction. Logic inputs are compatible with

standard CMOS or LSTTL outputs, down to 3.3 V logic.

The output drivers feature a high pulse current buffer stage

designed

for

minimum

driver

cross-conduction.

Propagation delays are matched to simplify use in high

frequency applications. The floating channel can be used

to drive an N-channel power MOSFET or IGBT in the high

side configuration which operates up to 1200 V.

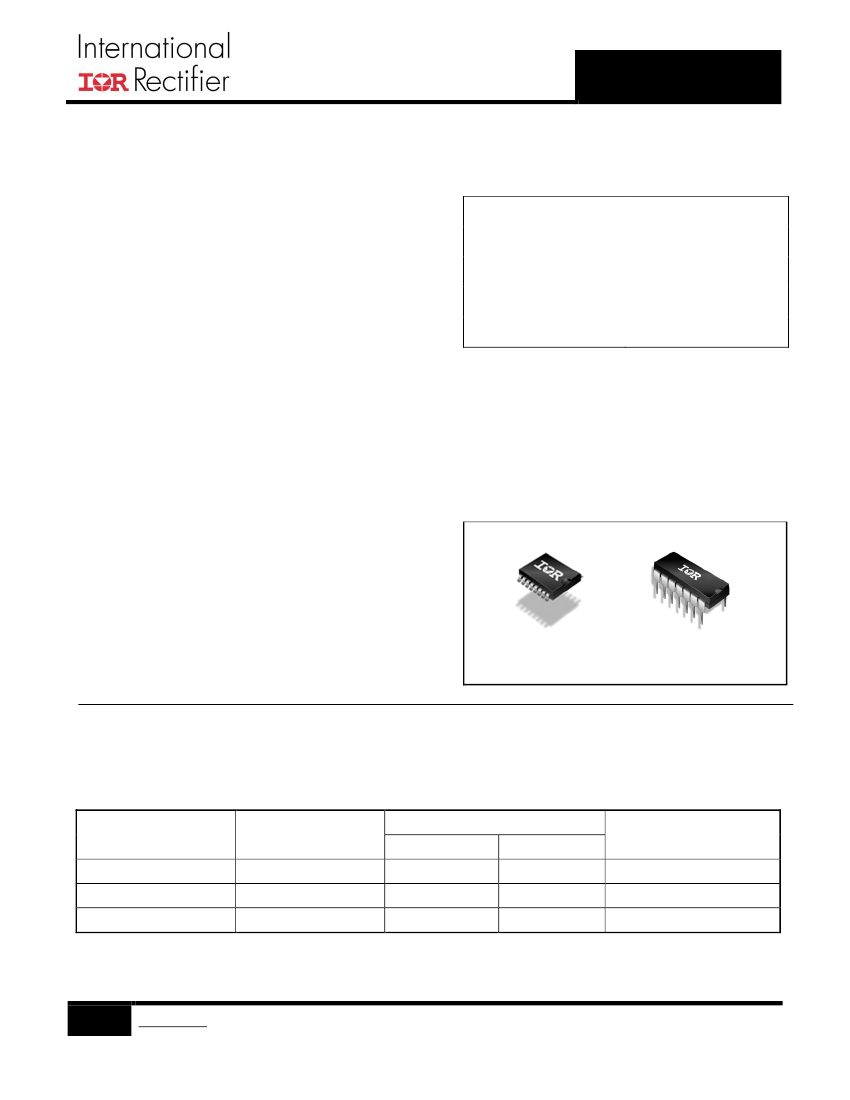

Package Options

16 Lead SOIC

(Wide Body)

14 Lead PDIP

Ordering Information

Base Part Number

IR2213SPBF

IR2213PBF

Standard Pack

Package Type

SO16WB

PDIP14

Form

Tube

Tape and Reel

Tube

Quantity

1000

Orderable Part Number

IR2213SPBF

IR2213STRPBF

IR2213PBF

www.irf.com

April 26, 2016
