BRS-02-LPG1-22-A-GD-SMCP

Description
Board Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug
CategoryThe connector    The connector
File Size104KB，1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric Compare View All

BRS-02-LPG1-22-A-GD-SMCP Overview

Board Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug

BRS-02-LPG1-22-A-GD-SMCP Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT
body width0.165 inch
subject depth0.11 inch
body length0.878 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability500 Cycles
Insulation resistance5000000000 Ω
Manufacturer's serial numberBRS
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing5.3594 mm
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.0066 mm
Termination typeSURFACE MOUNT
Total number of contacts22
Base Number Matches1

Preview

Download Datasheet
1
2
3
4
5
6
7
8
9
A
B

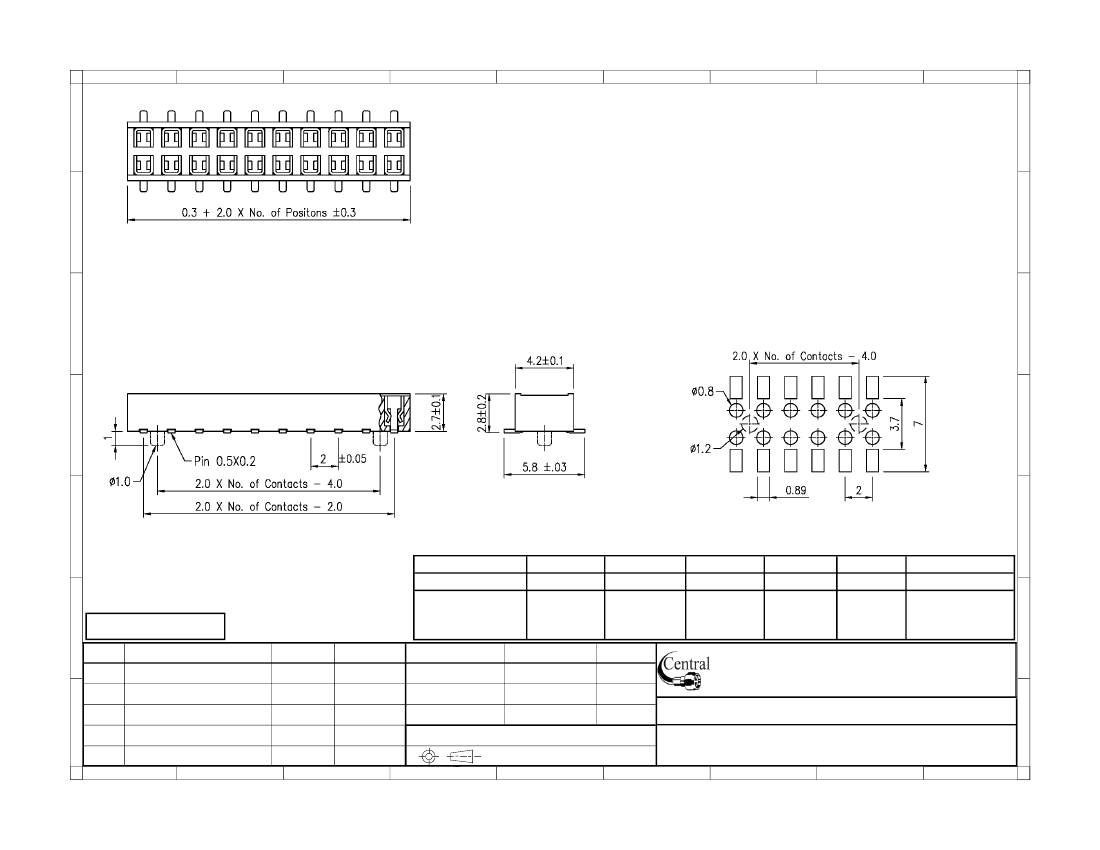

SPECIFICATIONS
Current rating:
Contact material:
Contact plating:
Contact resistance:
Insulation material:
Insulation resistance:
Withstanding:
Operating temperature:
2 amps
Phosphor bronze
Tin, gold, duplex
20 milliohms max.
Polyester Nylon 6T, UL94V-0
5,000 megohms min.
500VAC for 1 min.
-40°C to +105°C
A
B
C
Recommended
PC Board Layout
C
D
D
E
E
F
RoHS compliant
Rev.
Description
Date
Approved
Series
No. of Rows
Profile
Contacts
Tail
Plating
Options
BRS
XX
LPG1
XX
A
XX
XX
2mm female header 01=1 row
LPG1=2.7mm 2-80 contacts A=Standard TN=Tin
SM=Surface mount
02=2 rows
GD=Gold
CP=Centering pin
SG=Duplex
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
08/10/99
08/10/99
08/10/99 Part No.:
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
BRS-02-LPG1-XX-A-XX-SMCP
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: Header, female, 2mm pitch, 2.7mm profile, dual rows,
SMT type
G
1
2
3
4

BRS-02-LPG1-22-A-GD-SMCP Related Products

BRS-02-LPG1-22-A-GD-SMCP BRS-02-LPG1-22-A-SG-SMCP BRS-02-LPG1-22-A-TN-SMCP BRS-02-LPG1-10-A-TN-SMCP
Description Board Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug Board Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug Board Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug
Is it Rohs certified? conform to conform to conform to conform to
Reach Compliance Code unknown unknown unknown unknown
Other features ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
body width 0.165 inch 0.165 inch 0.165 inch 0.165 inch
subject depth 0.11 inch 0.11 inch 0.11 inch 0.11 inch
body length 0.878 inch 0.878 inch 0.878 inch 0.406 inch
Body/casing type PLUG PLUG PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU ON NI AU ON NI SN ON NI SN ON NI
Contact point gender FEMALE FEMALE FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 20 mΩ 20 mΩ 20 mΩ 20 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Dielectric withstand voltage 500VAC V 500VAC V 500VAC V 500VAC V
Durability 500 Cycles 500 Cycles 500 Cycles 500 Cycles
Insulation resistance 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω
Manufacturer's serial number BRS BRS BRS BRS
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE
PCB row number 2 2 2 2
Number of rows loaded 2 2 2 2
Maximum operating temperature 105 °C 105 °C 105 °C 105 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 5.3594 mm 5.3594 mm 5.3594 mm 5.3594 mm
Rated current (signal) 2 A 2 A 2 A 2 A
Guideline UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal pitch 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 22 22 22 10
Base Number Matches 1 1 1 -
Contact completed and terminated - TIN TIN TIN
