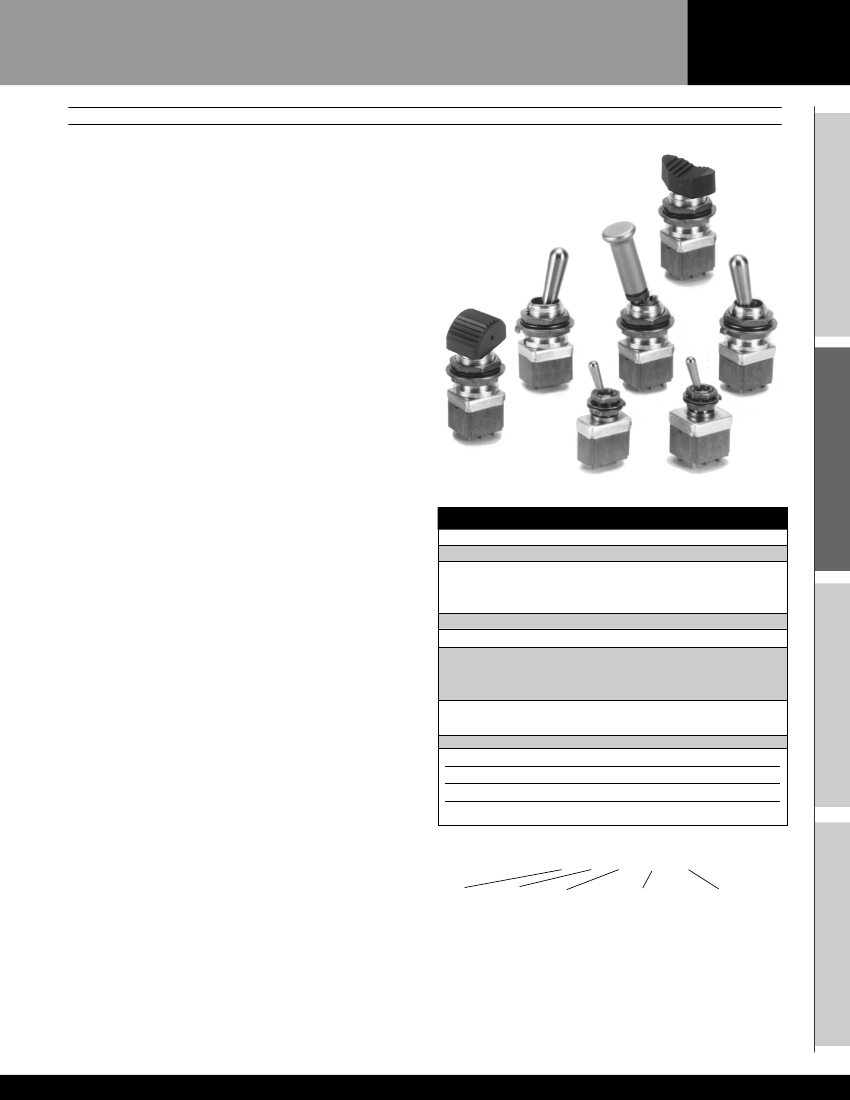

T3
MINIATURE TOGGLE SWITCHES
FEATURING OTTO’S UNIQUE SNAP-ACTION MECHANISM
These miniature toggles are rugged, highly reliable switches offering
positive detent action for safe switching operation. Featuring the
unique OTTO snap-action switch mechanism in conjunction with a
unique toggle actuator design, the T3 series offers non-teasible
contact transfer.
High contact pressure and superior wiping action of the OTTO design
makes the T3 series an excellent choice for switching loads from
logic level up to 5 amperes.
Choose sealed one or two-pole circuitry, 15/32-32 sealed or 1/4-40
unsealed bushing construction, momentary and/or maintained
operation. The 15/32-32 bushing model is also available with lever
lockout toggle feature or thumb button actuators.
MINIATURE
TOGGLES
TOGGLE SWITCHES
Molded-in terminals seal the contacts against moisture and solder
flux wicking. The front-panel side of 15/32-32 bushing models are
sealed against water and other liquids per MIL-S-83731.
In addition to the single turret solder terminal specified in MIL-S-83731,
we also offer two different lengths of pins for printed circuit soldering.
Mounting hardware provided includes two hex nuts, one lockwasher
and one keyway washer.
Standard Characteristics/Ratings:
OPERATIONAL:
Electrical Life, at full load:
30,000 cycles
Exclusive Quality Features:
• Non-teasible snap-action contact actuation
• Shorter behind panel depth
• Superior wiping action keeps contacts clean
• Positive tactile response prevents operating errors
• Weighs up to 25% less than competitive products
• More contact/terminal plating choices
• Highly reliable: simpler design, less parts
Mechanical Life:
100,000 cycles
PHYSICAL:
Temperature Range:
Bushing Seal:
Materials:
Continuous -65°C to +85°C
Watertight per MIL-S-83731 (15/32-32 Model only)
Handle: 303 Stainless
Bushing: Per MIL-S-83731
Body: Per MIL-S-83731
ELECTRICAL:
(at 28VDC and 115 VAC, 400 Hz.)
Load
Resistive
Inductive
Lamp
DWV
At Sea Level
5.0 A
2.0 A
1.0 A
1050 Vrms
At 65,000 Ft.
5.0 A
2.0 A
—
400 Vrms
T3 PART NUMBER CODE
T3-
Bushing
Size
Terminal
Style
X
Circuitry
X
X
X
X
Contact
Material
Button
Color
(If Required)
Circuit Made
with Lever at...
Keyway
Side
Center Opposite
Keyway
Off
On
1. Silver/Gold 1. Red
1. Single Turret 1. Single Pole 1. On
1. 15/32-32
4. P.C. Pin .150"lg. 2. Double Pole 2. Off
None
On
Flash
2.Black
2.1/4-40
3.15/32-32
5. P.C. Pin .270"lg.
3. On
None
On
2. Gold Plated 8.Gray
w/Lockout
4. (On) None
On
5. (On) Off
(On)
4.15/32-32
w/ Convex Btn
6. (On) Off
On
5.15/32-32 w/Concave Button
Add appropriate Lockout feature configuration code letter (A-P) for Bushing Style 3 or Button Color
codes (-1, -2 -3) for Bushing Styles 4 and 5 at end of Part Number.
Parenthesis ( ) denotes momentary contact action.
Specifications Subject To Change Without Notice
OTTO CONTROLS • www.ottoeng.com
93
