REVISION AE
DO NOT
SCALE FROM
THIS PRINT
NOTES:
AE
SQW-1XX-01-XXX-D-VS-XX-XXX
No OF POSITIONS
-02 THRU -50
(PER ROW)
PLATING SPECIFICATION
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA
MATTE TIN ON TAIL
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA
MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA
MATTE TIN ON TAIL
-STL: 30µ" SELECTIVE GOLD IN CONTACT AREA
TIN/LEAD (93/7+/-5%) TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA
3µ" ON TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA
MATTE TIN ON TAIL
-LM: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA
MATTE TIN ON TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA
MATTE TIN ON TAIL
.010 [.25]
LEAD STYLE
-01
OPTION
-A: STAKED & MOLDED IN ALIGNMENT PIN
(5 POS MIN) (USE SM-A8H, SEE FIG 3, SHT 2)
-LC: LOCKING CLIP (5 POS MIN)
(USE LC-07-TM, SEE FIG 4, SHT 2 & NOTE 8)
-P: PICK & PLACE PAD (4 POS MIN)
AE
(USE LMP-03, SEE FIG 6, SHT 2)
-TR: TAPE & REEL
(AVAILABLE POS 4 THRU 28)
-K: POLYAMIDE FILM PAD (4 POS MIN)
(USE K-500-300, SEE FIG 7, SHT 2)
(.005 [.13] THICKNESS WITH SILICONE ADHESIVE)
TAIL STYLE
-VS: VERTICAL
ROW SPECIFICATION
-D: DOUBLE (USE SQW-XX-D)
POLARIZATION OPTION
-XXX: INDICATES POSITION POLARIZED
(USE PK-07-N, SEE FIG 2, SHT 2)
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. POSITIONS -04 THRU -50 ARE TO BE TUBED.
3. POSITIONS 02 & 03 ARE TO BE LAYERED PACKAGED.
4. MAXIMUM CUT FLASH: .010[.25].
5. STAKED ALIGNMENT PIN USED AT SAMTECS DISCRETION.
6. MEASURE THE HEIGHT FROM THE EDGE, NOT THE BREAK OFF.
7. MEASURED AT BEND RADIUS, NOT END OF PIN.
8. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED,
THE -LC OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT.
SAMTEC RECOMMENDS MANUAL PLACEMENT FOR ALL
ASSEMBLIES WITH THE -LC OPTION.
AE
C
((No OF POS x .07874 [2.000]) + .0117 [.297])
(No OF POS x .07874 [2.000]) - .07874 [2.000] REF
02
.07874 2.0000
REF
.157 4.00
REF
C
.0900 2.286
2 MAX SWAY
(EITHER DIRECTION)
01
IN-PROCESS
SQW-XX-D
.059 1.50
REF
.203 5.16
REF
.250 6.35
REF
.0500 1.270
(SEE NOTE 7)
.015 0.38
REF
2 MAX SWAY
(EITHER DIRECTION)
90°
- 0°
+4°
C
.006[.15]
C-97-01-XXX
.0197 0.500 REF (TYP)
SQW-110-01-XXX-D-VS
SHOWN

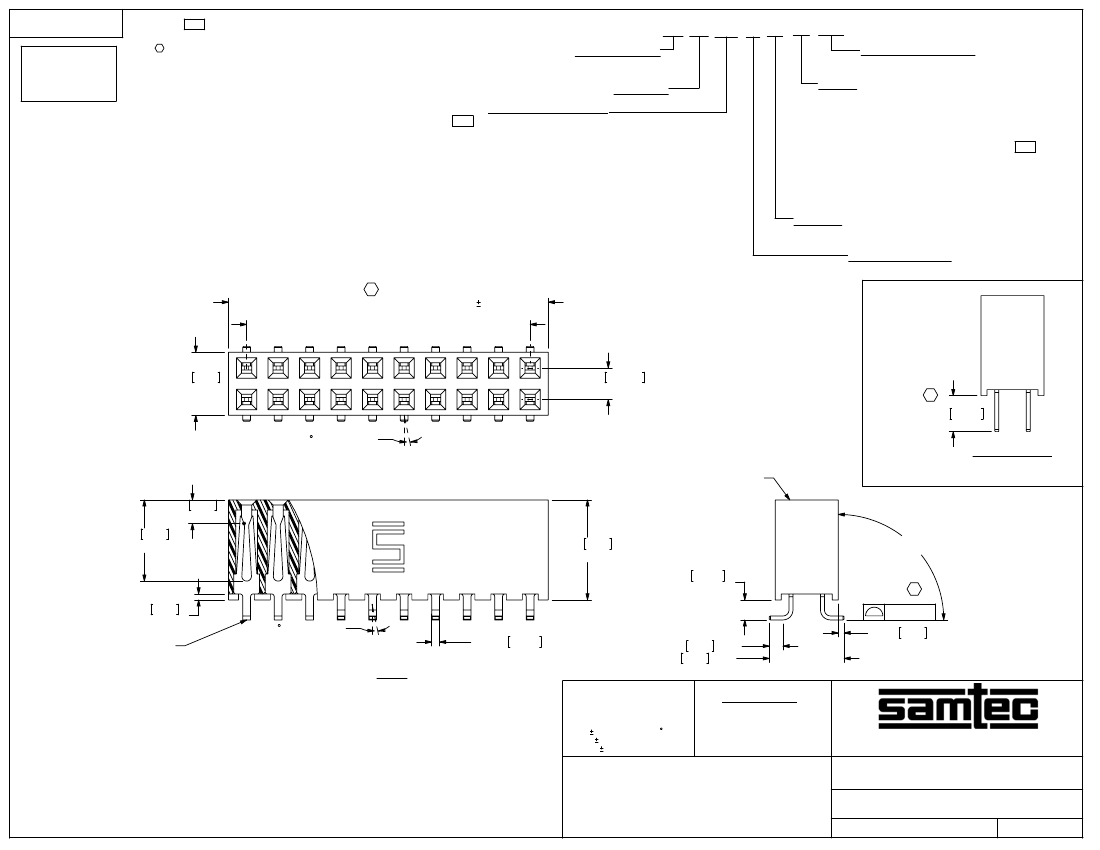

FIG 1
.034 0.87 REF
.187 4.75 REF
.015 0.37 REF
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
TERMINAL: PHOSPHOR BRONZE
2MM SOCKETS TRIP ASSEMBLY
SQW-1XX-01-XXX-D-VS-XX-XXX
DEAN P
04/22/1997
SHEET
1
OF
3
F:\DWG\MISC\MKTG\SQW-1XX-01-XXX-D-VS-XX-XXX-MKT.SLDDRW
BY:
REVISION AE
14
02
01

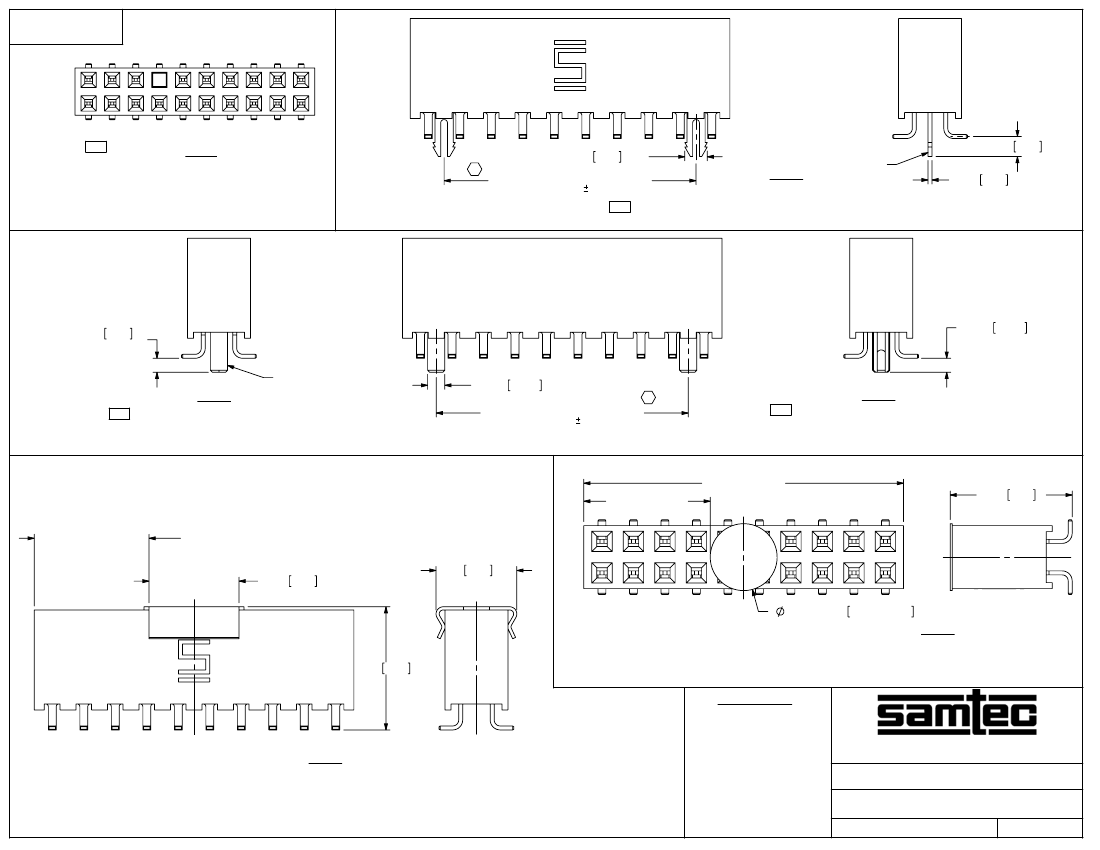

POLARIZATION OPTION LOCATION
INSERT PK-07-N INTO SPECIFIED
POSITION AND BREAK OFF TAB
SQW-110-01-XXX-D-VS-014 SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
AE
FIG 2
C
.056 1.42 REF
{(No OF POS x .07874 [2.000])
- .1575 [4.000]} .002 [.51]
.050 1.27
AE
-LC: LOCKING CLIP
(5 POS MIN)
SQW-110-01-XXX-D-VS-LC
SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 4
LC-07-TM
.010 0.25 REF
.035 0.89
(SEE NOTE 6)
.0350 0.889 REF
-A: STAKED ALIGNMENT PIN
AE
(5 POS MIN)
SQW-110-01-XXX-D-VS-A
SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
SM-A8H
.0430 1.092 REF
{(No OF POS x .07874 [2.000])
- .1575 [4.000]} .002 [.51]
C
AE -A: MOLDED ALIGNMENT PIN
(5 POS MIN)
SQW-110-01-XXX-D-VS-A
SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 5
"R"(SEE NOTE)
"S"(SEE NOTE)
{(No OF POS x .07874 [2.000])
+ .0117[.297]}/2} - .1125 [2.858]
.225 5.72 REF
.202 5.13 REF
.305 7.75
C
L
C
L
C
L
C
L
NOTE:
"R" = USED MEASURED DIMENSION (REF)
"S" = {("R" - .1673 [4.25]) / 2}±.020 [.51]
.1673±.0050 4.250±0.127
.308 7.82
POLYAMIDE FILM PAD
(4 POS MIN)
SQW-110-01-XXX-D-VS-K
SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 7
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
-P: PICK & PLACE PAD
(4 POS MIN)
SQW-110-01-XXX-D-VS-P
SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
F:\DWG\MISC\MKTG\SQW-1XX-01-XXX-D-VS-XX-XXX-MKT.SLDDRW
FIG 6
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
2MM SOCKETS TRIP ASSEMBLY
SQW-1XX-01-XXX-D-VS-XX-XXX
DEAN P
04/22/1997
SHEET
2
OF
3
BY:
REVISION AE

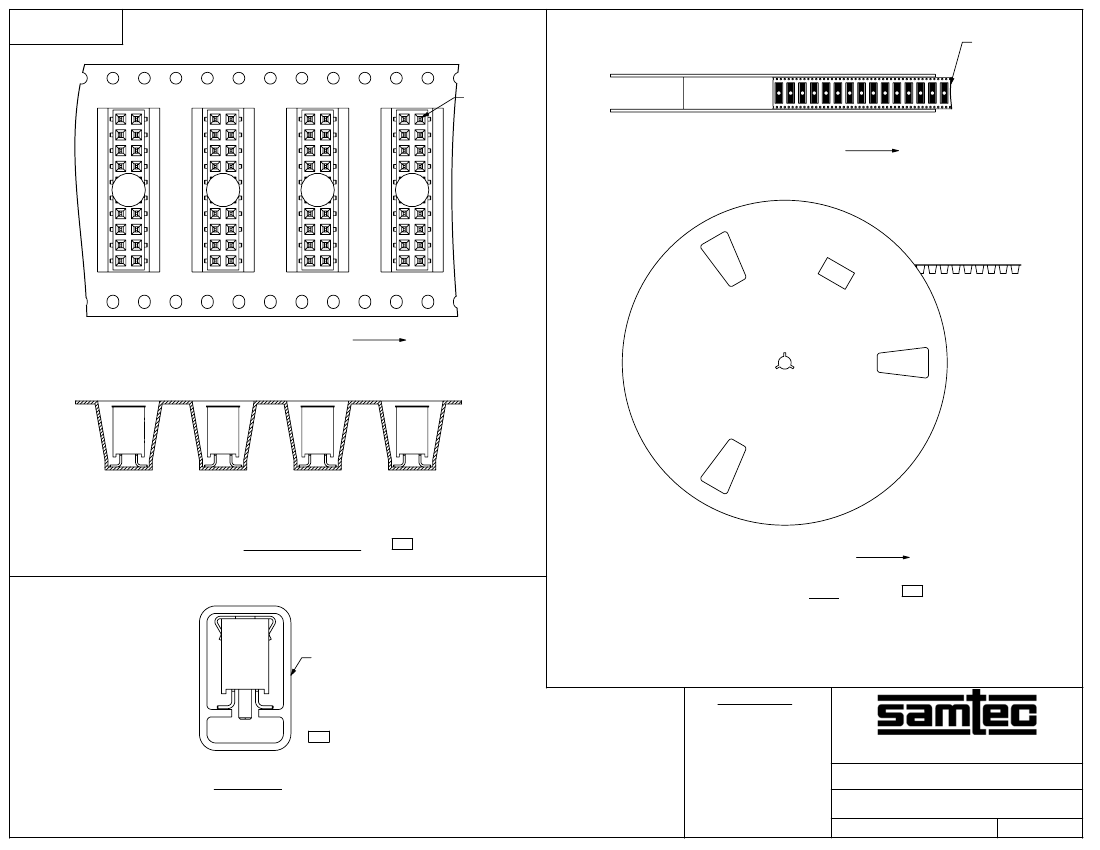

LOOSE END OF REEL
POSITION 1
UNWINDING DIRECTION
USER DIRECTION OF UNREELING
POCKET NOT DETAILED
PARTS TO COME OFF REEL AS SHOWN
WITH POCKETS FACING UP
TAPE & REEL VIEW
AE
UNWINDING DIRECTION
REEL
AE
PT-1-24-03-09
TP-09
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
AE
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
TUBE VIEW
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
2MM SOCKETS TRIP ASSEMBLY
SQW-1XX-01-XXX-D-VS-XX-XXX
DEAN P
04/22/1997
SHEET
3
OF
3
F:\DWG\MISC\MKTG\SQW-1XX-01-XXX-D-VS-XX-XXX-MKT.SLDDRW
BY:
