GVXO-45F/NAI33.0MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> GVXO-45F/NAI33.0MHZ

Preview

GVXO-45F/NAI33.0MHZ: DescriptionHCMOS/LSTTL Output Clock Oscillator, 33MHz Nom; CategoryPassive components oscillator; File Size117KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GVXO-45F/NAI33.0MHZ Overview

HCMOS/LSTTL Output Clock Oscillator, 33MHz Nom

GVXO-45F/NAI33.0MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Maximum control voltage	5 V
Minimum control voltage
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	80 ppm
frequency stability	100%
linearity	10%
Manufacturer's serial number	GVXO-45F
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	33 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/LSTTL
Output load	5 LS TTL, 30 pF
physical size	20.8mm x 13.08mm x 7.4mm
longest rise time	6 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

OBSOLETE - DO NOT USE

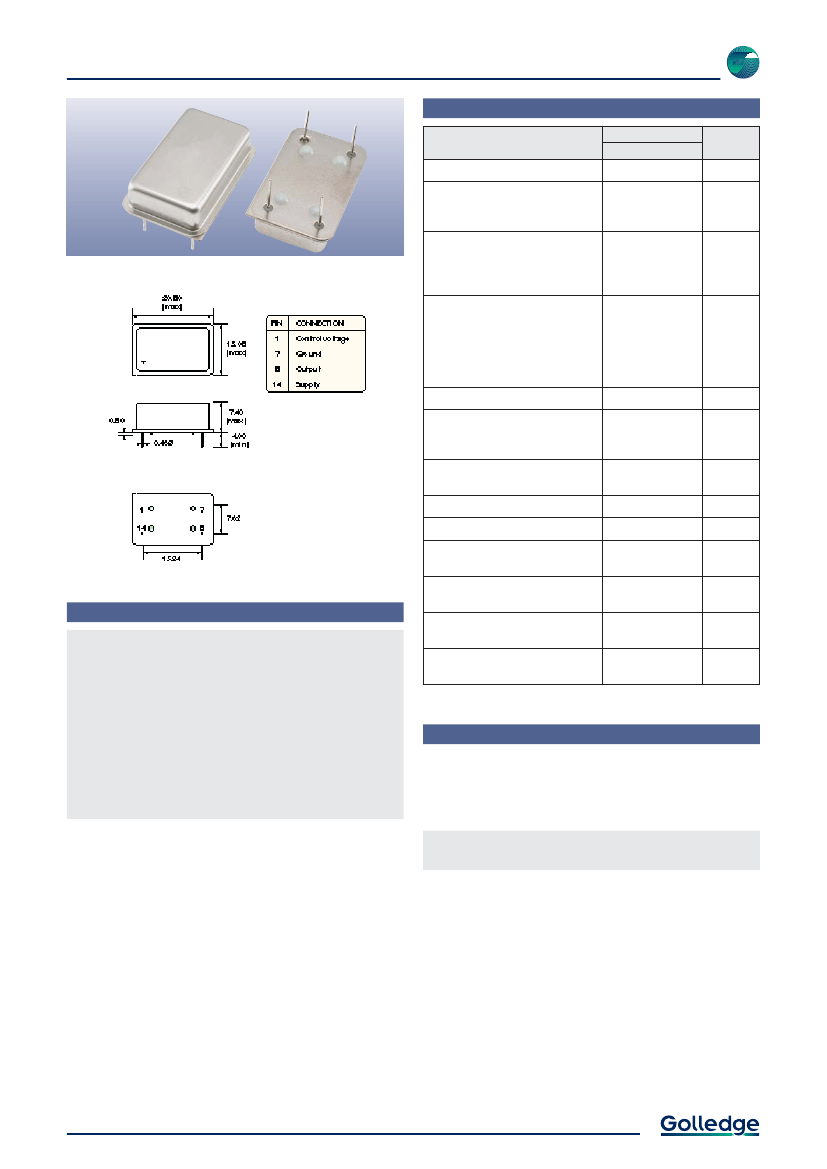

5V VCXO - High Frequency Fundamental

Specifications

GVXO-45F

Product

GVXO-45F

33.0 ~ 50.0MHz



















N

S

W

A

B

C

D

E

Option

Codes

Parameters

Frequency range:

Voltage control:

+2.5V ±2.5V, 10% linearity

>100kΩ input impedance

Frequency pullability (min):

±80ppm

±150ppm

±200ppm

Frequency stability (max):

±100ppm

±50ppm

±25ppm

±20ppm

±15ppm

Ageing:

±5.0ppm max per year

Operating temperature range:

-10 to +70°C

-40 to +85°C

Storage temperature range:

-55 to +125°C

Supply voltage (V

DD

):

Supply current:

Driving ability:

Logic levels:

+5.0V (±5%)

35mA max

30pF HCMOS

5 LSTTL

I

Features

‘0’ level = +0.4V max

‘1’ level = 90%V

DD

min

Waveform symmetry @ 50%V

DD

:

40:60 max

Rise / fall time:

6ns max (0.4V ~ 90%V

DD

min)



Fundamental mode for improved phase noise

5.0V supply

Low cost for volume applications

Choice of pullability & stability

Express deliveries for non-standard items

Industrial temperature range option



Standard.



Optional - Please specify required code(s) when ordering

Ordering Information

Product + option codes + frequency

eg:

GVXO-45F/SC 49.1520MHz

±150ppm pullability, ±25ppm stability

Option codes must be included to specify a model

completely.

Option code X (eg GVXO-45F/X) denotes a custom spec.



±15ppm and ±20ppm stability may not be available over -40+85°C,

depending on frequency. Check with our sales office.

Tel:

+44 1460 256 100

31 Jan 2012

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
