BS-AA05RD: Description7 Seg Numeric LED Display, 1-Character, 26mm; CategoryLED optoelectronic/LED photoelectric; File Size244KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BS-AA05RD Overview

7 Seg Numeric LED Display, 1-Character, 26mm

BS-AA05RD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
color@wavelength	Red
Configuration	Common Anode
Display height	26 mm
Maximum forward voltage	2.6 V
JESD-609 code	e0
Number of characters	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	7 SEG NUMERIC LED DISPLAY
peak wavelength	700 nm
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

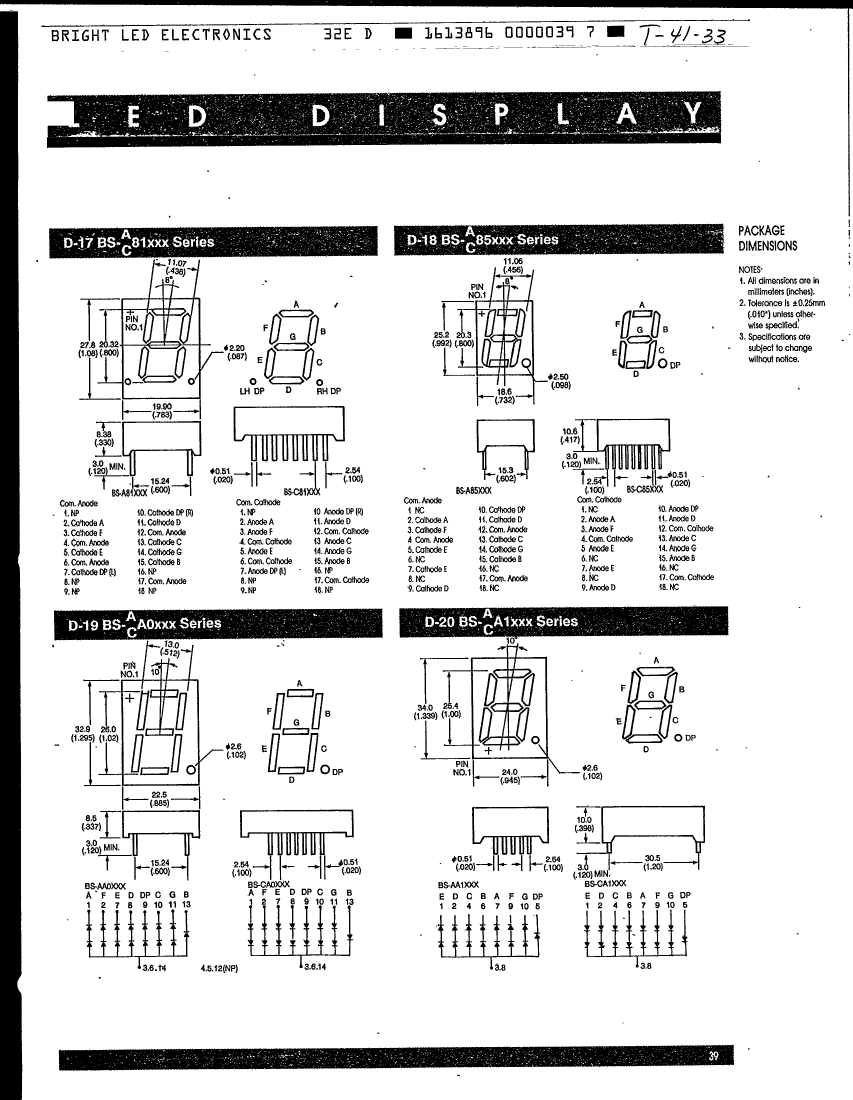

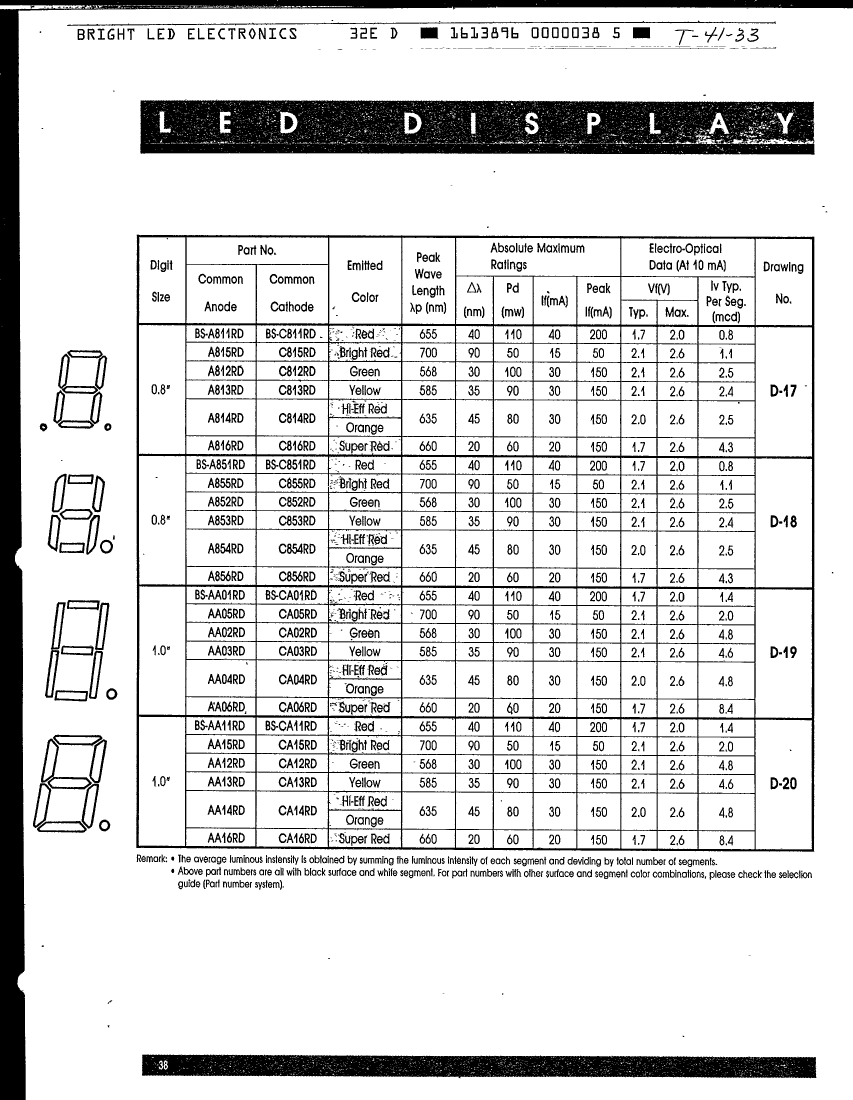

Preview

Download Datasheet

View All

BS-AA05RD Related Products

	BS-AA05RD	BS-AA14RD	BS-C855RD	BS-AA11RD	BS-AA01RD	BS-AA02RD	BS-AA12RD	BS-A851RD
Description	7 Seg Numeric LED Display, 1-Character, 26mm	7 Seg Numeric LED Display, 1-Character, 25mm	7 Seg Numeric LED Display, 1-Character, 20mm	7 Seg Numeric LED Display, 1-Character, 25mm	7 Seg Numeric LED Display, 1-Character, 26mm	7 Seg Numeric LED Display, 1-Character, 26mm	7 Seg Numeric LED Display, 1-Character, 25mm	7 Seg Numeric LED Display, 1-Character, 20mm
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color@wavelength	Red	Orange/Red	Red	Red	Red	Green	Green	Red
Configuration	Common Anode	Common Anode	Common Cathode	Common Anode	Common Anode	Common Anode	Common Anode	Common Anode
Display height	26 mm	25 mm	20 mm	25 mm	26 mm	26 mm	25 mm	20 mm
Maximum forward voltage	2.6 V	2.6 V	2.6 V	2 V	2 V	2.6 V	2.6 V	2 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of characters	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY	7 SEG NUMERIC LED DISPLAY
peak wavelength	700 nm	635 nm	700 nm	655 nm	655 nm	568 nm	568 nm	655 nm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	-	-	BRIGHT	-	BRIGHT	BRIGHT	BRIGHT	BRIGHT
