HVQ
CONNECTOR
2.5mm
pitch
Board-to-board connectors
Features ––––––––––––––––––––––––
• Superior folded beam construction
(1) This sturdy construction withstands repeated stress, resists
permanent deformation, and offers a very long service life.
(2) This contact design has a large tolerance for variations in
mating post thickness and resists deformation when pried.
• Wide, sturdy post
The post has a large cross-sectional area to resist prying
during insertion into printed circuit boards and mating with
connector housings.
• Molded-in header
The posts are molded into the insulator to provide stability
when mounted on printed circuit boards. This also prevents
flux from entering the connector during soldering.

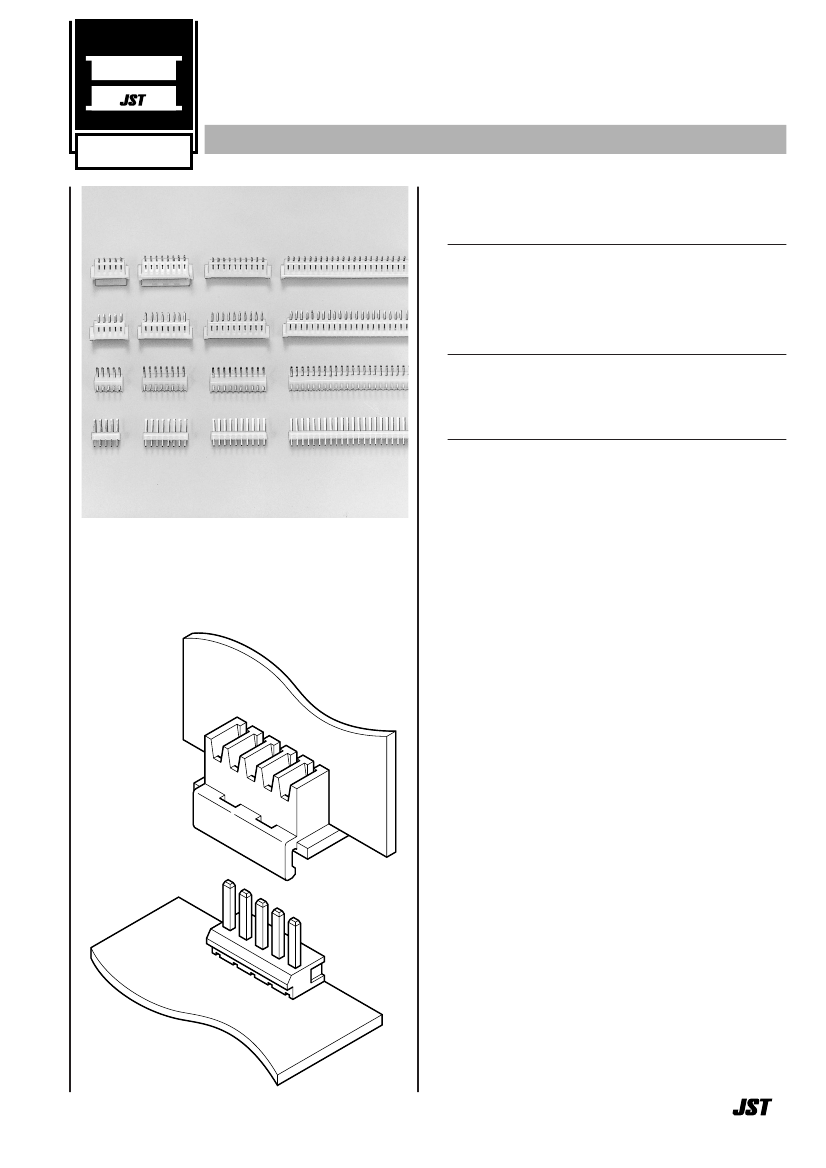

This 2.5mm pitch connector is used to
interconnect printed circuit boards in
parallel, vertically or horizontally.
Specifications –––––––––––––––––––
• Current rating: 3A AC, DC
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance: 500M
Ω
min.
• Withstanding voltage: 1,500V AC/minute
• Applicable PC board thickness: 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
1
Recognized E60389
Certified LR20812
1
HVQ
CONNECTOR
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
Side entry type
2.5
1.0
0.64
1.0
6.0
6.0
3.2
3.5
3.4
0.64
0.64
2.5
0.64
5.5
3.0
A
3.5
5.6
A
Cir-
cuits
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Model No.
Top entry type
B 3P-SHF-1AA
B 4P-SHF-1AA
B 5P-SHF-1AA
B 6P-SHF-1AA
B 7P-SHF-1AA
B 8P-SHF-1AA
B 9P-SHF-1AA
B10P-SHF-1AA
B11P-SHF-1AA
B12P-SHF-1AA
B13P-SHF-1AA
B14P-SHF-1AA
B15P-SHF-1AA
B16P-SHF-1AA
B17P-SHF-1AA
B18P-SHF-1AA
B19P-SHF-1AA
B20P-SHF-1AA
B21P-SHF-1AA
B22P-SHF-1AA
B23P-SHF-1AA
B24P-SHF-1AA
B25P-SHF-1AA
Side entry type
BS 3P-SHF-1AA
BS 4P-SHF-1AA
BS 5P-SHF-1AA
BS 6P-SHF-1AA
BS 7P-SHF-1AA
BS 8P-SHF-1AA
BS 9P-SHF-1AA
BS10P-SHF-1AA
BS11P-SHF-1AA
BS12P-SHF-1AA
BS13P-SHF-1AA
BS14P-SHF-1AA
BS15P-SHF-1AA
BS16P-SHF-1AA
BS17P-SHF-1AA
BS18P-SHF-1AA
BS19P-SHF-1AA
BS20P-SHF-1AA
BS21P-SHF-1AA
BS22P-SHF-1AA
BS23P-SHF-1AA
BS24P-SHF-1AA
BS25P-SHF-1AA
Material and Finish
Post: Brass copper-undercoated, tin-plated (reflow treatment)
Base: PA 66, UL94V-0, natural
Dimensions A (mm)
5.0
7.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
32.5
35.0
37.5
40.0
42.5
45.0
47.5
50.0
52.5
55.0
57.5
60.0
Q'ty / box
Top entry type Side entry type
1,000
1,000
1,000
1,000
500
500
500
500
500
250
250
250
250
250
250
250
250
250
250
250
250
250
250
1,000
1,000
1,000
1,000
500
500
500
500
500
200
200
200
200
200
200
200
200
200
200
200
200
200
200
RoHS compliance
This product displays (LF)(SN) on a label.
3.0
5.6
3
HVQ
CONNECTOR
PC board layout
(viewed from soldering side)
––––––––––––––––––––––––––––––––––––––
Top entry type
Side entry type
2.5±0.05 3.1min.
Header: 3.5min.
2.5±0.05 3.1min.
Receptacle: 6.4
Header: 3.0
Receptacle:
φ
1.0
+0.15
-0.05
Header:
φ
0.9
+0.1
0
Receptacle:
φ
1.0
+0.15
-0.05
Header:
φ
0.9
+0.1
0
Note:
1. Tolerances are non-cumulative: ±0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
Assembly layout ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type receptacle and
top entry type shrouded header
Side entry type receptacle and
top entry type shrouded header
Side entry type receptacle and
side entry type shrouded header
6.5
1.2
3.4
6.5
6.4
14.2
6.5
3.0
11.4
11.4
3.5
3.5
3.2
(8.8)
4
