L64230GC-15 datasheet, PDF - EEWORLD Datasheet

L64230GC-15: DescriptionDigital Filter, CMOS, CPGA155; CategoryThe embedded processor and controller Microcontrollers and processors; File Size742KB，16 Pages; ManufacturerBroadcom

Download Datasheet Parametric Compare View All

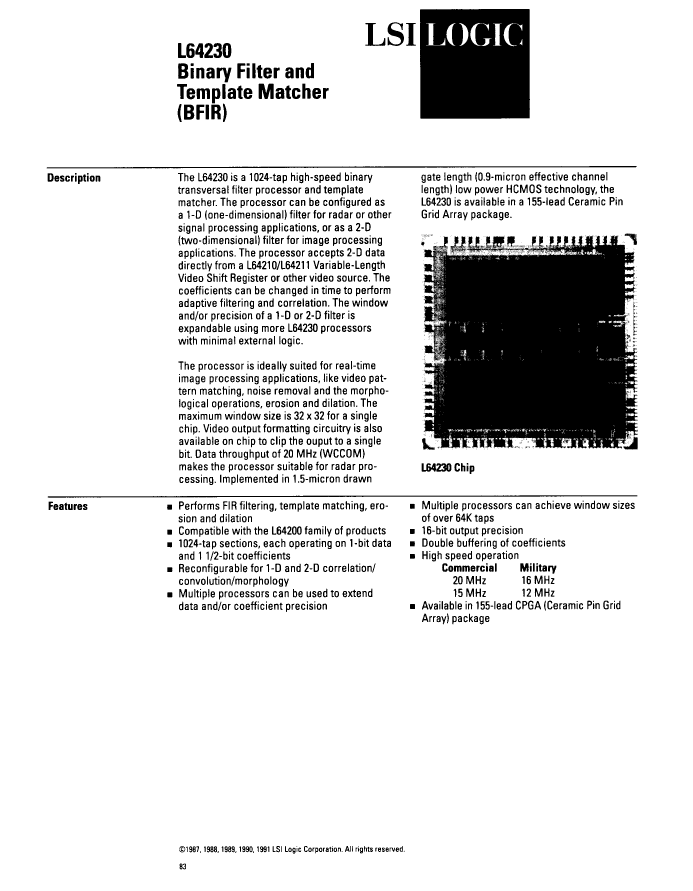

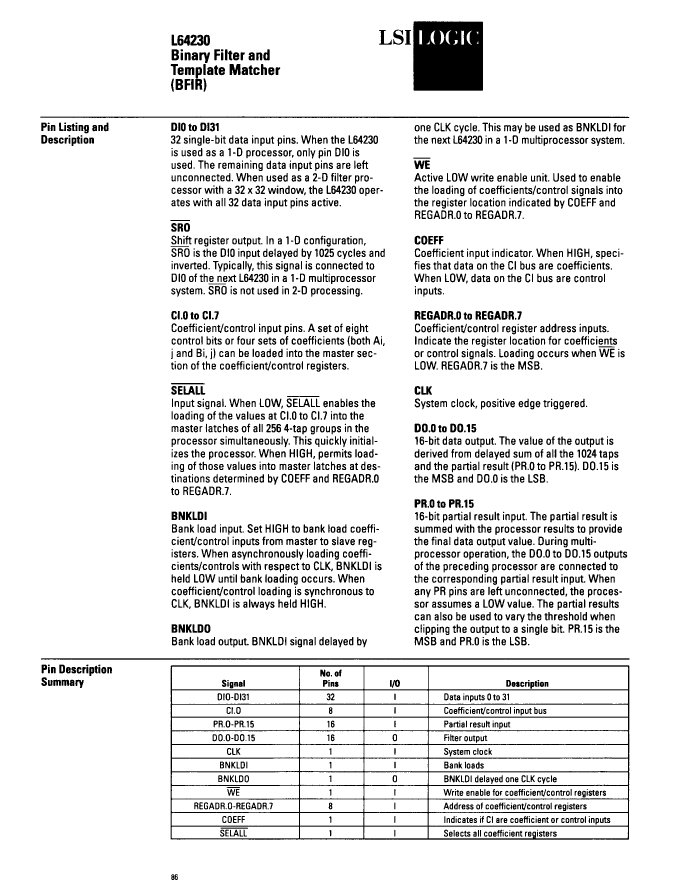

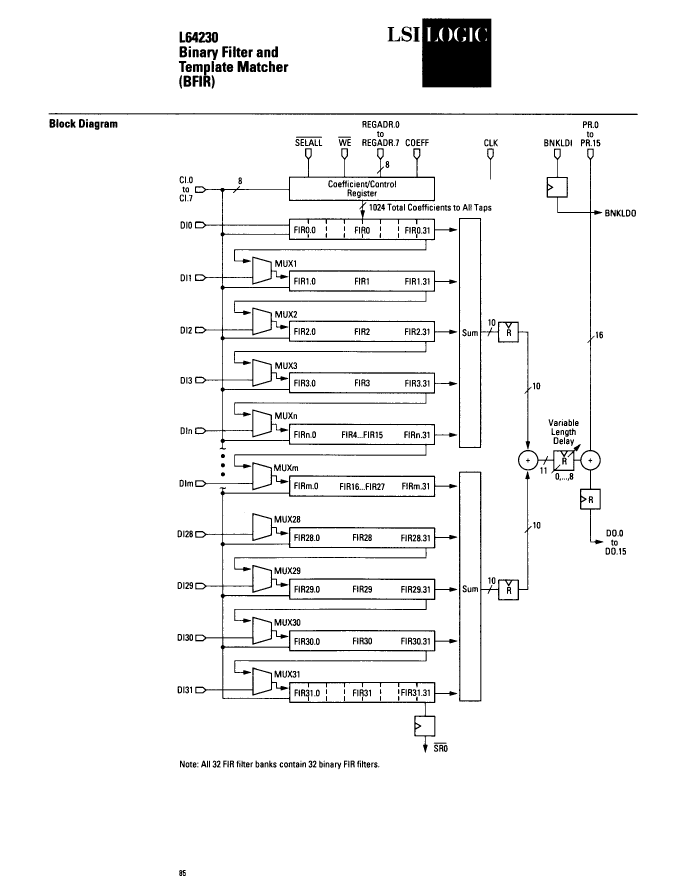

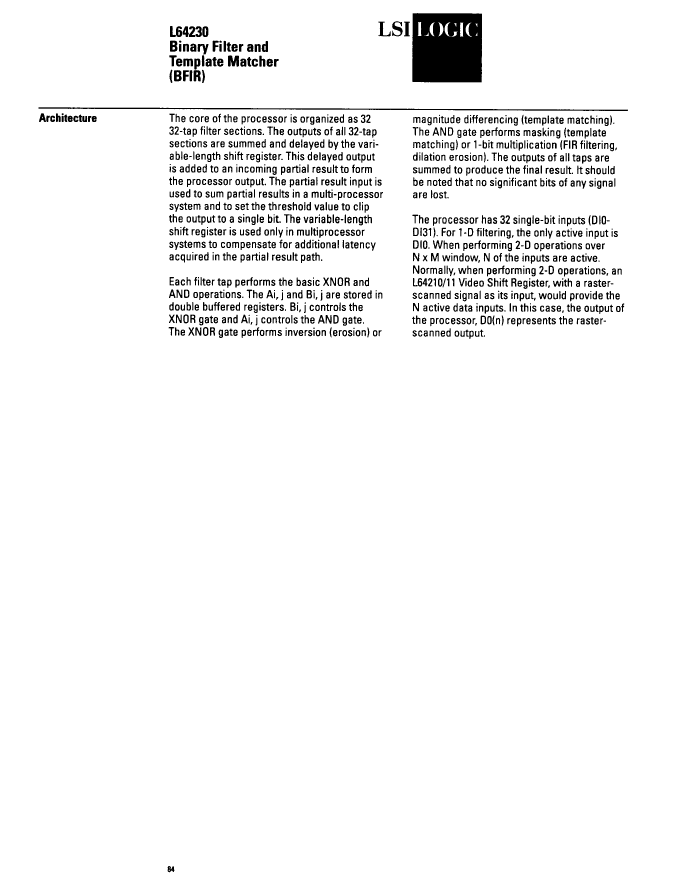

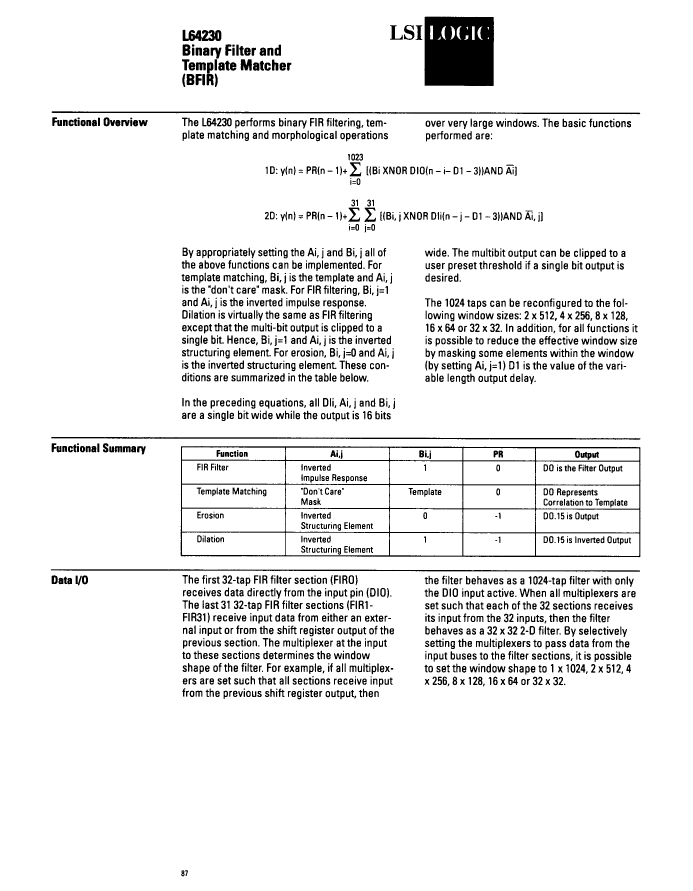

L64230GC-15 Overview

Digital Filter, CMOS, CPGA155

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
JESD-30 code	S-XPGA-P155
JESD-609 code	e0
Number of terminals	155
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	PGA
Encapsulate equivalent code	PGA155,15X15
Package shape	SQUARE
Package form	GRID ARRAY
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER
Base Number Matches	1

	L64230GC-15	L64230GM-12	L64230GC-20	L64230GM-16
Description	Digital Filter, CMOS, CPGA155	Digital Filter, CMOS, CPGA155	Digital Filter, CMOS, CPGA155	Digital Filter, CMOS, CPGA155
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	S-XPGA-P155	S-XPGA-P155	S-XPGA-P155	S-XPGA-P155
JESD-609 code	e0	e0	e0	e0
Number of terminals	155	155	155	155
Maximum operating temperature	70 °C	125 °C	70 °C	125 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	PGA	PGA	PGA	PGA
Encapsulate equivalent code	PGA155,15X15	PGA155,15X15	PGA155,15X15	PGA155,15X15
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER
Maker	-	Broadcom	Broadcom	Broadcom
