Basic information of AU2904N amplifier:
AU2904N is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIP,
AU2904N amplifier core information:
The minimum operating temperature of AU2904N is -40 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.5 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of AU2904N is 0.3 V/us. Its minimum voltage gain is 25000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the AU2904N gain becomes 0.707 times the low-frequency gain is 1000 kHz.
The nominal supply voltage of AU2904N is 5 V, and its corresponding nominal negative supply voltage is. The input offset voltage of AU2904N is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of AU2904N:
The width of AU2904N is: 7.62 mm and the length is 9.5 mm. AU2904N has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8
AU2904N amplifier additional information:
Its temperature grade is: AUTOMOTIVE. The corresponding JESD-30 code is: R-PDIP-T8. The packaging code of AU2904N is: DIP. The materials of AU2904N package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The AU2904N package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 4.2 mm.
Basic information of AU2904N amplifier:
AU2904N is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIP,
AU2904N amplifier core information:
The minimum operating temperature of AU2904N is -40 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.5 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of AU2904N is 0.3 V/us. Its minimum voltage gain is 25000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the AU2904N gain becomes 0.707 times the low-frequency gain is 1000 kHz.
The nominal supply voltage of AU2904N is 5 V, and its corresponding nominal negative supply voltage is. The input offset voltage of AU2904N is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of AU2904N:
The width of AU2904N is: 7.62 mm and the length is 9.5 mm. AU2904N has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8
AU2904N amplifier additional information:
Its temperature grade is: AUTOMOTIVE. The corresponding JESD-30 code is: R-PDIP-T8. The packaging code of AU2904N is: DIP. The materials of AU2904N package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The AU2904N package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 4.2 mm.

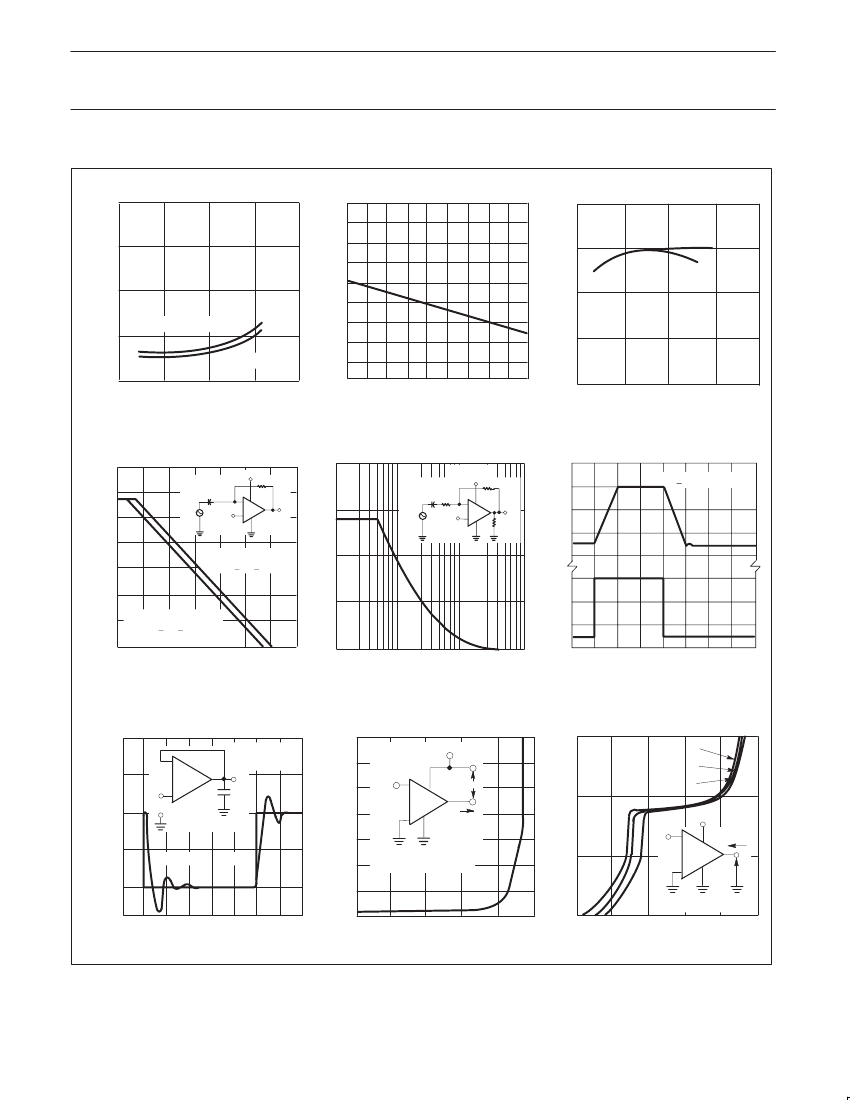

| Parameter Name | Attribute value |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 8 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.5 µA |
| Minimum Common Mode Rejection Ratio | 65 dB |
| Nominal Common Mode Rejection Ratio | 70 dB |
| Maximum input offset voltage | 5000 µV |
| JESD-30 code | R-PDIP-T8 |
| length | 9.5 mm |
| Negative supply voltage upper limit | |
| Nominal Negative Supply Voltage (Vsup) | |
| Number of functions | 2 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum seat height | 4.2 mm |
| Nominal slew rate | 0.3 V/us |
| Supply voltage upper limit | 32 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | AUTOMOTIVE |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Nominal Uniform Gain Bandwidth | 1000 kHz |
| Minimum voltage gain | 25000 |
| width | 7.62 mm |
| Base Number Matches | 1 |
| AU2904N | AU2904D | AU2904D-T | |
|---|---|---|---|
| Description | IC DUAL OP-AMP, 5000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDIP8, 0.300 INCH, PLASTIC, DIP-8, Operational Amplifier | IC DUAL OP-AMP, 5000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDSO8, 3.90 MM, PLASTIC, SO-8, Operational Amplifier | IC DUAL OP-AMP, 5000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDSO8, PLASTIC, SO-8, Operational Amplifier |
| Parts packaging code | DIP | SOIC | SOIC |
| package instruction | DIP, | 3.90 MM, PLASTIC, SO-8 | PLASTIC, SO-8 |
| Contacts | 8 | 8 | 8 |
| Reach Compliance Code | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.5 µA | 0.5 µA | 0.5 µA |
| Minimum Common Mode Rejection Ratio | 65 dB | 65 dB | 65 dB |
| Nominal Common Mode Rejection Ratio | 70 dB | 70 dB | 70 dB |
| Maximum input offset voltage | 5000 µV | 5000 µV | 5000 µV |
| JESD-30 code | R-PDIP-T8 | R-PDSO-G8 | R-PDSO-G8 |
| length | 9.5 mm | 4.9 mm | 4.9 mm |
| Number of functions | 2 | 2 | 2 |
| Number of terminals | 8 | 8 | 8 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.2 mm | 1.75 mm | 1.75 mm |
| Nominal slew rate | 0.3 V/us | 0.3 V/us | 0.3 V/us |
| Supply voltage upper limit | 32 V | 32 V | 32 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES |
| technology | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Nominal Uniform Gain Bandwidth | 1000 kHz | 1000 kHz | 1000 kHz |
| Minimum voltage gain | 25000 | 25000 | 25000 |
| width | 7.62 mm | 3.9 mm | 3.9 mm |
| Base Number Matches | 1 | 1 | 1 |
