MH128H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> MH128H

MH128H: Description2000 MHz - 18000 MHz RF/MICROWAVE FIXED ATTENUATOR, 2.1 dB INSERTION LOSS-MAX; CategoryWireless rf/communication Radio frequency and microwave; File Size27KB，1 Pages; ManufacturerRakon Limited

Download Datasheet Parametric View All

MH128H Overview

2000 MHz - 18000 MHz RF/MICROWAVE FIXED ATTENUATOR, 2.1 dB INSERTION LOSS-MAX

MH128H Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Maximum input power (CW)	36.99 dBm
Maximum insertion loss	2.1 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	2.1
Base Number Matches	1

Preview

Download Datasheet

View All

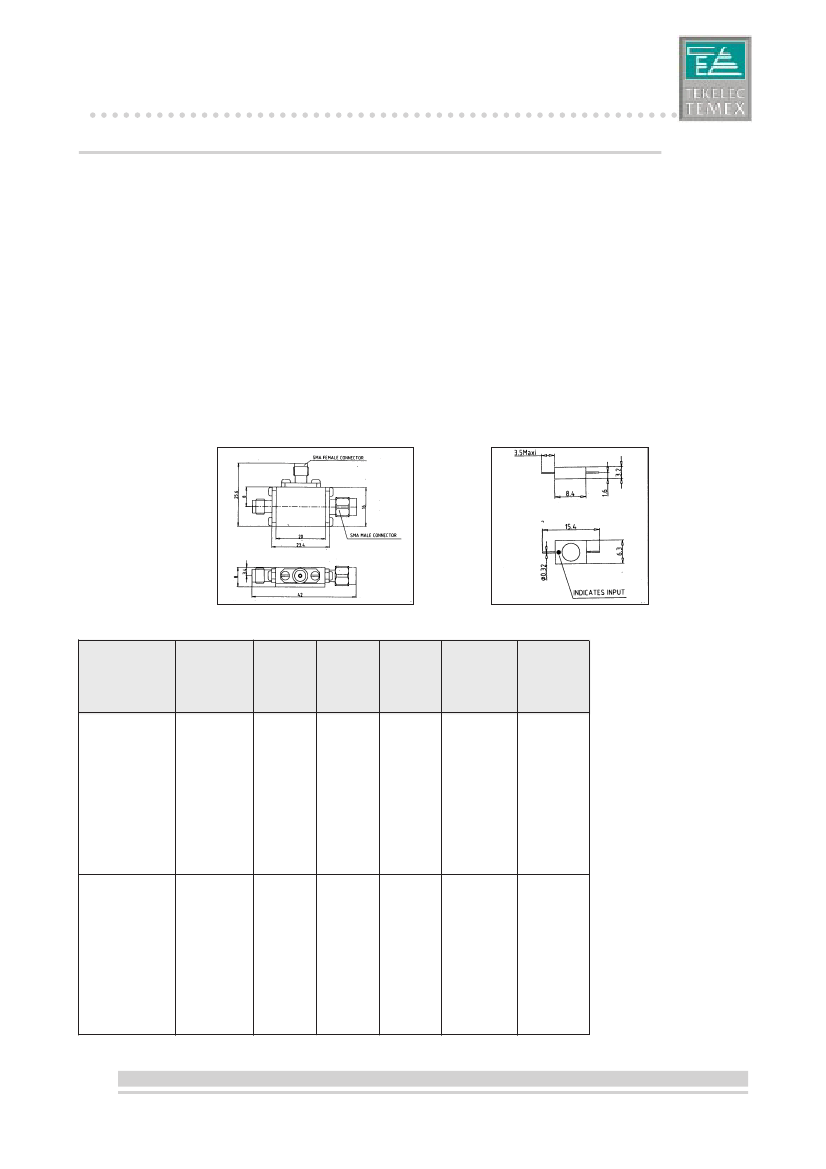

REFLECTIVE ATTENUATORS

REFLECTIVE ATTENUATORS - MH128 & KB8 SERIES

Features

• Wide dynamic range

Operating characteristics

• Bias requirements: Normal bias:

Inverse bias:

• RF power:

CW:

- insertion loss:

- attenuation:

- Insertion loss:

- attenuation:

Peak: 500 W @ 1

Peak: 400 W @ 1

0 to + 100 mA ; maximum ratings + 150 mA

0 to - 100 mA ; maximum ratings - 150 mA

µs max. pulse width

Duty cycle: 10

-3

µs max. pulse width

Duty cycle: 10

-3

(*)

(*) for KB and KS 8131 ; MH128 A

• Hermetic package

• Operating temperature:

Case drawings

- 55° C to + 125° C

BMH3

Electrical characteristics

Model

N°

KB8135

KB8235

KB8935

KB8635

KB8835

KB8335

KB8435

KB8735

KB8535

MH128A

MH128B

MH128J

MH128F

MH128H

MH128C

MH128D

MH128G

MH128E

Frequency

range

(GHz)

0.5-2

2-4

2-8

2-12

2-18

4-8

8-12

8-18

12-18

0.5-2

2-4

2-8

2-12

2-18

4-8

8-12

8-18

12-18

Insertion Attenuat.

loss

dynamic

(dB)

range (dB)

max.

min.

0.6

0.8

1.2

1.7

2.1

1.2

1.7

2.1

0.6

0.8

1.2

1.7

2.1

1.2

1.7

2.1

VSWR

max.

1.4

1.5

1.6

1.9

2.1

1.6

1.9

2.1

1.4

1.5

1.6

1.9

2.1

1.6

1.9

2.1

Transition

time

10-90 / 90-10

(µs)

BMH16

Package

BMH16

BMH3

SALES OFFICES

WEB SITE: http://www.tekelec-temex.com

ASIA PACIFIC: +852 2813 9826

GERMANY: +49 (0) 89 51 64-0

ITALY: +39 (0) 2 58 01 91 06

EUROPE: +33 (0) 1 49 88 49 00

AFRICA: +33 (0) 1 49 88 49 00

NL: +31 (0) 79 3461430

UK: +44 (0) 1256 883340

3-50

AMERICA: +1 (602) 780 1995

BELGIUM: +32 (0) 2 715 90 20

FRANCE: +33 (0) 1 49 88 49 00

NORDIC: +46 (0) 8 590 303 00

SPAIN: +34 (0) 1 320 41 60
