Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LB-6410

Preview

LB-6410: DescriptionSmart/Normal 7 Seg Numeric LED Display, 2-Character, Green, 14.22mm; CategoryLED optoelectronic/LED photoelectric; File Size46KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

LB-6410 Overview

Smart/Normal 7 Seg Numeric LED Display, 2-Character, Green, 14.22mm

LB-6410 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
color	GREEN
color@wavelength	Green
Configuration	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT
Display height	14.22 mm
Maximum forward current	0.02 A
Maximum forward voltage	3 V
JESD-609 code	e0
Number of characters	2
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	563 nm
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

LED displays

High efficiency, two-digit numeric

displays

LB-6000 Series

The LB-6000 series were designed to

meet the need for multi-digit numeric

displays. These LED numeric displays

use GaAsP on GaP for the emitting ma-

terial (with the exception of green) and

are housed in an epoxy resin package.

They are two-digit displays with a char-

acter height of 14.22 mm.

FFeatures

1) Height of character: 14.22 mm.

2) Common anode and common cath-

ode configurations are available for

each color.

3) Each segment has independent pin

connections and static drive is pos-

sible.

4) High efficiency reflectors are used

to achieve a bright, clear display.

5) The package surface is painted

gray and the segments are milky

white.

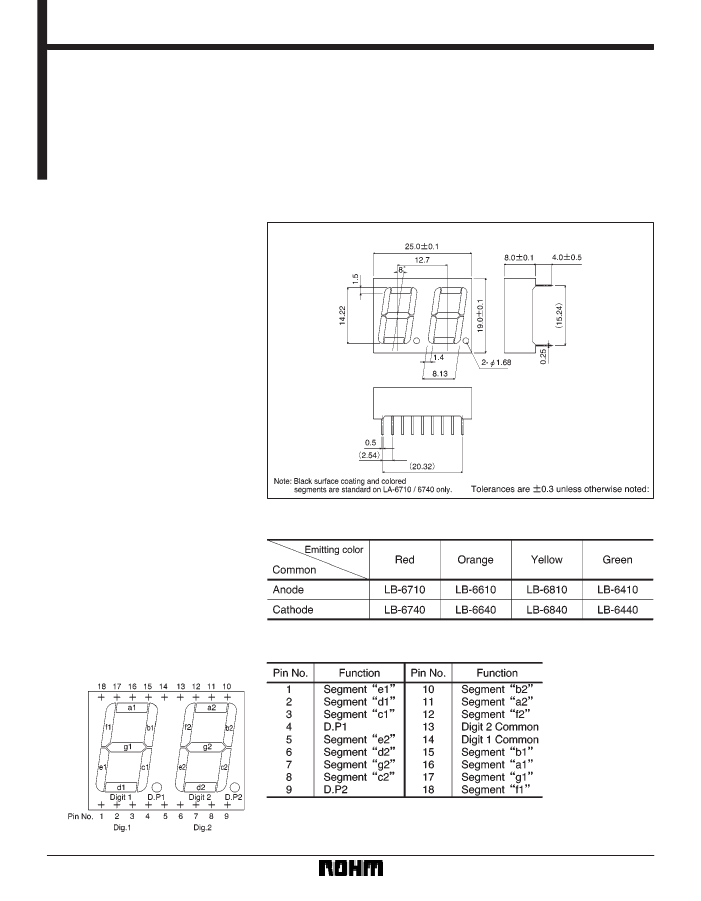

FExternal

dimensions (Units: mm)

FSelection

guide

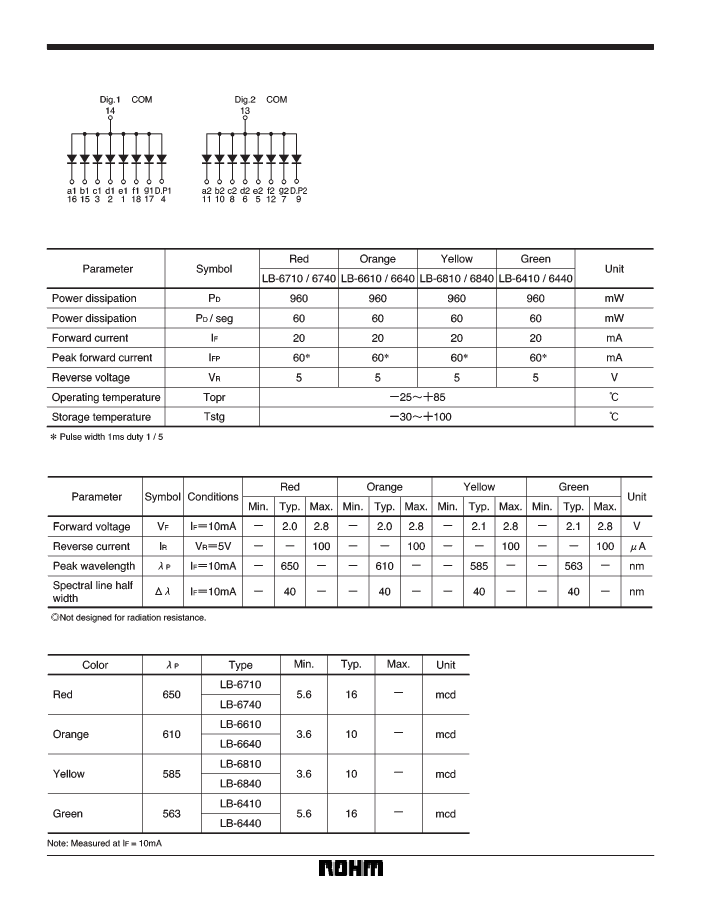

FPin

assignments

207
