IDT74FCT543TPA

Description
Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 1.27 MM PITCH, EIAJ, SO-24
Categorylogic    logic
File Size252KB,5 Pages
ManufacturerIDT (Integrated Device Technology)
Download Datasheet Parametric View All

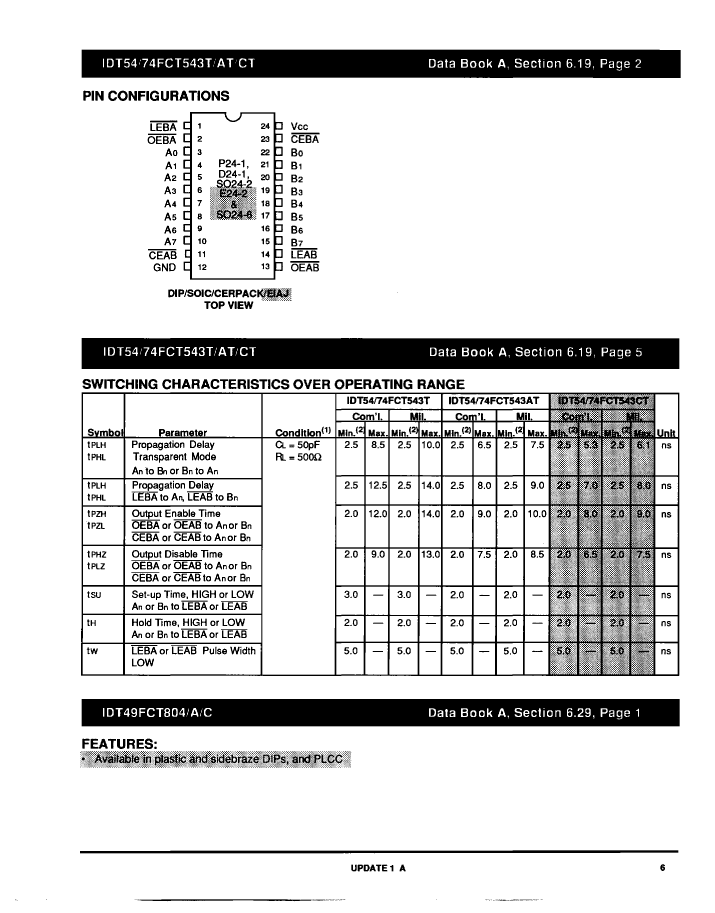

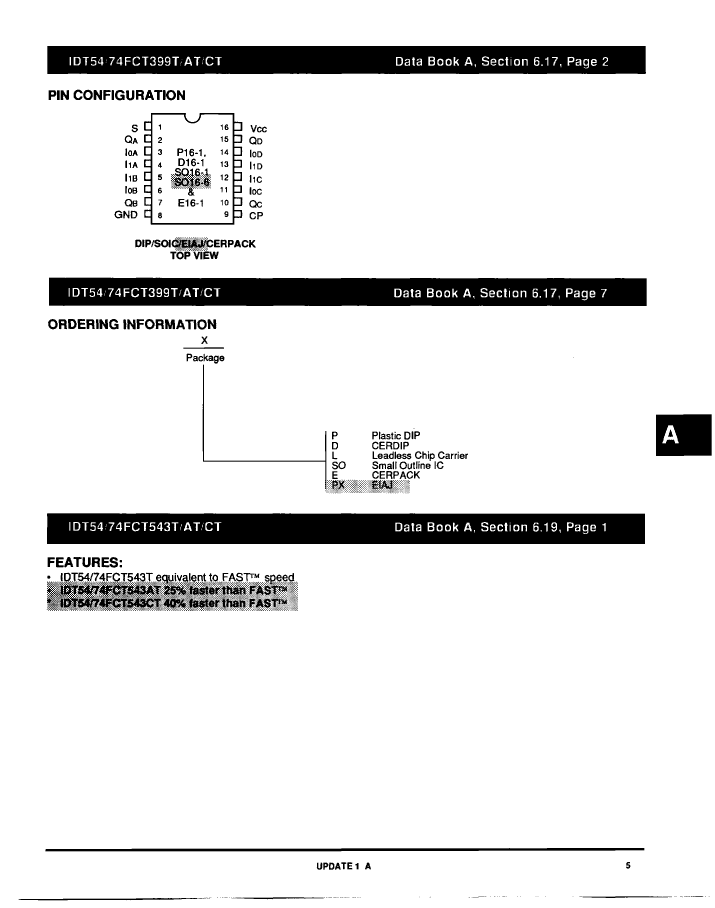

IDT74FCT543TPA Overview

Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 1.27 MM PITCH, EIAJ, SO-24

IDT74FCT543TPA Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeSOIC
package instruction1.27 MM PITCH, EIAJ, SO-24
Contacts24
Reach Compliance Codecompliant
Other featuresWITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
seriesFCT
JESD-30 codeR-PDSO-G24
JESD-609 codee0
length15.0241 mm
Logic integrated circuit typeREGISTERED BUS TRANSCEIVER
Number of digits8
Number of functions1
Number of ports2
Number of terminals24
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)240
propagation delay (tpd)12.5 ns
Certification statusNot Qualified
Maximum seat height2.1082 mm
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperature20
width5.4 mm
Base Number Matches1
