451-10-262-00-009: DescriptionIC Socket, 62 Contact(s); CategoryThe connector socket; File Size133KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

451-10-262-00-009 Overview

IC Socket, 62 Contact(s)

451-10-262-00-009 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SIP HEADER
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4
Manufacturer's serial number	451
Number of contacts	62
Base Number Matches	1

Preview

Download Datasheet

View All

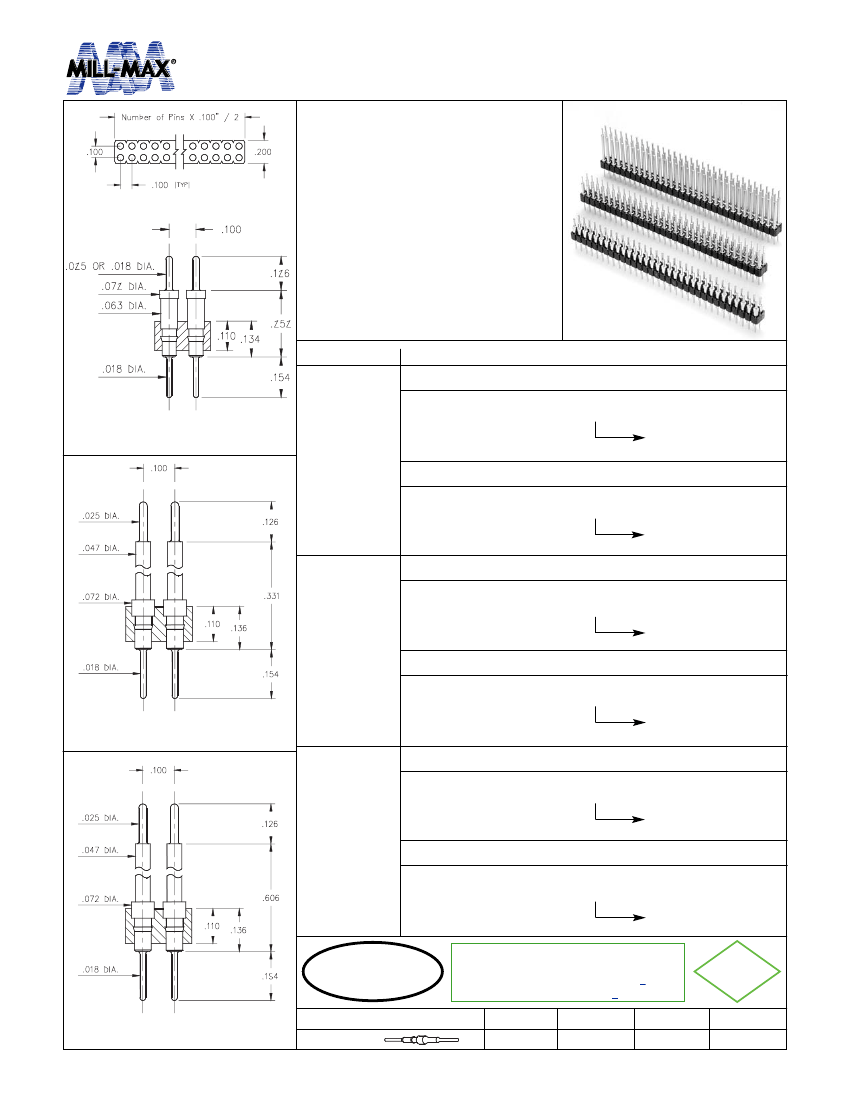

HEADER STRIPS

Interconnect

Double Row

•

Series 451 Interconnect Header

Strips come in three lengths with

.018” dia. pluggable solder tails at

one end and .025” dia. pins at the

other. (M-M# 5503, 5504 or 5505

see page 172 for details).

•

.018” pluggable solder tails are

available at both ends, please

see series:

451...009

451...010

451...011

(using M-M# 5509, 5510, 5511

pins respectively. See pages 170

& 172 for details).

Series 451

Ordering Information

Series 451...003

Fig. 1

.018 / .025 Solder Tails

451-XX-2_ _-00-003000

Specify # of pins

02-64

.018 / .018 Solder Tails

Fig. 1

Series 451...009

451-XX-2_ _-00-009000

Specify # of pins

Series 451...004

02-64

.018 / .025 Solder Tails

451-XX-2_ _-00-004000

Specify # of pins

02-64

Fig. 2

Series 451...010

.018 / .018 Solder Tails

451-XX-2_ _-00-010000

Fig. 2

Specify # of pins

Series 451...005

02-64

.018 / .025 Solder Tails

451-XX-2_ _-00-005000

Specify # of pins

02-64

.018 / .018 Solder Tails

Fig. 3

Series 451...011

451-XX-2_ _-00-011000

Specify # of pins

XX=Plating Code

See Below

Fig. 3

02-64

For RoHS compliance, select plating code.

For the gold option (XX=10) also change part

number from 451-XX-2XX-00-0XX000

to 451-10-2XX-00-0XX100

10

10μ” Au

90

200μ” Sn/Pb

40

200μ” Sn

SPECIFY PLATING CODE XX=

Pin Plating

w w w. m i l l - m a x . c o m

66

516-922-6000
