P05-100ST-A-G: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,100 CONTACTS,SKT,0.02 PITCH; CategoryThe connector The connector; File Size160KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

P05-100ST-A-G Overview

HEADER CONNECTOR,PCB MNT,PLUG,100 CONTACTS,SKT,0.02 PITCH

P05-100ST-A-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	NONE
body width	0.173 inch
subject depth	0.12 inch
body length	1.079 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	80 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	150VAC V
Durability	20 Cycles
maximum insertion force	97.856 N
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Plug contact pitch	0.02 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-50 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.429 mm
Plating thickness	8u inch
polarization key	ENDS
Rated current (signal)	0.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Total number of contacts	100
Evacuation force-minimum value	8.0064 N
Base Number Matches	1

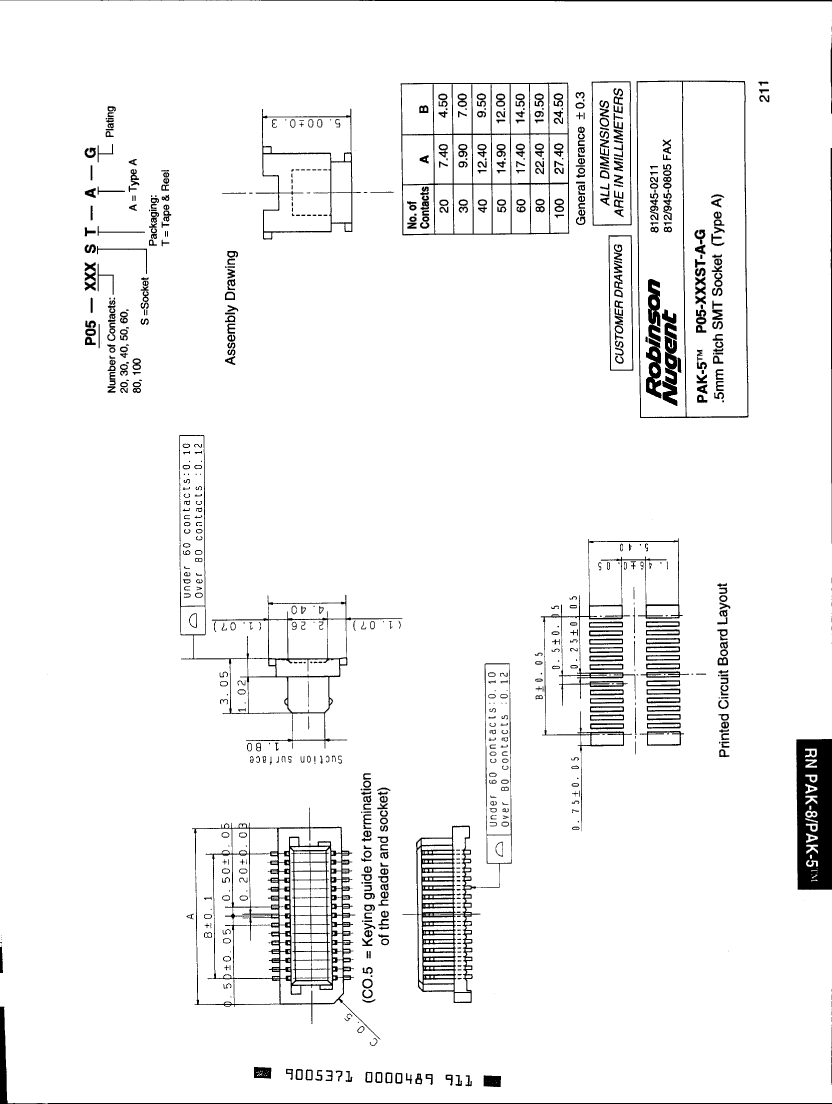

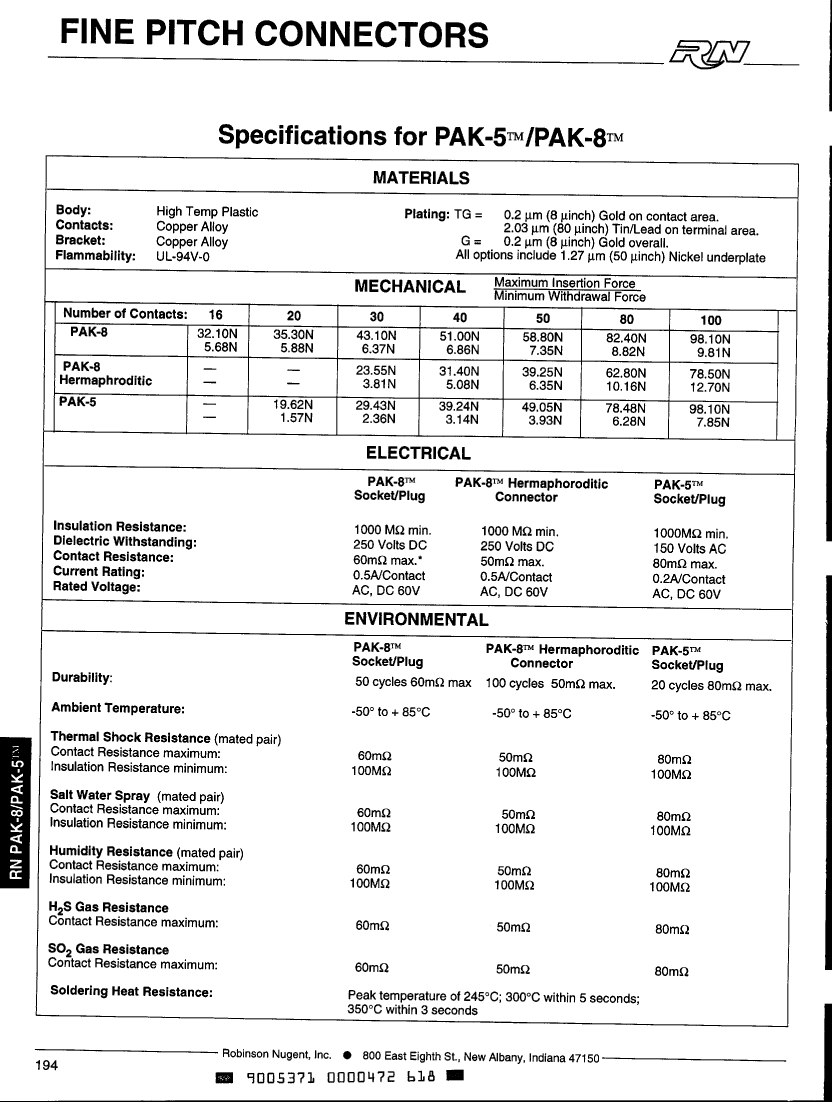

Preview

Download Datasheet

View All

P05-100ST-A-G Related Products

	P05-100ST-A-G	P05-020ST-A-G	P05-030ST-A-G	P05-060ST-A-G	P05-080ST-A-G	P05-080ST-A-TG
Description	HEADER CONNECTOR,PCB MNT,PLUG,100 CONTACTS,SKT,0.02 PITCH	HEADER CONNECTOR,PCB MNT,PLUG,20 CONTACTS,SKT,0.02 PITCH	HEADER CONNECTOR,PCB MNT,PLUG,30 CONTACTS,SKT,0.02 PITCH	HEADER CONNECTOR,PCB MNT,PLUG,60 CONTACTS,SKT,0.02 PITCH	HEADER CONNECTOR,PCB MNT,PLUG,80 CONTACTS,SKT,0.02 PITCH	HEADER CONNECTOR,PCB MNT,PLUG,80 CONTACTS,SKT,0.02 PITCH
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	NONE	NONE	NONE	NONE	NONE	NONE
body width	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch
subject depth	0.12 inch	0.12 inch	0.12 inch	0.12 inch	0.12 inch	0.12 inch
body length	1.079 inch	0.291 inch	0.39 inch	0.685 inch	0.882 inch	0.882 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	80 mΩ	80 mΩ	80 mΩ	80 mΩ	80 mΩ	80 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	150VAC V	150VAC V	150VAC V	150VAC V	150VAC V	150VAC V
Durability	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	3.429 mm	3.429 mm	3.429 mm	3.429 mm	3.429 mm	3.429 mm
Plating thickness	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch
polarization key	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS
Rated current (signal)	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm
Total number of contacts	100	20	30	60	80	80
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-
maximum insertion force	97.856 N	19.5712 N	29.8016 N	-	78.2848 N	78.2848 N
Evacuation force-minimum value	8.0064 N	1.5568 N	2.363 N	-	6.2272 N	6.2272 N
Base Number Matches	1	1	1	1	-	-
