17011004001 datasheet, PDF - EEWORLD Datasheet

17011004001: DescriptionBoard Connector, 84 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size379KB，1 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

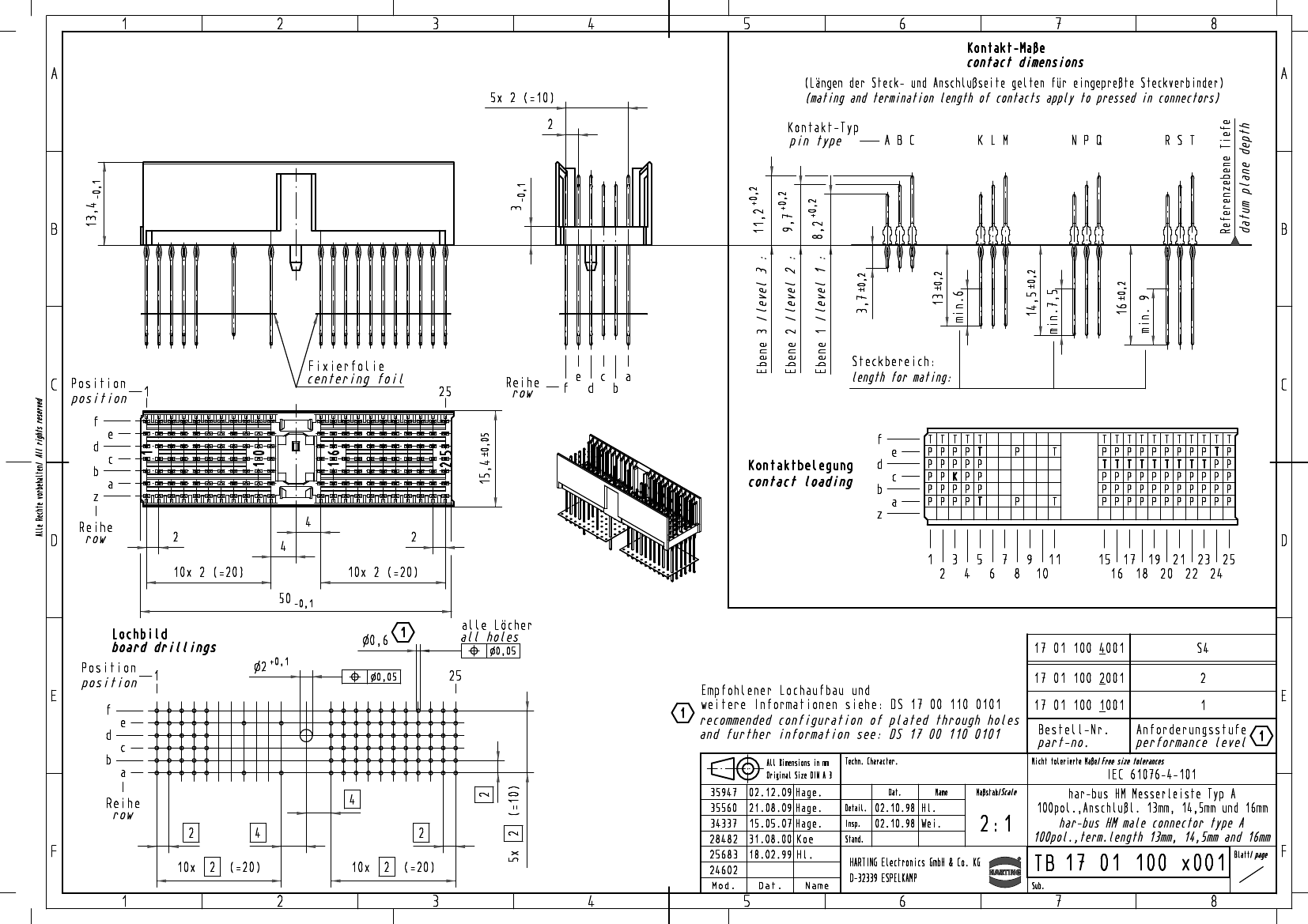

17011004001 Overview

Board Connector, 84 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	16 GROUND SHIELD CONTACTS IN 1 ROW ALSO AVAILABLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	1701
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	84
Base Number Matches	1

	17011004001	17011002001
Description	Board Connector, 84 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	hard metric connectors har-bus HM mel. typ A, afs 2
Reach Compliance Code	unknow	compliant
Other features	16 GROUND SHIELD CONTACTS IN 1 ROW ALSO AVAILABLE	16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	1701	1701
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	5	6
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	84	100
Base Number Matches	1	1
