LTC1146A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> LTC1146A

LTC1146A: DescriptionIC SPECIALTY ANALOG CIRCUIT, Analog IC:Other; CategoryAnalog mixed-signal IC The signal circuit; File Size64KB，1 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LTC1146A Overview

IC SPECIALTY ANALOG CIRCUIT, Analog IC:Other

LTC1146A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-609 code	e0
Number of functions	1
Certification status	Not Qualified
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

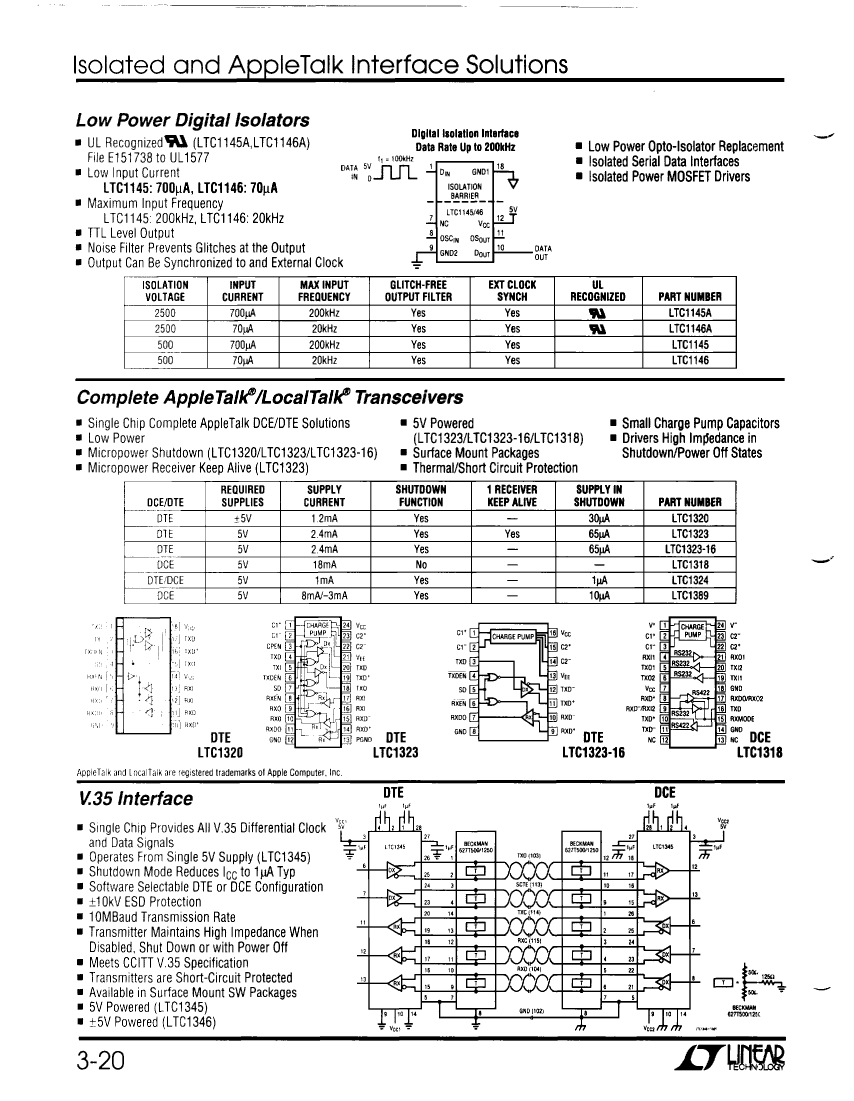

Preview

Download Datasheet

View All

LTC1146A Related Products

	LTC1146A	LTC1323CG-16	LTC1389CSW	LTC1323CSW-16	LTC1145A
Description	IC SPECIALTY ANALOG CIRCUIT, Analog IC:Other	IC LINE TRANSCEIVER, PDSO16, 0.209 INCH, PLASTIC, SSOP-16, Line Driver or Receiver	IC LINE TRANSCEIVER, PDSO24, 0.300 INCH, PLASTIC, SO-24, Line Driver or Receiver	IC LINE TRANSCEIVER, PDSO16, 0.300 INCH, PLASTIC, SO-16, Line Driver or Receiver	IC SPECIALTY ANALOG CIRCUIT, Analog IC:Other
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-609 code	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	-	-
Maker	-	Linear ( ADI )	-	Linear ( ADI )	Linear ( ADI )
Parts packaging code	-	SOIC	SOIC	SOIC	-
package instruction	-	0.209 INCH, PLASTIC, SSOP-16	0.300 INCH, PLASTIC, SO-24	0.300 INCH, PLASTIC, SO-16	-
Contacts	-	16	24	16	-
Differential output	-	YES	YES	YES	-
Number of drives	-	1	3	1	-
Input properties	-	DIFFERENTIAL	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL	-
Interface integrated circuit type	-	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	-
Interface standards	-	APPLETALK	APPLETALK	APPLETALK	-
JESD-30 code	-	R-PDSO-G16	R-PDSO-G24	R-PDSO-G16	-
length	-	6.2 mm	15.4 mm	10.3 mm	-
Number of terminals	-	16	24	16	-
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	-	SSOP	SOP	SOP	-
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	-	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	-
Number of receiver bits	-	1	2	1	-
Maximum seat height	-	2 mm	2.65 mm	2.65 mm	-
Nominal supply voltage	-	5 V	5 V	5 V	-
surface mount	-	YES	YES	YES	-
technology	-	CMOS	CMOS	CMOS	-
Terminal form	-	GULL WING	GULL WING	GULL WING	-
Terminal pitch	-	0.65 mm	1.27 mm	1.27 mm	-
Terminal location	-	DUAL	DUAL	DUAL	-
width	-	5.3 mm	7.5 mm	7.5 mm	-
