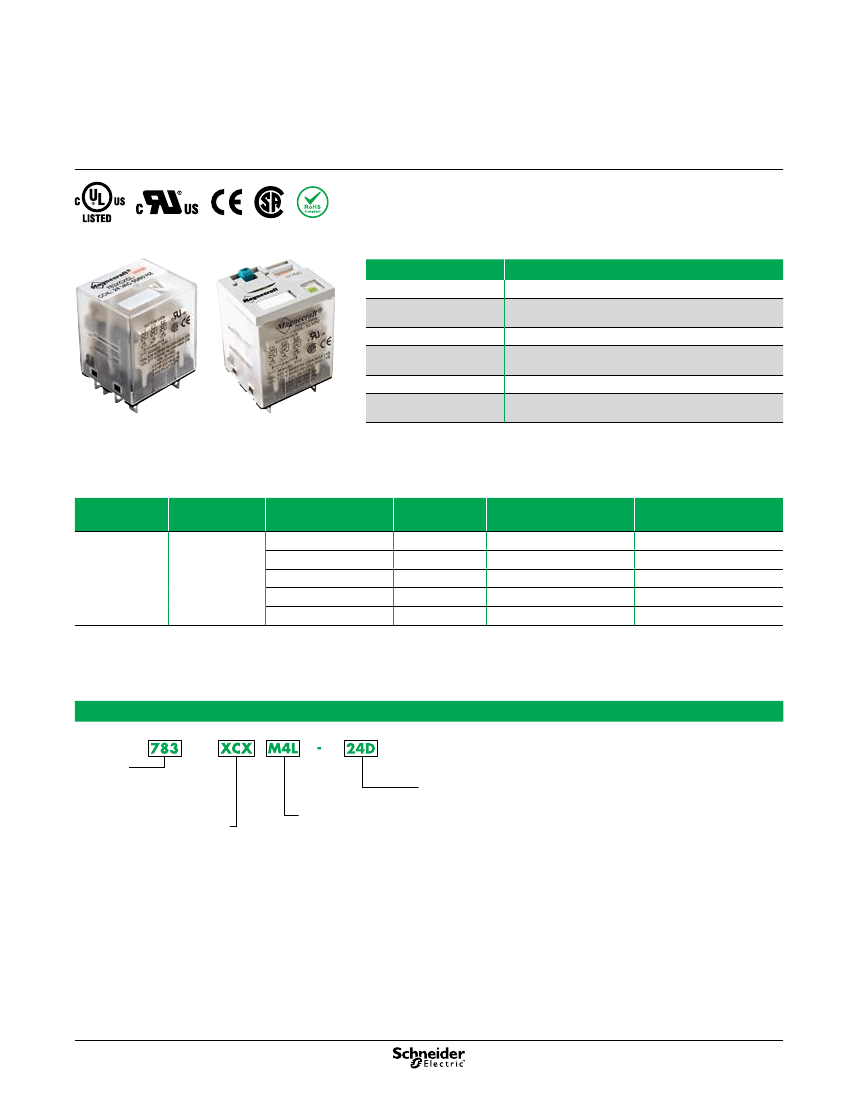

Description
Magnecraft
™
General Purpose Relays
783 Series
3PDT 15 A
Description
UL listed when used with proper Magnecraft
™
sockets
The 783 Series plug-in relays offer clear or full-feature covers with multiple mounting
options and accessories .
Feature
15 A max . switching current
Clear or full-feature cover
options
3PDT contact configuration
Socket mount option
Gold-flashed contacts
Mechanical flag indicator
Benefit
Ideal for automation panels & controls
Full-feature covers include LED indicator & locking test button
Simultaneously control up to 3 separate circuits
Simplifies installation & maintenance while also allowing the use
of protection modules, hold-down clips & other accessories
Reduces contact oxidation & increases shelf life
Standard feature displays relay status during testing or
operation
783 Clear Cover
783 Full-Feature Cover
Contact Rating
Contact
Configuration
Nominal Voltage
24 Vac 50/60 Hz
120 Vac 50/60 Hz
Coil
Resistance (Ω)
103
2770
100
400
8600
Standard Part Number:
Clear Cover
783XCXC-24A
–
783XCXC-12D
783XCXC-24D
783XCXC-110D
Standard Part Number:
Full-Feature
783XCXM4L-24A
783XCXM4L-120A
783XCXM4L-12D
783XCXM4L-24D
–
15 A
3PDT
12 Vdc
24 Vdc
110/125 Vdc
Part Number Explanation
Series:
783 =
783 Series
Relay
Contact Configuration:
XCX =
3PDT
Cover Options:
C =
Clear Cover
M4L =
Locking push
button & LED
Coil Voltages:
VAC =
6-240A
VDC =
6-125D
*Please note that LED-only versions are also available.
Please contact Customer Service for more information (847-441-2540).
17
Specifications
Magnecraft
™
General Purpose Relays
783 Series
3PDT 15 A
Specifications (UL 508)
Part Number
Contact Characteristics
Terminal Style
Contact Configuration
Maximum Current
Contact Materials
Maximum Switching Voltage
Rated Switching Current at Voltage
Blade
3PDT
15 A
Silver Alloy
300 V
Resistive:
12 A at 277 Vac 50/60 Hz; 15 A at 120 Vac 50/60 Hz; 12 A at 28 Vdc
Motor:
1/2 hp at 120 Vac 50/60 Hz; 3/4 hp at 250 Vac 50/60 Hz
Pilot Duty:
B300
100 mA at 5 Vdc (0 .5 W)
783XCX
Minimum Switching Requirement
Coil Characteristics
Maximum Operating Voltage
Maximum Pickup Voltage
Drop-out Voltage Threshold
Average Consumption
General Characteristics
Electrical Life at Rated Load
Mechanical Life (Unpowered)
Operating Time (Response Time)
Dielectric Strength - Between Coil and Contact (AC)
Dielectric Strength - Between Poles (AC)
Ambient Air Temperature around the Device - Storage
Ambient Air Temperature around the Device - Operation
Vibration Resistance - Operational
Shock Resistance
Degree of Protection
Weight
Agency Approvals
110% (AC / DC)
85% (AC); 80% (DC)
15% (AC); 10% (DC)
1 .5 VA (AC); 1 .4 W (DC)
200,000 operations
10,000,000 operations
20 ms
2500 V(rms)
2500 V(rms)
-40 – +85 °C (-40 – +185 °F)
-40 – +55 °C (-40 – +131 °F)
3 g-n at 10-55 Hz
10 g-n
IP 40
60 g (2 .12 oz)
UL with socket, UR (E43641), CE, CSA (LR40787), RoHS
Note: Actual product performance may vary depending on application and environmental conditions.
18
Dimensions,
Wiring Diagrams
Magnecraft
™
General Purpose Relays
783 Series
3PDT 15 A
Dimensions — inches (millimeters)
Clear Cover Dimensions
0.29
(7.4)
1.2
(30.8)
0.02
(0.5)
1.1
(27.9)
0.187
(4.8)
0.39
(9.9)
0.39
(9.9)
1.4
(35.5)
0.19
(4.7)
0.23
(5.9)
0.26
(6.7)
Full-Feature Cover Dimensions
0.27
(7.0)
(0.26)
6.6
1.2
(30.8)
0.39
(9.9)
0.79
(20.0)
0.02
(0.5)
1.1
(27.9)
0.187
(4.8)
1.6
(40.0)
Wiring Diagram
3PDT
1
12
5
14
9
11
13
A1
NEMA
IEC
2
22
6
24
10
21
4
42
8
44
12
41
14
A2
19

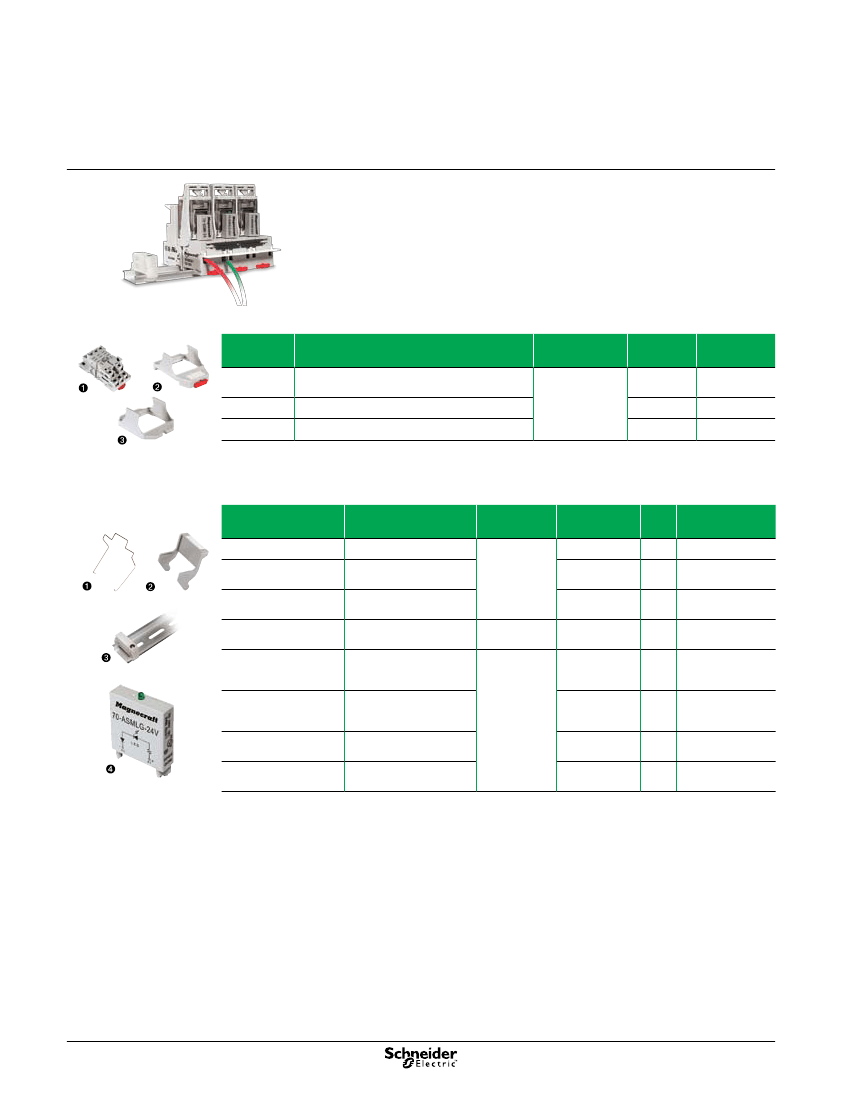

Description,
Specifications
Magnecraft
™
General Purpose Relays
783 Series Accessories
Description
Optional sockets offer customizable, finger-safe™ solutions including protection
modules, hold-down clips, and ID tags . Sockets are DIN rail and panel mount
compatible .
Relay Accessories
Description
Socket
Function
Finger-safe, DIN/Panel mount with screw terminals
and clamping plates
Mount directly to DIN rail
Mount directly to panel
For Use With
Relays
Pkg. Min.
10
Standard
Part Number
70-783D11-1A
16-783C
16-783C1
➊
➋
➌
Adapter
Adapter
783
10
10
Socket Accessories
Description
Metal Spring Clip
Function
For Use With
Coil Voltage
Sockets
–
70-783D11-1A
–
–
–
–
24 Vac/Vdc
Pkg.
Min.
10
10
10
10
10
Standard
Part Number
16-783SC
16-783IDC
16-700DIN
16-DCLIP-1
70-ASMM-24
➊
Secures relay in socket
Secures relay in socket
and provides labeling
Quick installation and
removal of sockets
Holds sockets firmly in
place on DIN rail
MOV Suppressor
(Protects
from damaging electrical
spikes)
Protection Diode
(Protects
external drive circuitry from
inductive voltages)
Plastic ID Hold-Down
Clip
➋
Extruded Aluminum DIN
Rail, 39 .37'' (1000 mm)
➌
DIN Rail End Clip
➌
Large Socket Module
Large Socket Module
Large Socket Module
Large Socket Module
70-783D11-1A
120 Vac/Vdc
110/240 Vac/Vdc
110/240 Vac/Vdc
10
10
10
70-ASMD-250
70-ASMLG-110/240
70-ASMR-110/240
➍
LED Indicator
(Provides coil
status at a glance)
RC Suppressor
(Snubs
back EMF of relay coil)
Note: Use of LED or RC socket module may increase coil power draw by up to 10%.
