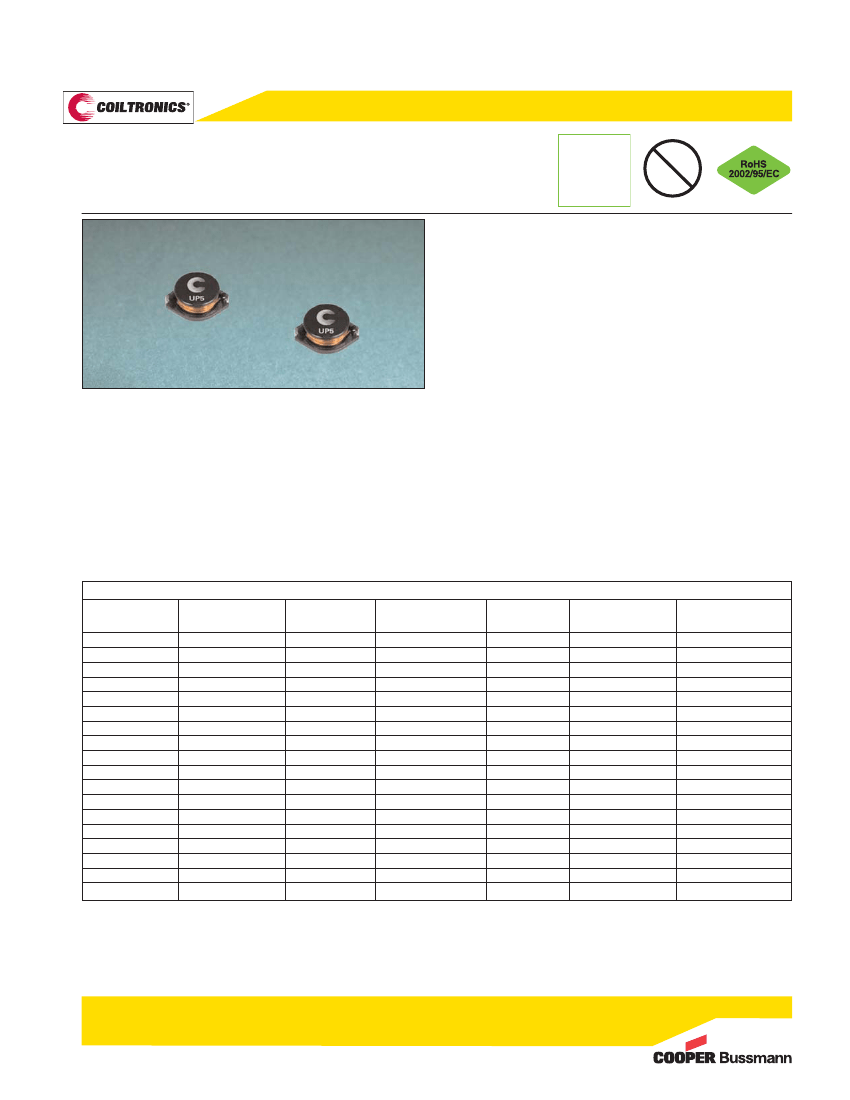

18.54 x 15.24 x 7.11mm maximum surface mount package
Ferrite core material
Inductance range from 1.0µH to 1000µH
Current range from 0.56 to 20 Amps
Frequency range up to 1MHz
RoHS compliant
Environmental Data
• Storage temperature range: -40°C to +125 °C
• Operating temperature range: -40°C to +125°C
(ambient + self-temperature rise)
• Solder reflow temperature: J-STD-020D compliant
Packaging
• Supplied in tape and reel packaging, 250 parts per reel,
13” diameter reel
Product Specifications
OCL
Part Number
5
UP5-1R0-R
UP5-1R5-R
UP5-2R2-R
UP5-3R3-R
UP5-5R6-R
UP5-100-R
UP5-150-R
UP5-220-R
UP5-330-R
UP5-470-R
UP5-680-R
UP5-101-R
UP5-151-R
UP5-221-R
UP5-331-R
UP5-471-R
UP5-681-R
UP5-102-R
1
µH ± 20%
1.0
1.5
2.2
3.3
5.6
10.0
15.0
22.0
33.0
47.0
68.0
100
150
220
330
470
680
1000
Irms
2
Amps
8.6
7.5
7.1
6.2
5.3
4.3
4.0
3.5
3.0
2.6
2.3
1.8
1.5
1.2
1.0
0.82
0.72
0.56
Isat
3
Amps@25°C
20.0
18.0
16.0
14.0
12.0
10.0
8.0
7.0
5.5
4.5
3.5
3.0
2.6
2.4
1.9
1.4
1.2
1.0
SRF MHz
Typical
140
110
75.0
70.0
45.0
21.0
16.0
13.0
11.0
9.0
6.5
5.7
4.5
3.7
3.0
2.7
2.2
2.0
DCR mΩ@20°C
Maximum
9.0
12.0
14.0
18.0
20.0
31.0
36.0
47.0
66.0
86.0
130
190
250
380
560
850
1100
1800
K-factor
4
73.61
60.22
50.96
44.16
31.55
24.54
20.07
16.99
14.09
11.62
9.60
7.98
6.56
5.39
4.39
3.70
3.08
2.54
1 Open Circuit Inductance (OCL) Test Parameters: 100kHz, 1.0Vrms, 0.0Adc
2 Irms: DC current for an approximate
ΔT
rise of 40°C without core loss. Derating is necessary for
AC currents. PCB layout, trace thickness and width, air-flow and proximity of other heat
generating components will affect the temperature rise. It is recommended the part temperature
not exceed 125°C under worst case operating conditions verified in the end application.
3 Isat: Peak current for approximately 10% rolloff at 25°C.
4 K-factor: Used to determine Bp-p for core loss (see graph). Bp-p = K * L *
ΔI
, Bp-p: (Gauss),
K: (K-factor from table), L: (inductance in
μH), ΔI
(peak-to-peak ripple current in amps).
6 Part Number Definition: UP5-xxx-R
• UP5 = Product code and size
• xxx= Inductance value in
μH,
R = decimal point. If no R is present, then third digit
equals the number of zeros.
• “-R” suffix = RoHS compliant
0411
BU-SB11453
Page 1 of 4
Data Sheet: 4409

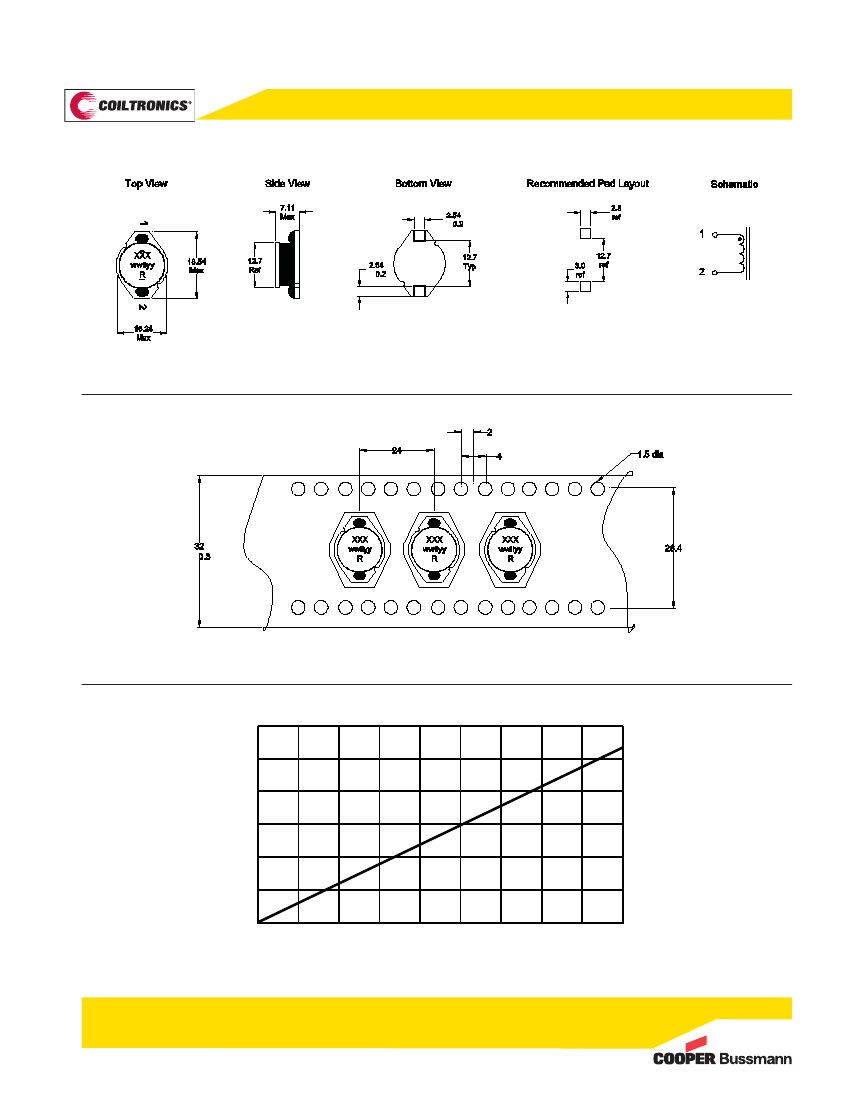

Dimensions - mm
±
±
Part Marking: xxx = Inductance value in
μH
(R = Decimal point). If no “R” is present, then the third digit equals the number of zeros.
wwllyy = Date code
R = Revision level
Packaging Information - mm
±
Supplied in tape-and-reel packaging, 250 parts per reel, 13” diameter reel.
Temperature Rise vs. Total Loss
60
50
Temerature Rise (°C)
40
30
20
10
0
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
Total Loss (W)
0411
BU-SB11453
Page 2 of 4
Data Sheet: 4409

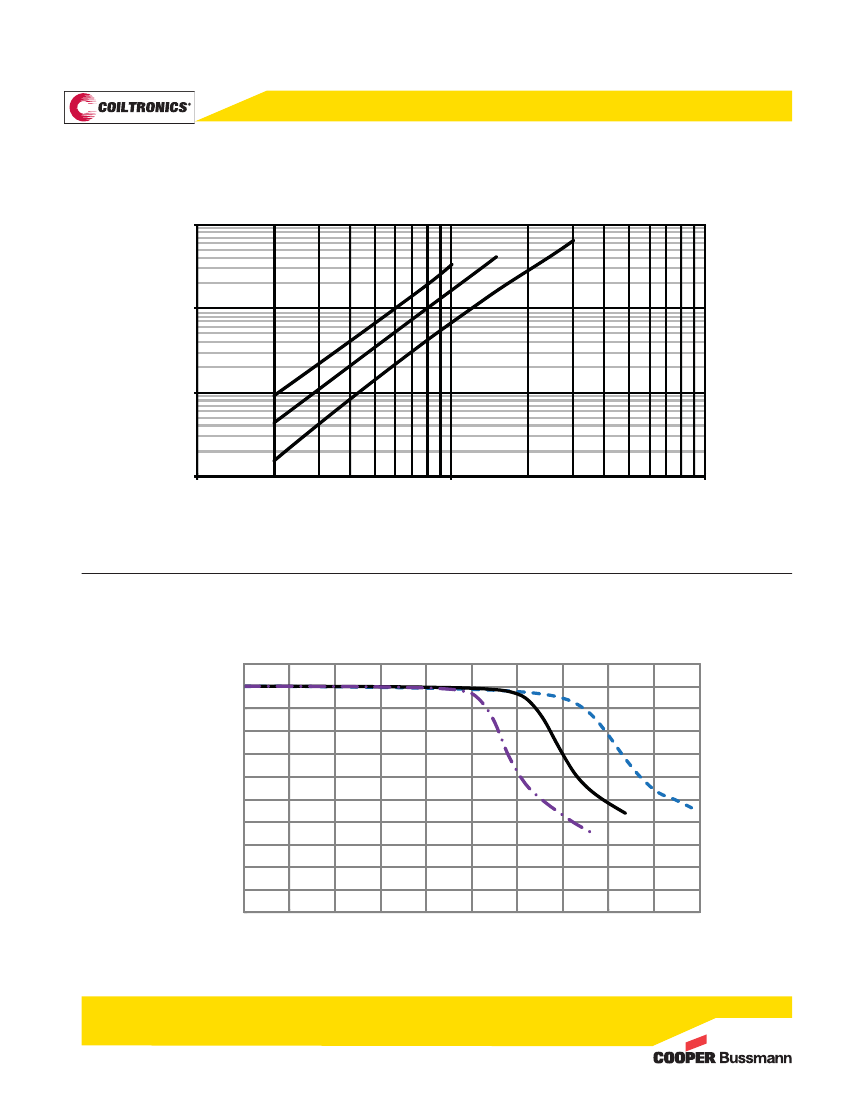

Core Loss
Core Loss vs. Bp-p
1
300kHz
200kHz
100kHz
Core Loss (W)
0.1
0.01
0.001
100
1000
10000
Bp-p (Gauss)
inductance Characteristics
110%
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%
100%
120%
140%
160%
180%
200%
20%
40%
60%
80%
0%
% of OCL vs. I
sat
% of OCL
-40°C
+25°C
+85°C
% of I
sat
0411
BU-SB11453
Page 3 of 4
Data Sheet: 4409
Solder Reflow Profile
T
P
Max. Ramp Up Rate = 3°C/s
Max. Ramp Down Rate = 6°C/s
T
L
Preheat
A
t
t
P
T
C
-5°C
T
ab
l
e
1 -
S
t
a
n
da
r
d S
nP
b S
ol
de
r (T c)
Package
Thickness
<2.5mm
_
>2.5mm
Volume
mm
3
<350
235°C
220°C
Volume
mm
3
_
>350
220°C
220°C
Temperature
T
smax
T
ab
l
e
2 - L
ead
(P
b
) Fr
ee S
ol
de
r (T c)
T
smin
t
s
Volume
Package
mm
3
Thickness
<350
<1.6mm
260°C
1.6 – 2.5mm 260°C
>2.5mm
250°C
Time
Volume
mm
3
350 - 2000
260°C
250°C
245°C
Volume
mm
3
>2000
260°C
245°C
245°C
25°C
Time 25°C to Peak
Reference JDEC J-STD-020D
Profile Feature
Preheat
and Soak
• Temperature min. (Tsmin)
• Temperature max. (Tsmax)
• Time (Tsmin to Tsmax) (ts)
Average ramp up rate Tsmax to Tp
Liquidous temperature (T
L
)
Time
at
liquidous (tL)
Peak package
body
temperature (TP)*
Time (tp)** within 5 °C of the specified classification temperature (Tc)
Average ramp-down rate (Tp to Tsmax)
Time 25°C to Peak Temperature
Standard SnPb Solder
100°C
150°C
60-120 Seconds
3°C/
Second
Max.
183°C
60-150 Seconds
Table 1
20
Seconds**
6°C/ Second
Max.
6
Minutes Max.
Lead (Pb) Free
Solder
150°C
200°C
60-120 Seconds
3°C/
Second
Max.
217°C
60-150 Seconds
Table 2
30
Seconds**
6°C/ Second
Max.
8 Minutes Max.
*
Tolerance for peak profile temperature (Tp) is
defined as a
supplier minimum
and a
user maximum.
**
Tolerance for time
at
peak profile temperature (tp) is
defined as a
supplier minimum
and a
user maximum.
North America
Cooper Electronic Technologies
1225 Broken Sound Parkway NW
Suite F
Boca Raton, FL 33487-3533
Tel: 1-561-998-4100
Fax: 1-561-241-6640
Toll Free: 1-888-414-2645
Cooper Bussmann
P.O. Box 14460
St. Louis, MO 63178-4460
Tel: 1-636-394-2877
Fax: 1-636-527-1607
Europe
Cooper Electronic Technologies
Cooper (UK) Limited
Burton-on-the-Wolds
Leicestershire • LE12 5TH UK
Tel: +44 (0) 1509 882 737
Fax: +44 (0) 1509 882 786
Cooper Electronic Technologies
Avda. Santa Eulalia, 290
08223
Terrassa, (Barcelona), Spain
Tel: +34 937 362 812
+34 937 362 813
Fax: +34 937 362 719
Asia Pacific
Cooper Electronic Technologies
1 Jalan Kilang Timor
#06-01 Pacific Tech Centre
Singapore 159303
Tel: +65 278 6151
Fax: +65 270 4160
