891-002-21SA1-0A2-12T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 891-002-21SA1-0A2-12T

Preview

891-002-21SA1-0A2-12T: DescriptionD Nanominiature Connector, 21 Contact(s), Female, 0.025 inch Pitch, Crimp Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

891-002-21SA1-0A2-12T Overview

D Nanominiature Connector, 21 Contact(s), Female, 0.025 inch Pitch, Crimp Terminal, Locking, Receptacle,

891-002-21SA1-0A2-12T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
Other features	WIRE LENGTH: 12 INCH
body width	0.125 inch
subject depth	0.115 inch
body length	0.525 inch
Body/casing type	RECEPTACLE
Connector type	D NANOMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact completed and terminated	GOLD PLATINUM
Contact point gender	FEMALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	250VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.39 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	891-002
Plug contact pitch	0.025 inch
Match contact row spacing	0.04 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	THREADED
Installation type	CABLE AND PANEL
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	WITH CABLE ASSEMBLY
Rated current (signal)	1 A
reliability	COMMERCIAL
Shell surface	CADMIUM
Shell material	ALUMINUM ALLOY
Termination type	CRIMP
Total number of contacts	21
Maximum wire diameter	32 AWG
Minimum wire diameter	32 AWG
Evacuation force-minimum value	.1112 N
Base Number Matches	1

Preview

Download Datasheet

View All

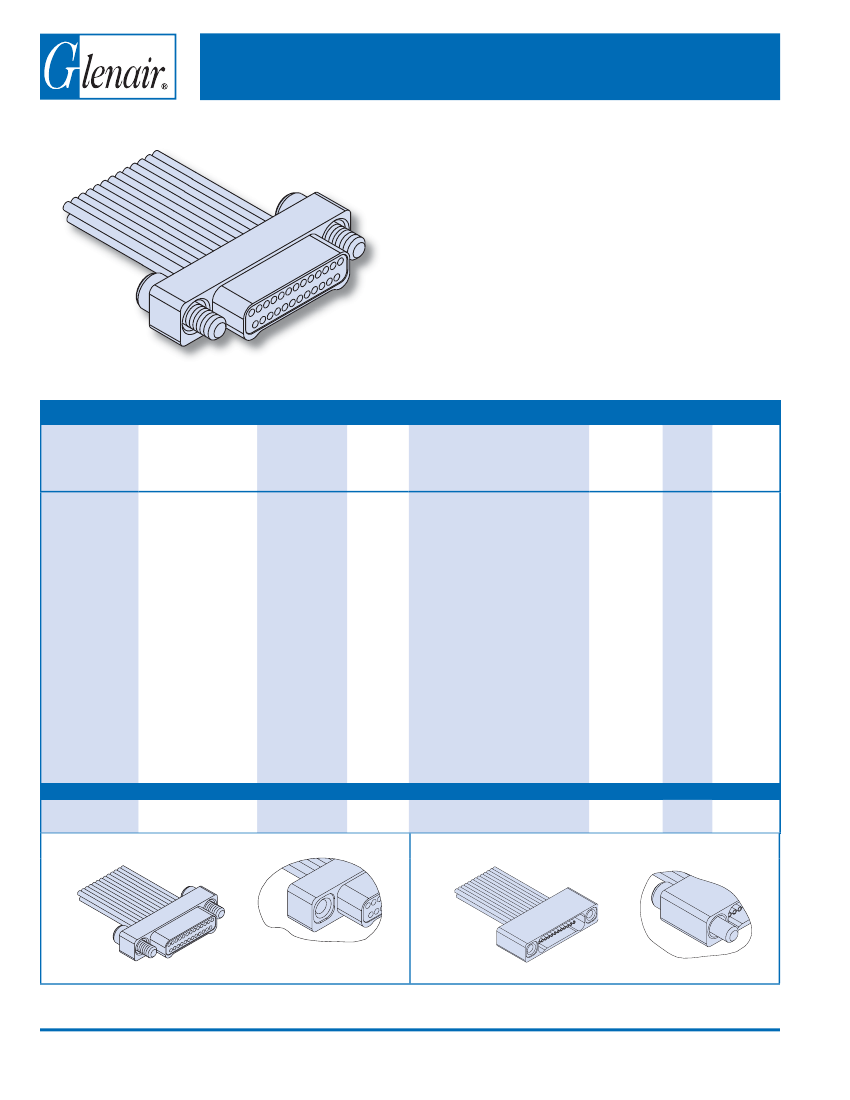

Series 89 Nanominiature Connectors

Two Row Pigtail Assemblies, Insulated Wire

891-001 and -002

Glenair’s Pigtail Nano Connectors

feature gold alloy

NanoPin contacts. Contacts are precision-crimped

to insulated, stranded wire. These nanomimiature

connectors offer premium preformance and reliability

for demanding applications. Contact spacing is .025

inches. 1 amp current rating, DWV rating 300 volts AC.

Wire gages #30 and #32 AWG.

NanoPin Contact System

assures premium performance in

demanding environments. The gold/platinum alloy contacts

will stand up to years of exposure without corrosion.

Typical Applications

include UAV's, satellites, missile

systems and geophysical instruments.

HOW TO ORDER NANOMINIATURE CONNECTORS WITH INSULATED WIRE

Insert

Arrangement/

Contact Type

Plugs (891-001)

Series

891-001

Plug, Pin

Contacts,

Two Row,

Nanominiature

Shell Material

and Finish

A1

Wire

Gage

0

Wire Type

A

Wire

Color

Code

Wire

Length

Inches Hardware

18

Wire

Length In

Inches. “18”

Speciﬁes 18

Inches.

891-002

Receptacle,

Socket Contacts, Receptacles (891-002)

Two Row,

9S

Nanominiature

9P

15P

21P

25P

31P

37P

51P

1

–

White

Aluminum Shell, #30 AWG Ultralightweight XLETFE Insulation,

2

–

Yellow

Cadmium Plating

Silver-Coated Ultrahigh-Strength

7

–

Ten Color

Copper (Not available for #32 AWG)

Repeat

2

A2

#32 AWG

Aluminum Shell,

B

Electroless

Nickel Plating

Extruded PTFE Insulation, NEMA

HP3-ETX (MIL-W-16878/6)

J

Jackscrew,

#0-80

T

Threaded

Inserts, #0-

80 Female

(Titanium

or Stainless

Steel Shells

Only)

T

Titanium Shell,

Unplated

C

Cross-Linked Modiﬁed ETFE

Insulation, MIL-W-22759/33

(Not available for #32 AWG)

15S

21S

25S

31S

37S

51S

S

Stainless Steel

Shell, Passivated

Sample Part Number

891-002

— 37S

A1

—0

A

1

— 12

J

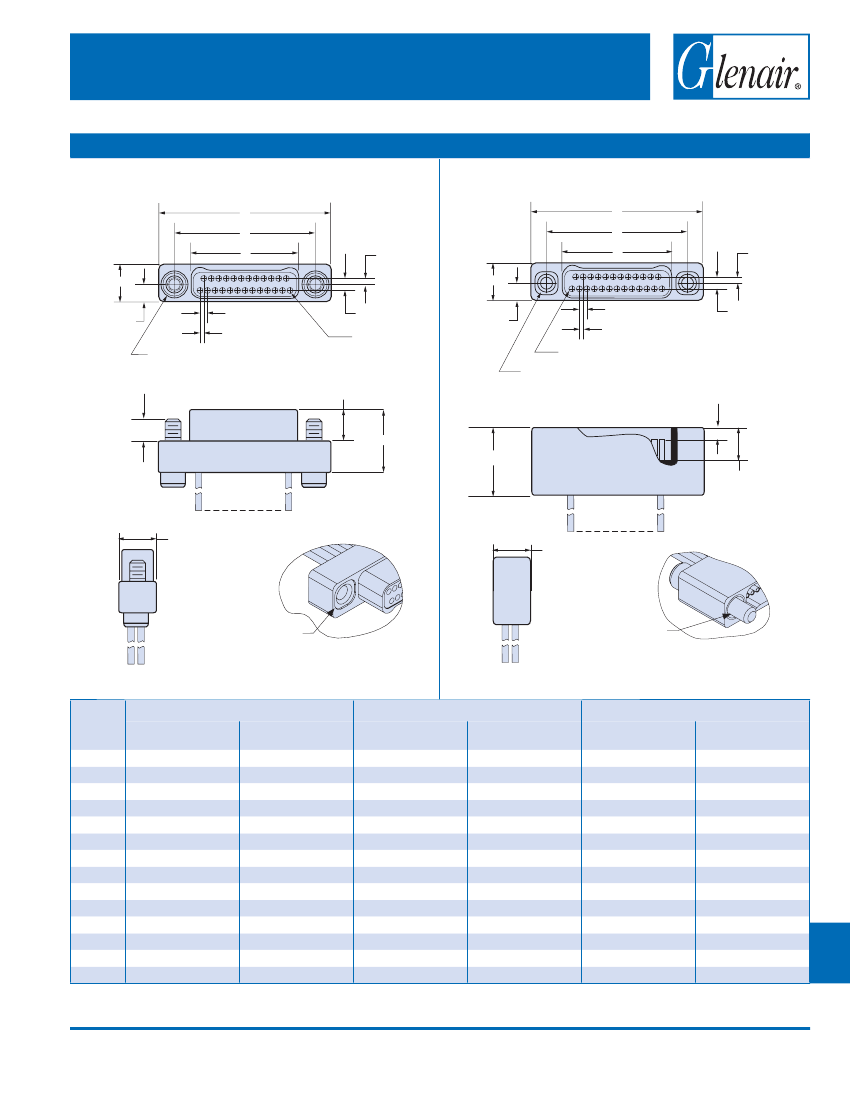

PLUG (PIN) CONNECTOR

RECEPTACLE (SOCKET) CONNECTOR

“J” Jackscrew Option

)“T” Threaded Insert Option

Titanium or Stainless Steel

Shells Only

“T” Threaded Insert Option

“J” Jackscrew Option

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

P-28

E-Mail: sales@glenair.com
