C85FBBABBFREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> C85FBBABBFREQ

C85FBBABBFREQ: DescriptionLVDS Output Clock Oscillator, 19.44MHz Min, 320MHz Max, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size81KB，4 Pages; ManufacturerBliley Technologies Inc; Environmental Compliance

Download Datasheet Parametric View All

C85FBBABBFREQ Overview

LVDS Output Clock Oscillator, 19.44MHz Min, 320MHz Max, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN

C85FBBABBFREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Maximum operating frequency	320 MHz
Minimum operating frequency	19.44 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVDS

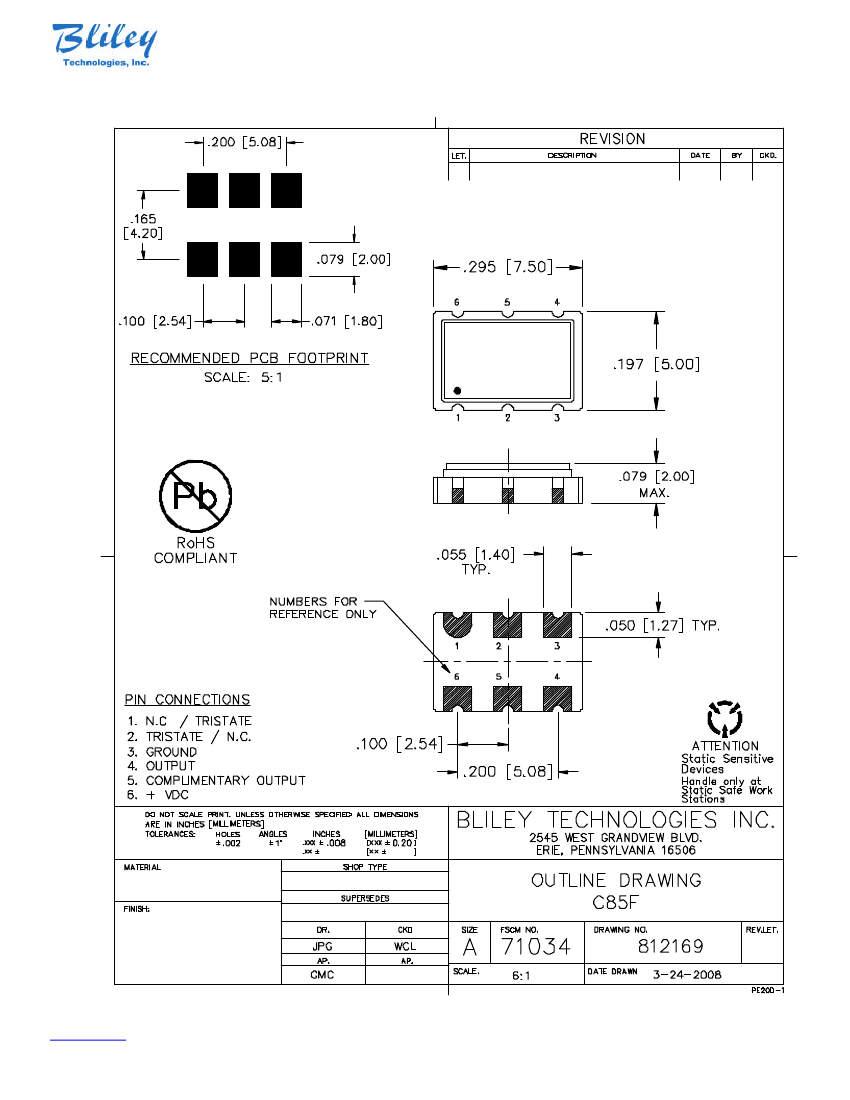

physical size	7.5mm x 5.0mm x 2.0mm
longest rise time	1 ns
Maximum supply voltage	2.75 V
Minimum supply voltage	2.25 V
Nominal supply voltage	2.5 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

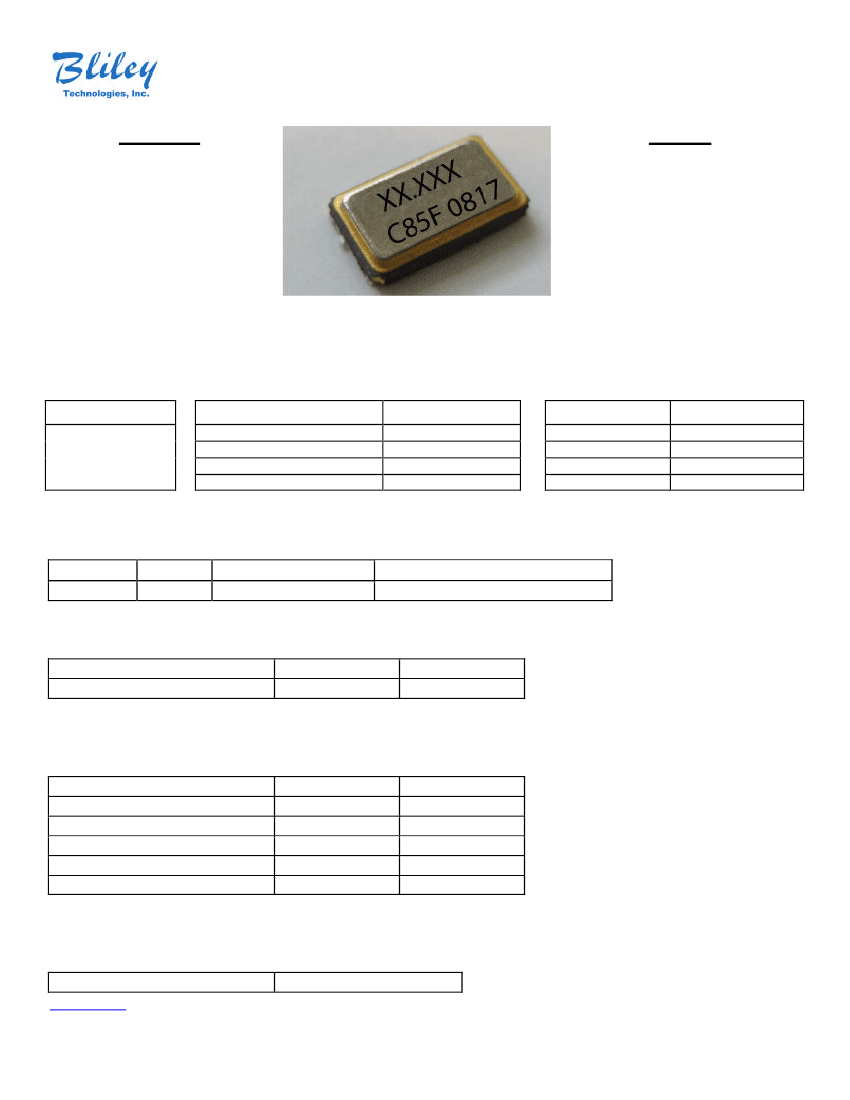

7.0 mm x 5.0 mm XO

Description:

The C85F Crystal Oscillator

(XO) Series products provide a

wide range of options in

temperature stability, operating

frequency range, and ultra low

phase jitter in a 7.0 x 5.0 mm

ceramic package.

•

C85F series

Feature s:

Available in frequencies from 19.44

MHz to 320 MHz.

Tri-state Enable/Disable

Hermetically sealed ceramic

SMD package

RoHS-6/Leadfree compliant

Integrated jitter 0.3 pS max.

PECL and LVDS outputs

Frequency Range, Operating Temperature, and Frequency Stability:

Frequency

Operating Temperature

Product Code

Freq. Stability

Product Code

-10 to +60C

+/- 25 ppm

19.44 to 320MHz

0 to +70C

+/- 50 ppm

-20 to 70C

+/- 75 ppm

-40 to 85C

+/-100ppm

•

***Frequency stability includes 25C tolerance, drift over temperature, change versus voltage and load, 20 year aging,

shock and vibration

•

Aging:

(typical at 20MHz after 30 days continuous operation)

Frequency

20 MHz

Timeframe

1st Year

Aging

+/- 5.0ppm

Product Code

N/A

Supply Voltage (Vs):

Power Supply (Vs)

Product Code

2.5 Vdc +/-10%

3.3 Vdc +/-10%

Supply Voltage Sensitivity ( +/- 10% ) : +/- 2 ppm max. frequency change

Current Consumption ( I

( at 2.5V )

Frequency Range ( MHz )

19.440 to 160.000

160.000 to 250.000

250.000 to 320.000

PECL / LVDS

75 / 50

100 / 50

100 / 65

( at 3.3V )

PECL / LVDS

75 / 50

100 / 50

100 / 65

Environmental:

Storage Temperature

www.bliley.com

-55 to +125

°C

2545 West Grandview Blvd Erie, PA. 16506

Page 1 of 4

Tel (814) 838-3571

Rev 1.2
