JANKC1N4568A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> JANKC1N4568A

JANKC1N4568A: DescriptionZener Diode, 6.4V V(Z), 5%, Silicon,; CategoryDiscrete semiconductor diode; File Size262KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

JANKC1N4568A Overview

Zener Diode, 6.4V V(Z), 5%, Silicon,

JANKC1N4568A Parametric

Parameter Name	Attribute value
package instruction	S-XUUC-N3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	S-XUUC-N3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	UNCASED CHIP
Certification status	Not Qualified
Guideline	MIL-19500/452
Nominal reference voltage	6.4 V
surface mount	YES
technology	ZENER
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER
Voltage temperatureCoeff-Max	0.064 mV/°C
Maximum voltage tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

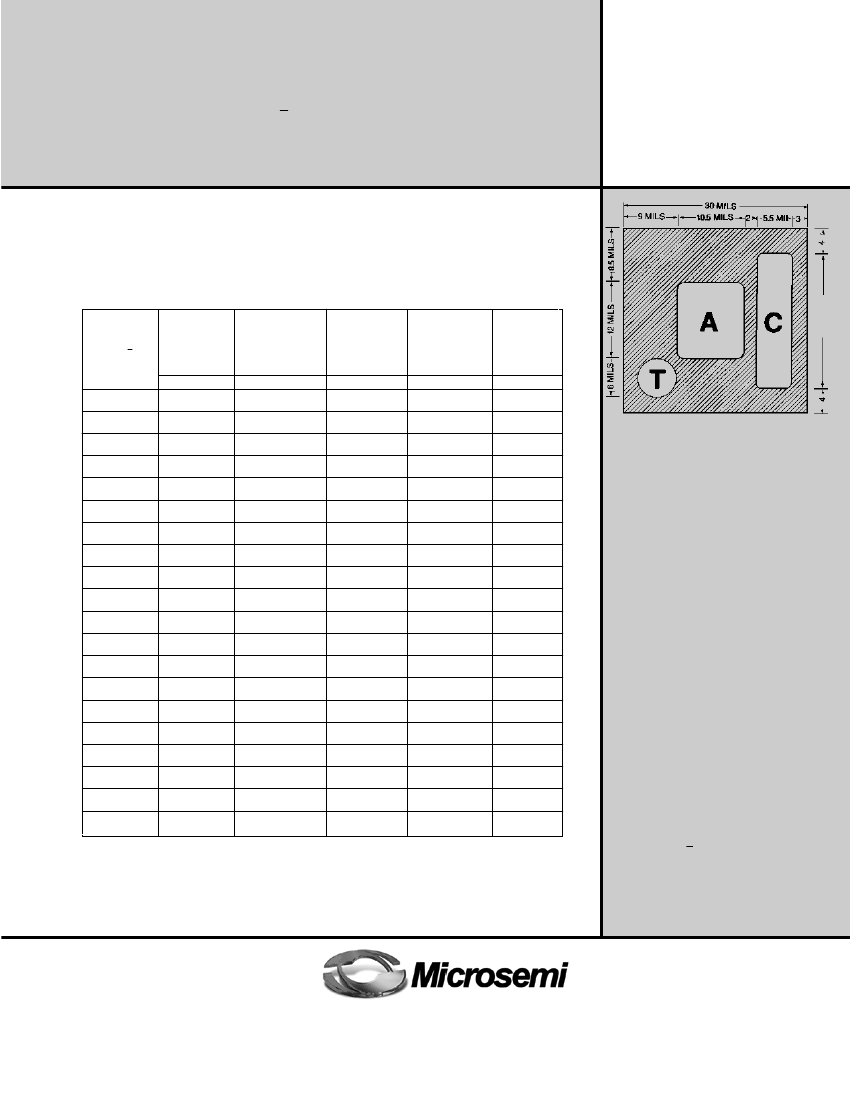

• 1N4565A THRU 1N4584A AVAILABLE IN

JANHC AND JANKC

PER MIL-PRF-19500/452

• ALL JUNCTIONS COMPLETELY PROTECTED WITH SILICON DIOXIDE

• 6.4 VOLT ZENER VOLTAGE + 5%

• ELECTRICALLY EQUIVALENT TO 1N4565 THRU 1N4584A

• COMPATIBLE WITH ALL WIRE BONDING AND DIE ATTACH TECHNIQUES,

WITH THE EXCEPTION OF SOLDER RELOW

MAXIMUM RATINGS

Operating Temperature: -65°C to +175°C

Storage Temperature: -65°C to +175°C

CD4565

thru

CD4584A

REVERSE LEAKAGE CURRENT

= 2

A @ 25°C & V

= 3 Vdc

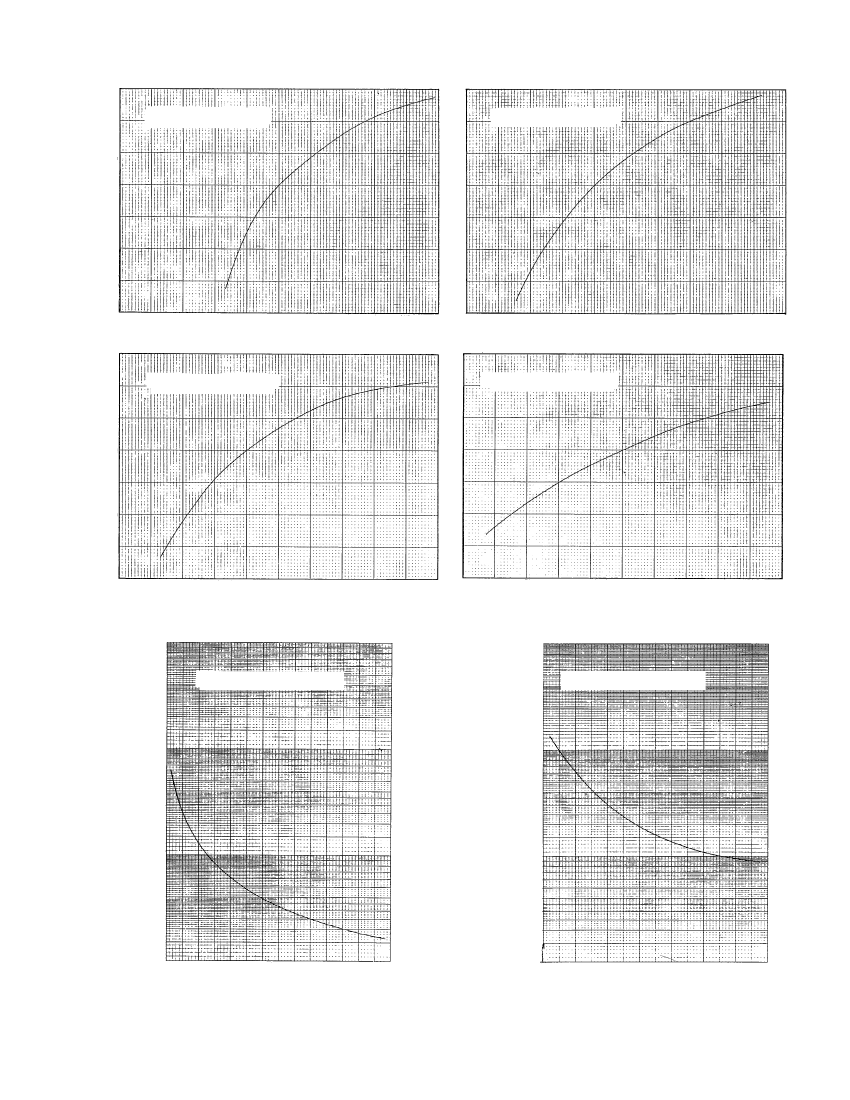

ELECTRICAL CHARACTERISTICS

@ 25°C, unless otherwise speci½ed.

ZENER

TEST

CURRENT

l ZT

EFFECTIVE

TEMPERATURE

COEFFICIENT

VOLTAGE

TEMPERATURE

STABILITY

³VZT MAX

-55° to + 100°

(Note 2)

100

2.5

100

2.5

100

2.5

100

2.5

TEMPERATURE

RANGE

MAXIMUM

ZENER

IMPEDANCE

ZZT

(Note 1)

°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

0 to + 75°C

-55 to + 100°C

OHMS

200

100

22 MILS

TYPE

NUMBER

6.4V + 5%

CD4565

CD4565A

CD4566

CD4566A

CD4567

CD4567A

CD4568

CD4568A

CD4569

CD4569A

CD4570

CD4570A

CD4571

CD4571A

CD4572

CD4572A

CD4573

CD4573A

CD4574

CD4574A

CD4575

CD4575A

CD4576

CD4576A

CD4577

CD4577A

CD4578

CD4578A

CD4579

CD4579A

CD4580

CD4580A

CD4581

CD4581A

CD4582

CD4582A

CD4583

CD4583A

CD4584

CD4584A

1.0

2.0

4.0

%/°C

.01

.005

.002

.001

.0005

.01

.005

.002

.001

.0005

.01

.005

.002

.001

.0005

.01

.005

.002

.001

.0005

Backside is not cathode and

must be electrically isolated.

T = Metallization Test Pad

DESIGN DATA

METALLIZATION:

Top: C (Cathode) ..................Al

A (Anode) ..................... Al

Back: .......................................Au

AL THICKNESS.........25,000

Min

GOLD THICKNESS......4,000

Min

CHIP THICKNESS.

..............10 Mils

CIRCUIT LAYOUT DATA:

Backside must be electrically

isolated.

Backside is not cathode.

For Zener operation cathode must

be operated positive with respect

to anode.

TOLERANCES:

ALL

Dimensions + 2 mils

NOTE 1

Zener impedance is derived by superimposing on l ZT A 60Hz rms a.c. current

equal to 10% of l ZT.

NOTE 2

The maximum allowable change observed over the entire temperature range

i.e.,the diode voltage will not exceed the speci½ed mV at any discrete

temperature between the established limits, per JEDEC standard No.5.

6 LAKE STREET, LAWRENCE,

PHONE (978) 620-2600

WEBSITE: http://www.microsemi.com

M A S S A C H U S E T T S 01841

FAX (978) 689-0803
