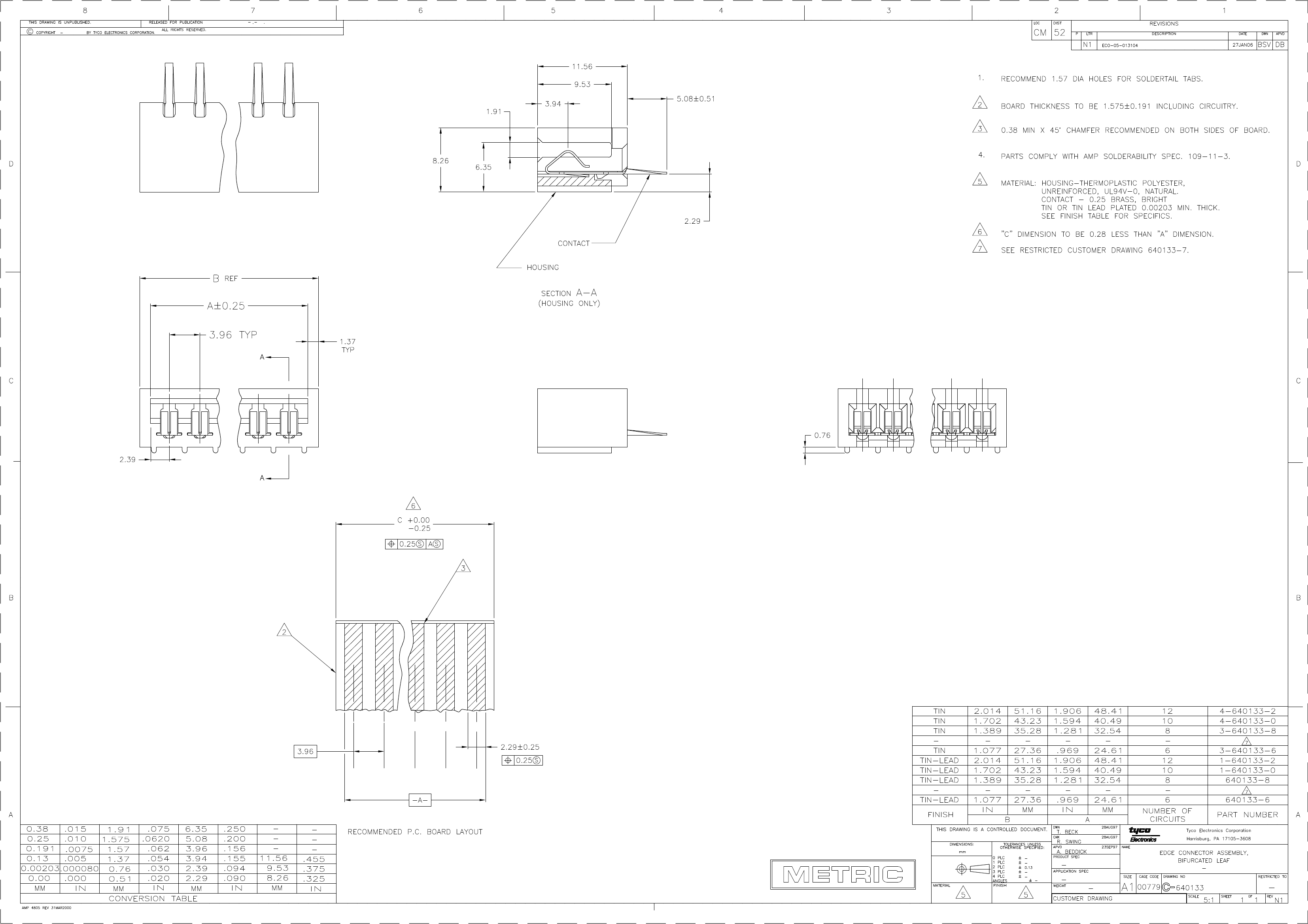

EDGE CONNECTOR,PCB MNT,RECEPT,12 CONTACTS,0.156 PITCH,PC TAIL TERMINAL,HOLE .125-.137
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | compli |
| Other features | NO MOUNTING EARS |
| body width | 0.325 inch |
| subject depth | 0.455 inch |
| body length | 2.638 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| contact mode | RECTANGULAR |
| Contact resistance | 4 mΩ |
| Contact style | BELLOWED TYPE |
| Dielectric withstand voltage | 1250VAC V |
| Durability | 25 Cycles |
| maximum insertion force | 44.48 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | NATURAL |
| insulator material | POLYESTER |
| Manufacturer's serial number | 640133 |
| Plug contact pitch | 0.156 inch |
| Installation option 1 | HOLE .125-.137 |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| PCB contact pattern | RECTANGULAR |
| Rated current (signal) | 3 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.2 inch |
| Terminal pitch | 3.9624 mm |
| Termination type | SOLDER |
| Total number of contacts | 12 |
| Evacuation force-minimum value | .9174 N |
| Base Number Matches | 1 |
| 1-640133-2 | 3-640133-8 | 3-640133-6 | 4-640133-0 | 4-640133-2 | |
|---|---|---|---|---|---|
| Description | EDGE CONNECTOR,PCB MNT,RECEPT,12 CONTACTS,0.156 PITCH,PC TAIL TERMINAL,HOLE .125-.137 | 8 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER | 6 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER | 10 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER | 12 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER |
| Is it Rohs certified? | incompatible | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compli | compliant | compliant | compliant | compliant |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Manufacturer's serial number | 640133 | 640133 | 640133 | 640133 | 640133 |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 |
| Terminal pitch | 3.9624 mm | 3.96 mm | 3.96 mm | 3.96 mm | 3.96 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 12 | 8 | 6 | 10 | 12 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Maker | - | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity |
| Contact to complete cooperation | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | - | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| DIN compliance | - | NO | NO | NO | NO |
| Filter function | - | NO | NO | NO | NO |
| IEC compliance | - | NO | NO | NO | NO |
| MIL compliance | - | NO | NO | NO | NO |
| Mixed contacts | - | NO | NO | NO | NO |
| Options | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| UL Flammability Code | - | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
