40.61.9.024.0000 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> 40.61.9.024.0000

40.61.9.024.0000: DescriptionElectromechanical Relay, SPDT, 36VDC (Coil), 650mW (Coil), Random, AC Output; CategoryMechanical and electronic products relay; File Size3MB，16 Pages; ManufacturerFINDER; Environmental Compliance

Download Datasheet Parametric Compare View All

40.61.9.024.0000 Overview

Electromechanical Relay, SPDT, 36VDC (Coil), 650mW (Coil), Random, AC Output

40.61.9.024.0000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
body width	12.4 mm
body height	25 mm
Body length or diameter	29 mm
Coil operating voltage (DC)	17.5 V
Coil power	650 mW
Coil release voltage (DC)	2.4 V
Coil resistance	900 Ω
Maximum coil voltage (DC)	36 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power M load	0.73HP@250VAC
Contact (AC) maximum rated power R load	4000VA@250VAC
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Dielectric strength between coil and contacts	2800 Vrms
Dielectric strength between breaking contacts	707.21 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Cadmium Oxide
Input switching control type	Random
Number of terminals	8
operating hours	7 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	29mm x 12.4mm x 25mm
Guideline	CSA; DEMKO; FIMKO; NEMKO; RINA; SEMKO; UL; VDE
Relay style	1 FORM C
Relay function	SPDT
release time	3 ms
Terminal length	0.005 inch
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

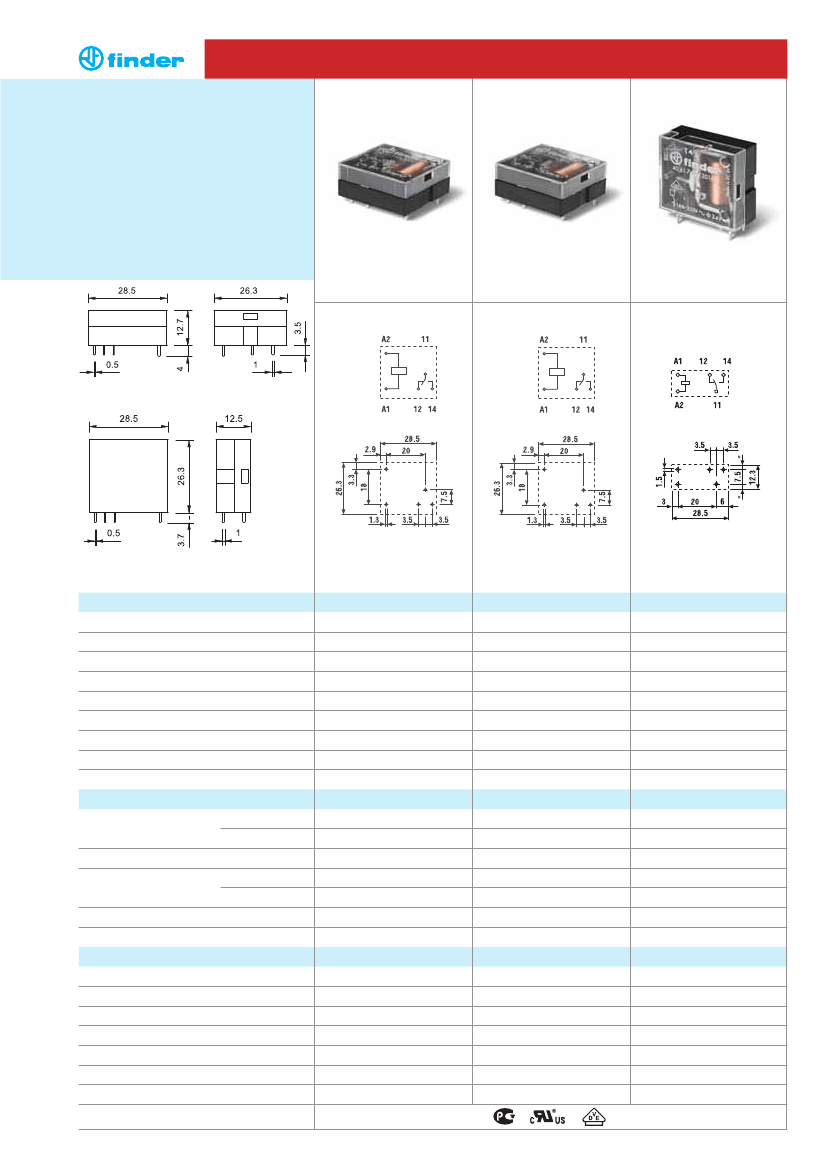

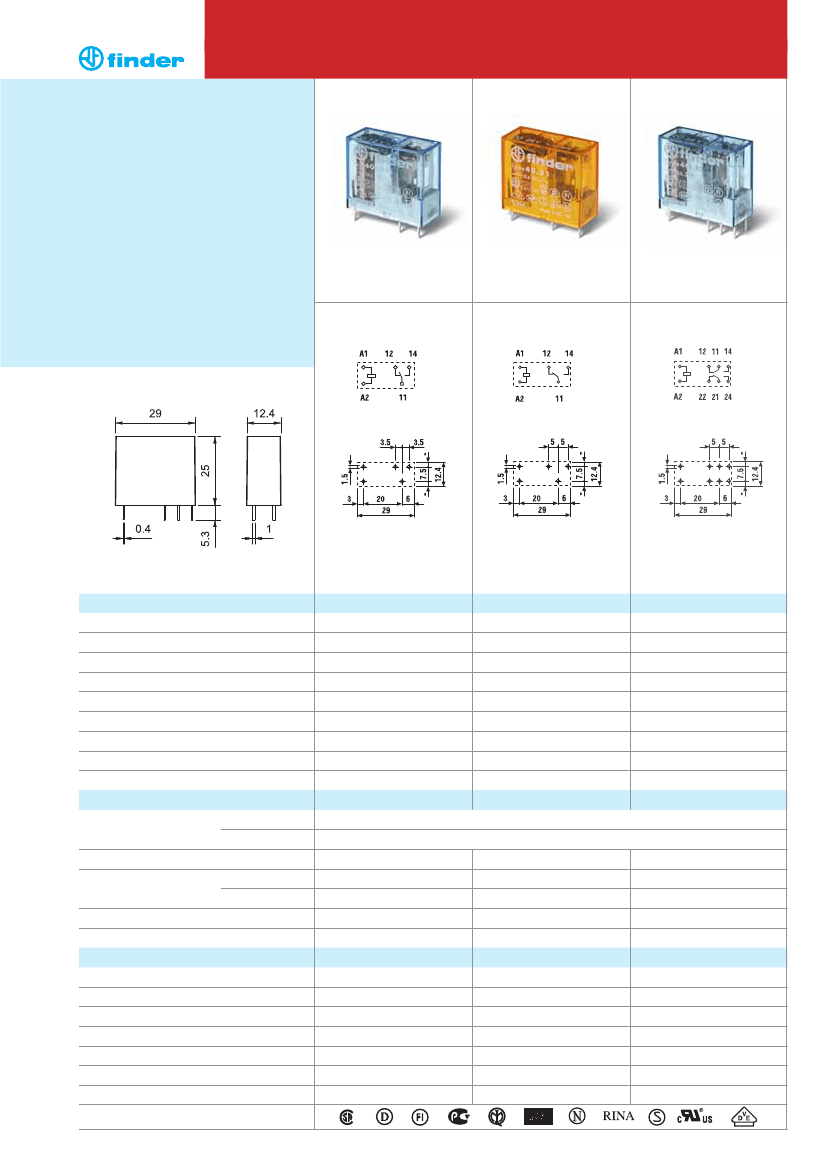

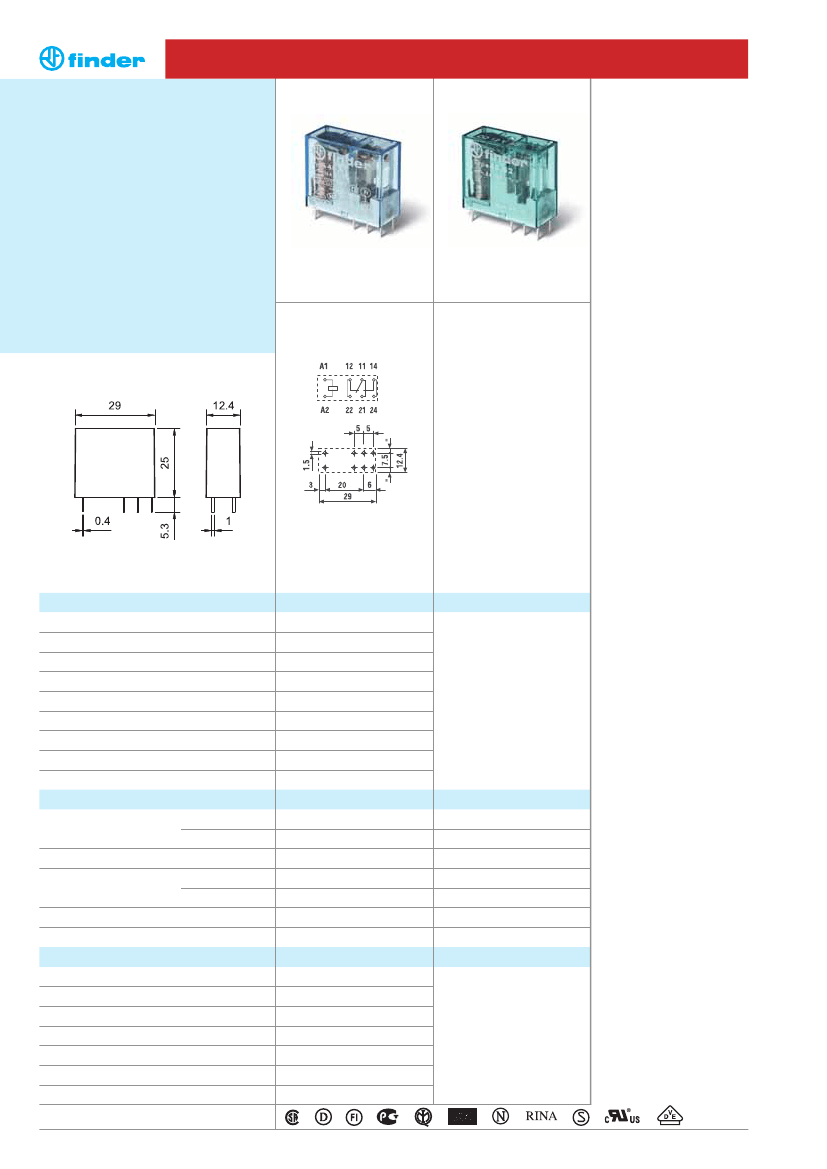

40 Series - Miniature PCB/Plug-in relays 8 - 10 - 16 A

Features

1 & 2 Pole relay range

40.31 - 1 Pole 10 A (3.5 mm pin pitch)

40.51 - 1 Pole 10 A (5 mm pin pitch)

40.52 - 2 Pole 8 A (5 mm pin pitch)

PCB mount

- direct or via PCB socket

35 mm rail mount

- via screw and screwless sockets

DC coils (standard or sensitive) & AC coils

•

Cadmium Free contact material

•

8 mm, 6 kV (1.2/50 µs) isolation, coil-contacts

•

UL Listing (certain relay/socket combinations)

•

Flux proof: RT II standard, (RT III option)

•

95 series sockets

•

Coil EMC suppression

•

Timer accessories 86 series

•

40.31

40.51

40.52

3.5 mm contact pin pitch

1 Pole 10 A

•

PCB or 95 series sockets

•

5 mm contact pin pitch

1 Pole 10 A

•

PCB or 95 series sockets

•

5 mm contact pin pitch

2 Pole 8 A

•

PCB or 95 series sockets

•

RATINGS SEE

“General technical information” page

Contact specification

Contact configuration

Rated current/Maximum peak current

Rated load AC1

Rated load AC15 (230 V AC)

Single phase motor rating (230 V AC)

Breaking capacity DC1: 30/110/220 V

Minimum switching load

Standard contact material

Coil specification

Nominal voltage (U

)

V AC (50/60 Hz)

V DC

Rated power AC/DC/sens. DC VA (50 Hz)/W/W

Operating range

Holding voltage

Must drop-out voltage

Technical data

Mechanical life AC/DC

Electrical life at rated load AC1

Operate/release time

cycles

AC/DC

Rated voltage/Maximum switching voltage V AC

Copper side view

1 CO (SPDT)

10/20

250/400

2,500

500

0.37

10/0.3/0.12

300 (5/5)

AgNi

1 CO (SPDT)

10/20

250/400

2,500

500

0.37

10/0.3/0.12

300 (5/5)

AgNi

6 - 12 - 24 - 48 - 60 - 110 - 120 - 230 - 240

2 CO (DPDT)

8/15

250/400

2,000

400

0.3

8/0.3/0.12

300 (5/5)

AgNi

mW (V/mA)

5 - 6 - 7 - 9 - 12 - 14 - 18 - 21 - 24 - 28 - 36 - 48 - 60 - 90 - 110 - 125

1.2/0.65/0.5

(0.8…1.1)U

0.8 U

/0.4 U

0.2 U

/0.1 U

10 · 10

/20 · 10

200 · 10

7/3 - (12/4 sensitive)

6 (8 mm)

1,000

–40…+85

RT II**

1.2/0.65/0.5

(0.8…1.1)U

(0.73…1.5)U

/(0.73…1.75)U

0.8 U

/0.4 U

0.2 U

/0.1 U

10 · 10

/20 · 10

200 · 10

7/3 - (12/4 sensitive)

6 (8 mm)

1,000

–40…+85

RT II**

1.2/0.65/0.5

(0.8…1.1)U

(0.73…1.5)U

/(0.73…1.75)U

0.8 U

/0.4 U

0.2 U

/0.1 U

10 · 10

/20 · 10

100 · 10

7/3 - (12/4 sensitive)

6 (8 mm)

1,000

–40…+85

RT II**

DC/sens. DC (0.73…1.5)U

/(0.73…1.75)U

Insulation between coil and contacts (1.2/50 µs) kV

Dielectric strength between open contacts V AC

Ambient temperature range

Environmental protection

Approvals

(according to type)

°C

** See general technical information “Guidelines for automatic flow solder processes” page

40.61.9.024.0000 Related Products

	40.61.9.024.0000	40.61.9.012.0000	40.61.9.024.0300
Description	Electromechanical Relay, SPDT, 36VDC (Coil), 650mW (Coil), Random, AC Output	Electromechanical Relay, SPDT, 18VDC (Coil), 650mW (Coil), Random, AC Output	Electromechanical Relay, SPST, 36VDC (Coil), 650mW (Coil), Random, AC Output
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99
body width	12.4 mm	12.4 mm	12.4 mm
body height	25 mm	25 mm	25 mm
Body length or diameter	29 mm	29 mm	29 mm
Coil operating voltage (DC)	17.5 V	8.8 V	17.5 V
Coil power	650 mW	650 mW	650 mW
Coil release voltage (DC)	2.4 V	1.2 V	2.4 V
Coil resistance	900 Ω	220 Ω	900 Ω
Maximum coil voltage (DC)	36 V	18 V	36 V
Nominal coil voltage	24 V	12 V	24 V
Coil/Input Power Type	DC	DC	DC
Contact (AC) maximum rated power M load	0.73HP@250VAC	0.73HP@250VAC	0.73HP@250VAC
Contact (AC) maximum rated power R load	4000VA@250VAC	4000VA@250VAC	4000VA@250VAC
Contact (AC) maximum rated R load	16A@250VAC	16A@250VAC	16A@250VAC
Maximum contact current (AC)	16 A	16 A	16 A
Maximum contact voltage (AC)	250 V	250 V	250 V
Contact/Output Power Type	AC	AC	AC
Dielectric strength between coil and contacts	2800 Vrms	2800 Vrms	2800 Vrms
Dielectric strength between breaking contacts	707.21 Vrms	707.21 Vrms	707.21 Vrms
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
End contact material	Silver Cadmium Oxide	Silver Cadmium Oxide	Silver Cadmium Oxide
Input switching control type	Random	Random	Random
Number of terminals	8	8	8
operating hours	7 ms	7 ms	7 ms
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PCB hole count	8	8	8
physical size	29mm x 12.4mm x 25mm	29mm x 12.4mm x 25mm	29mm x 12.4mm x 25mm
Guideline	CSA; DEMKO; FIMKO; NEMKO; RINA; SEMKO; UL; VDE	CSA; DEMKO; FIMKO; NEMKO; RINA; SEMKO; UL; VDE	CSA; DEMKO; FIMKO; NEMKO; RINA; SEMKO; UL; VDE
Relay style	1 FORM C	1 FORM C	1 FORM A
Relay function	SPDT	SPDT	SPST
release time	3 ms	3 ms	3 ms
Terminal length	0.005 inch	0.005 inch	0.005 inch
Termination type	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1
