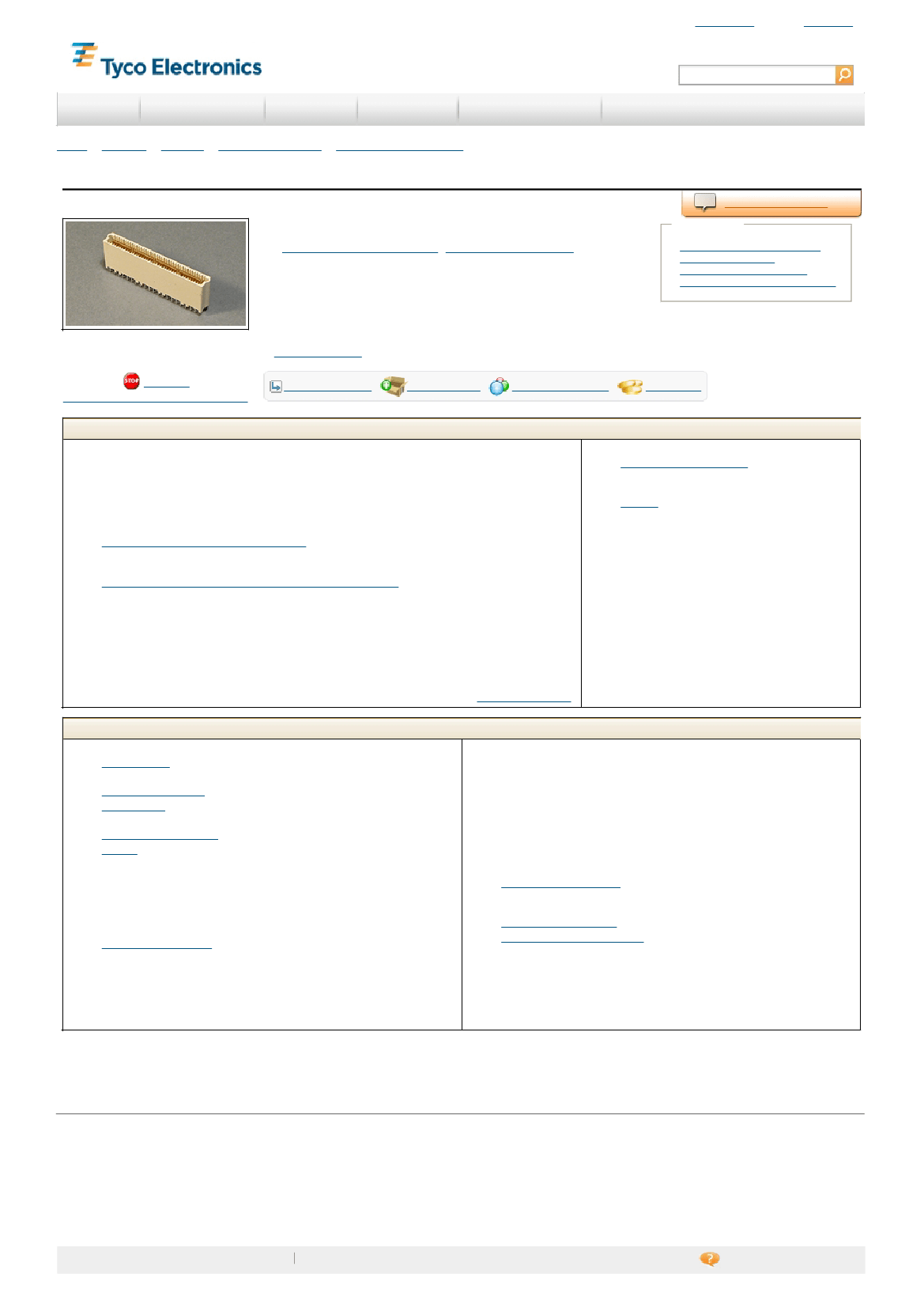

5149009-2 Product Details
Live Product Chat
.050 Centerline Micro-Strip Connectors
Always EU R oHS/ELV C om plia nt
(
Sta te m e nt of C om plia nce
)
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
5149009-2
T E I nternal N umber: 5 1 4 9 0 0 9 - 2
Product Highlights:
l
C onnector
l
C onnector Type = Plug
l
60 Positions
l
Vertical Mount Angle
l
PC B Termination Type = Soldertail
View all Features
Obsolete
C ontact Product Information C enter
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
C onnector, Micro-Strip, Board To Board
(PDF, English)
Application Specifications:
l
Micro-Strip Board-To-Board Plug and Receptacle C onne...
(PDF, English)
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Product Type
= C onnector
l
C onnector Type = Plug
l
Number of Positions
= 60
l
Mount Angle
= Vertical
l
PC B Termination Type = Soldertail
l
PC B Retention Feature
= No
l
Guides
= Without
l
Flame Retardant = Yes
Mechanical Attachment:
l
Bus Bar Material = Phosphor Bronze
Termination Related Features:
l
Tail Length (mm [in])
= 2.41 [0.095]
l
Bus Bar Mating Area Plating = Gold (30)
l
Bus Bar Termination Area Plating = Matte Tin with Nickel underplated
Contact Related Features:
l
Signal C ontact Material = Phosphor Bronze
l
Signal C ontact Mating Area Plating = Gold (30)
l
Signal C ontact Termination Area Plating = Matte Tin with Nickel
underplated
Housing Related Features:
l
Housing Material = High Temperature Thermoplastic
Configuration Related Features:
l
Stack Height (mm [in])
= 18.75 [0.738]
Industry Standards:
l
RoHS/ELV C ompliance
= RoHS compliant, ELV compliant
l
Lead Free Solder Processes
= Wave solder capable to 240?C , Wave
solder capable to 260?C , Wave solder capable to 265?C
l
RoHS/ELV C ompliance History = Always was RoHS compliant
Other:
l
Brand = AMP
Additional Information:
l
Product Line Information
