MR2-6G datasheet, PDF - EEWORLD Datasheet

MR2-6G: DescriptionROTARY SWITCH,STRAIGHT,DP6T,ON-ON,6,WP NOTCHED TERMINAL,ROTARY SHAFT; CategoryMechanical and electronic products switch; File Size342KB，2 Pages; ManufacturerNidec Copal Electronics

Download Datasheet Parametric Compare View All

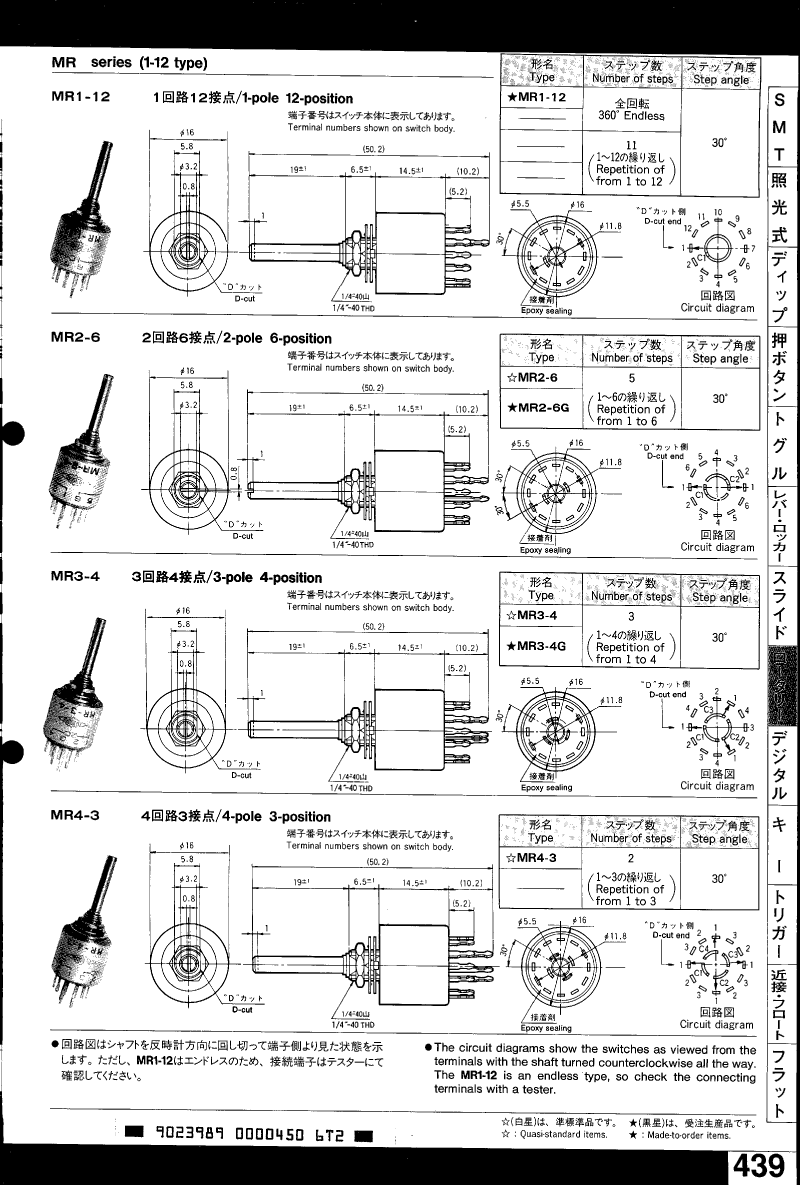

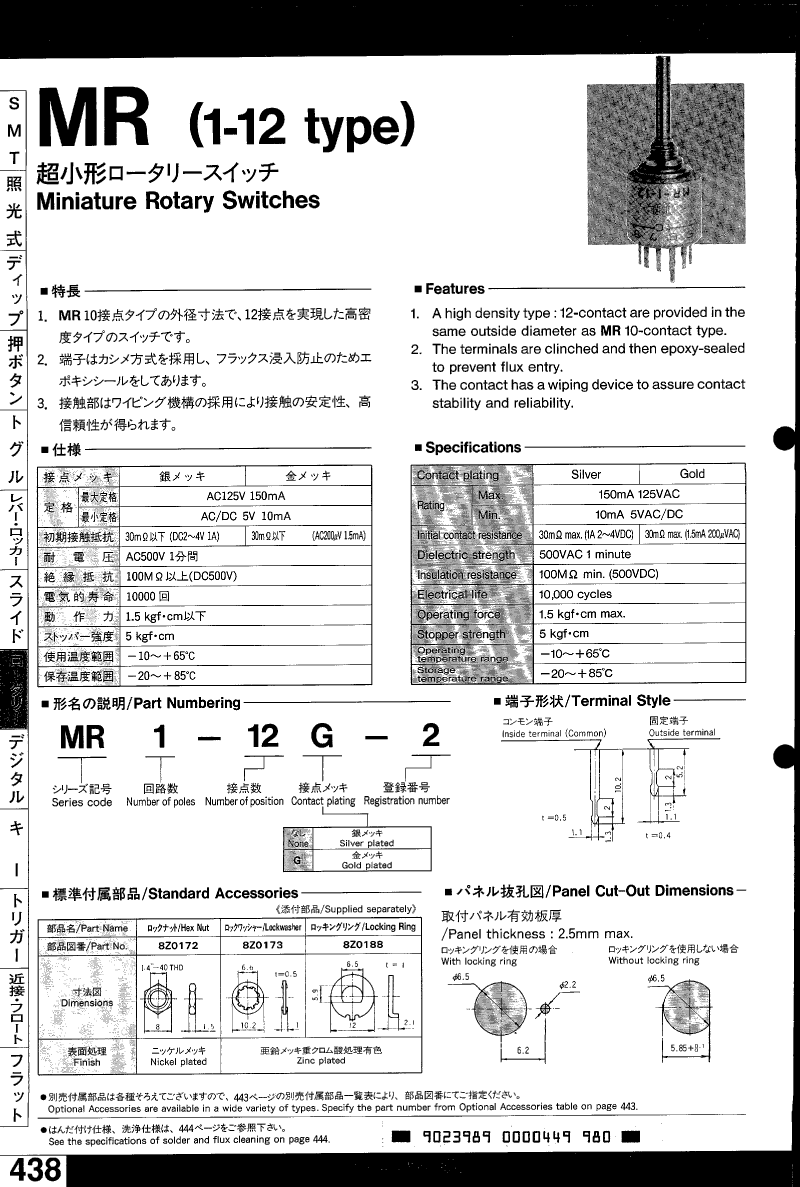

MR2-6G Overview

ROTARY SWITCH,STRAIGHT,DP6T,ON-ON,6,WP NOTCHED TERMINAL,ROTARY SHAFT

Parameter Name	Attribute value
Reach Compliance Code	unknown
Actuator length	0.748 inch
Actuator type	ROTARY SHAFT
body height	14.5034 mm
Body length or diameter	16.002 mm
Nozzle length	0.256 inch
Casing type	1/4-40
Center contact plating	GOLD
Contact (AC) maximum rated R load	0.15A@125VAC
Maximum contact current (AC)	0.15 A
Maximum contact current (DC)	0.01 A
Contact (DC) maximum rated R load	0.01A@5VDC
Contact function	ON-ON
Contact resistance	0.03 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	5 V
Dielectric withstand voltage	500VAC V
Electrical life	10000 Cycle(s)
End contact plating	GOLD
Graduation angle	30 deg
Insulation resistance	100000000 Ω
Manufacturer's serial number	MR
Number of positions	6
Maximum operating temperature	65 °C
Minimum operating temperature	-10 °C
seal	EPOXY
Solderability	HAND
Switch action	CIRCULAR
switch function	DP6T
Switch type	ROTARY SWITCH
Terminal length	0.402 inch
Termination type	WIRE
Washability	SOLVENT
Base Number Matches	1

	MR2-6G	MR2-6
Description	ROTARY SWITCH,STRAIGHT,DP6T,ON-ON,6,WP NOTCHED TERMINAL,ROTARY SHAFT	ROTARY SWITCH,STRAIGHT,DP6T,ON-ON,6,WP NOTCHED TERMINAL,ROTARY SHAFT
Reach Compliance Code	unknown	unknown
Actuator length	0.748 inch	0.748 inch
Actuator type	ROTARY SHAFT	ROTARY SHAFT
body height	14.5034 mm	14.5034 mm
Body length or diameter	16.002 mm	16.002 mm
Nozzle length	0.256 inch	0.256 inch
Casing type	1/4-40	1/4-40
Center contact plating	GOLD	SILVER
Contact (AC) maximum rated R load	0.15A@125VAC	0.15A@125VAC
Maximum contact current (AC)	0.15 A	0.15 A
Maximum contact current (DC)	0.01 A	0.01 A
Contact (DC) maximum rated R load	0.01A@5VDC	0.01A@5VDC
Contact function	ON-ON	ON-ON
Contact resistance	0.03 mΩ	0.03 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	125 V	125 V
Maximum contact voltage (DC)	5 V	5 V
Dielectric withstand voltage	500VAC V	500VAC V
Electrical life	10000 Cycle(s)	10000 Cycle(s)
End contact plating	GOLD	SILVER
Graduation angle	30 deg	30 deg
Insulation resistance	100000000 Ω	100000000 Ω
Manufacturer's serial number	MR	MR
Number of positions	6	6
Maximum operating temperature	65 °C	65 °C
Minimum operating temperature	-10 °C	-10 °C
seal	EPOXY	EPOXY
Solderability	HAND	HAND
Switch action	CIRCULAR	CIRCULAR
switch function	DP6T	DP6T
Switch type	ROTARY SWITCH	ROTARY SWITCH
Terminal length	0.402 inch	0.402 inch
Termination type	WIRE	WIRE
Washability	SOLVENT	SOLVENT
Base Number Matches	1	1
