TOSHIBA Transistor Silicon PNP · NPN Epitaxial Type
(PCT Process) (Bias Resistor Built-in Transistor)
RN4905FE
Switching, Inverter Circuit, Interface Circuit and
Driver Circuit Applications
Two devices are incorporated into an Extreme-Super-Mini (6-pin)
package.
Incorporating a bias resistor into a transistor reduces parts count.
Reducing the parts count enables the manufacture of ever more
compact equipment and lowers assembly cost.
Unit: mm

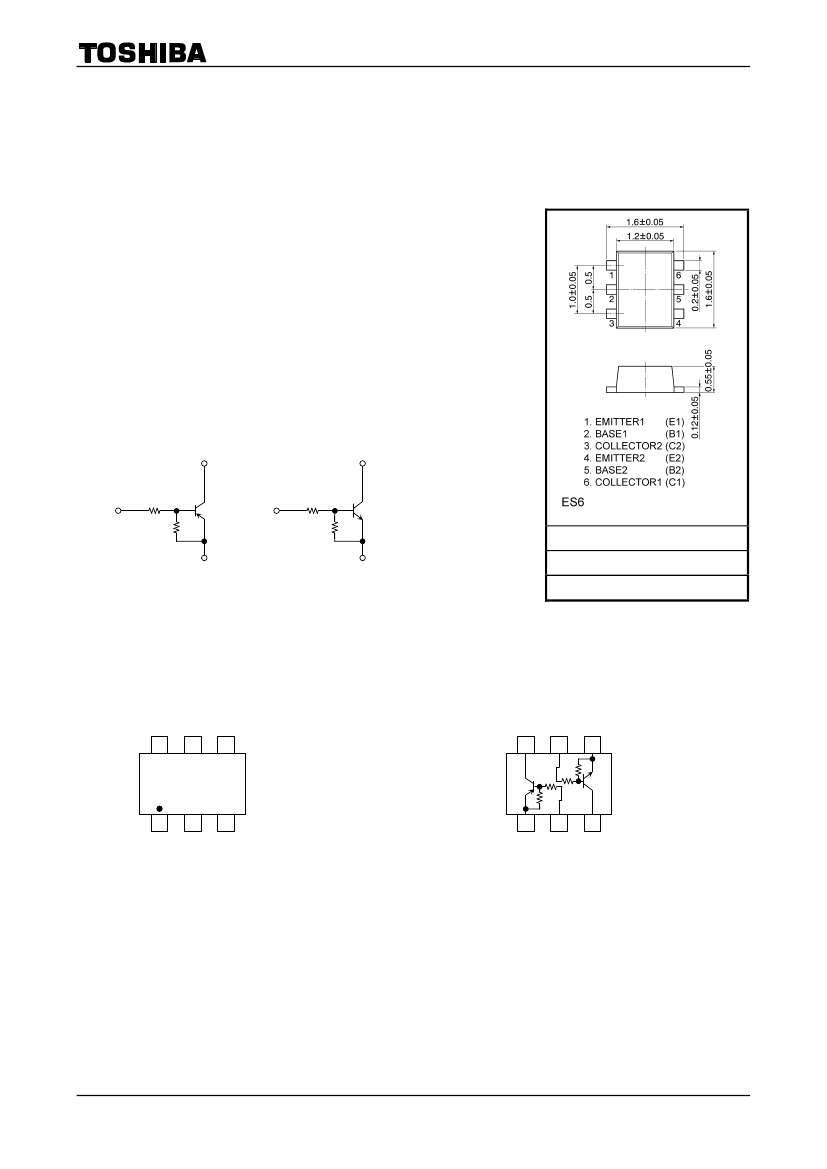

Equivalent Circuit and Bias Resistor Values
Q1
C
Q2
C
B
R1
R2
B
R1
R2
JEDEC
E
2-2N1G
E
JEITA
TOSHIBA
R1: 2.2 kΩ
R2: 47 kΩ
(Q1, Q2 common)
Weight: 0.003g (typ.)
Marking
Equivalent Circuit
(top view)
6
5
4
VE
Q1
Q2
1
2
3
1
2007-11-01
