RN5002(TE12R) datasheet, PDF - EEWORLD Datasheet

RN5002(TE12R): DescriptionTRANSISTOR 2000 mA, NPN, Si, SMALL SIGNAL TRANSISTOR, PW-MINI, 2-5K1A, SC-62, 3 PIN, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size78KB，2 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

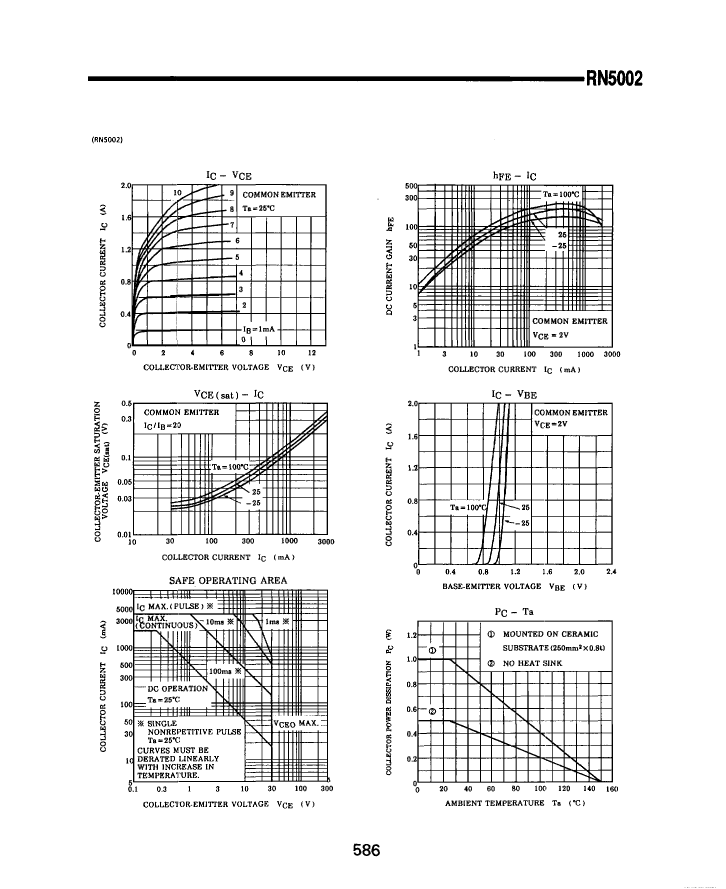

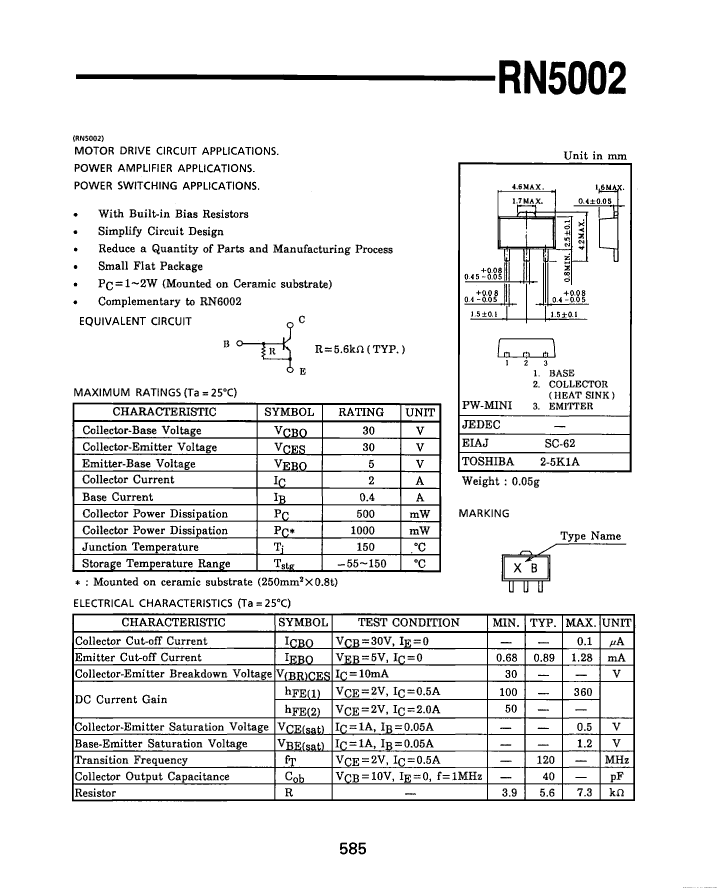

RN5002(TE12R) Overview

TRANSISTOR 2000 mA, NPN, Si, SMALL SIGNAL TRANSISTOR, PW-MINI, 2-5K1A, SC-62, 3 PIN, BIP General Purpose Small Signal

Parameter Name	Attribute value
Parts packaging code	SC-62
package instruction	SMALL OUTLINE, R-PSSO-F3
Contacts	3
Reach Compliance Code	unknown
Other features	BUILT-IN BIAS RESISTOR
Shell connection	COLLECTOR
Maximum collector current (IC)	2 A
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	50
JESD-30 code	R-PSSO-F3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	120 MHz
Base Number Matches	1

	RN5002(TE12R)	RN5002(TE12L)
Description	TRANSISTOR 2000 mA, NPN, Si, SMALL SIGNAL TRANSISTOR, PW-MINI, 2-5K1A, SC-62, 3 PIN, BIP General Purpose Small Signal	TRANSISTOR 2000 mA, NPN, Si, SMALL SIGNAL TRANSISTOR, PW-MINI, 2-5K1A, SC-62, 3 PIN, BIP General Purpose Small Signal
Parts packaging code	SC-62	SC-62
package instruction	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3
Contacts	3	3
Reach Compliance Code	unknown	unknown
Other features	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	2 A	2 A
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	50	50
JESD-30 code	R-PSSO-F3	R-PSSO-F3
Number of components	1	1
Number of terminals	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	FLAT	FLAT
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	120 MHz	120 MHz
Base Number Matches	1	1
