RN2702TE85R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> RN2702TE85R

RN2702TE85R: DescriptionTRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size173KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

RN2702TE85R Overview

TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal

RN2702TE85R Parametric

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G5
Reach Compliance Code	unknown
Other features	BUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.1 A
Collector-based maximum capacity	6 pF
Collector-emitter maximum voltage	50 V
Configuration	COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	50
JESD-30 code	R-PDSO-G5
Number of components	2
Number of terminals	5
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
VCEsat-Max	0.3 V
Base Number Matches	1

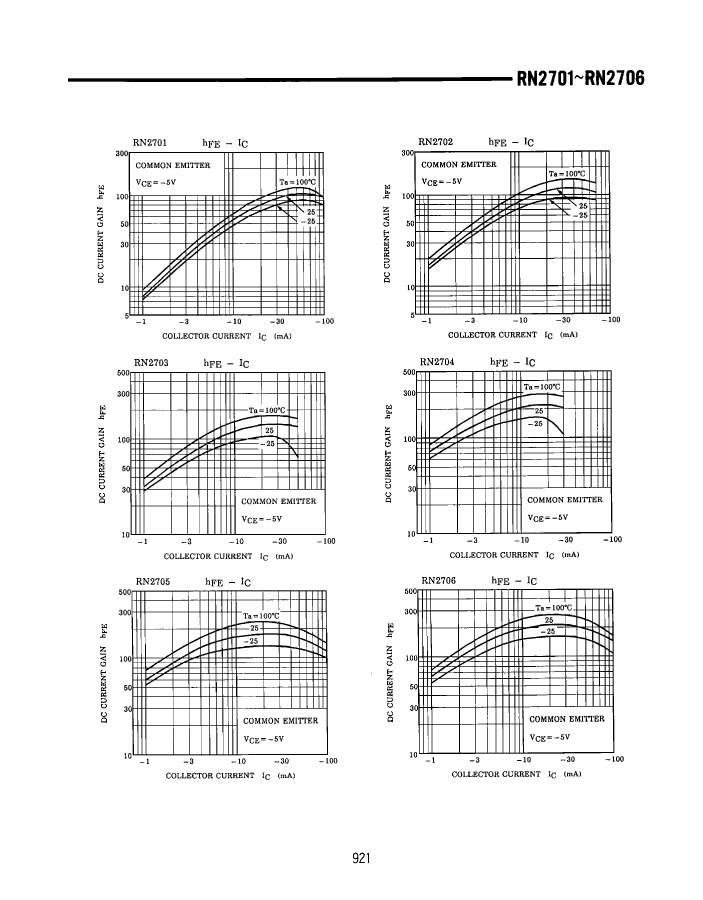

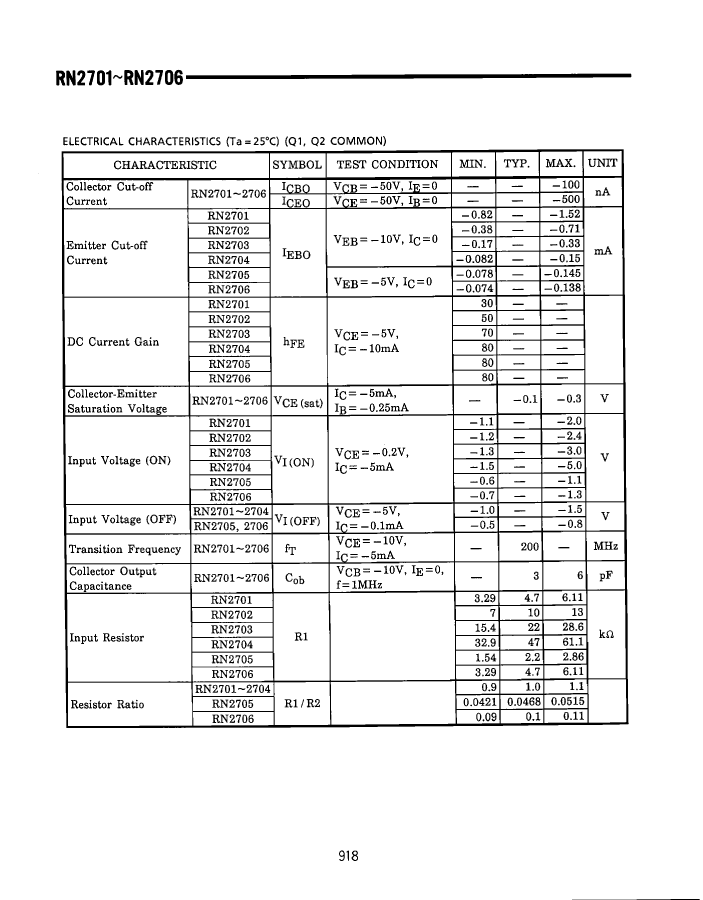

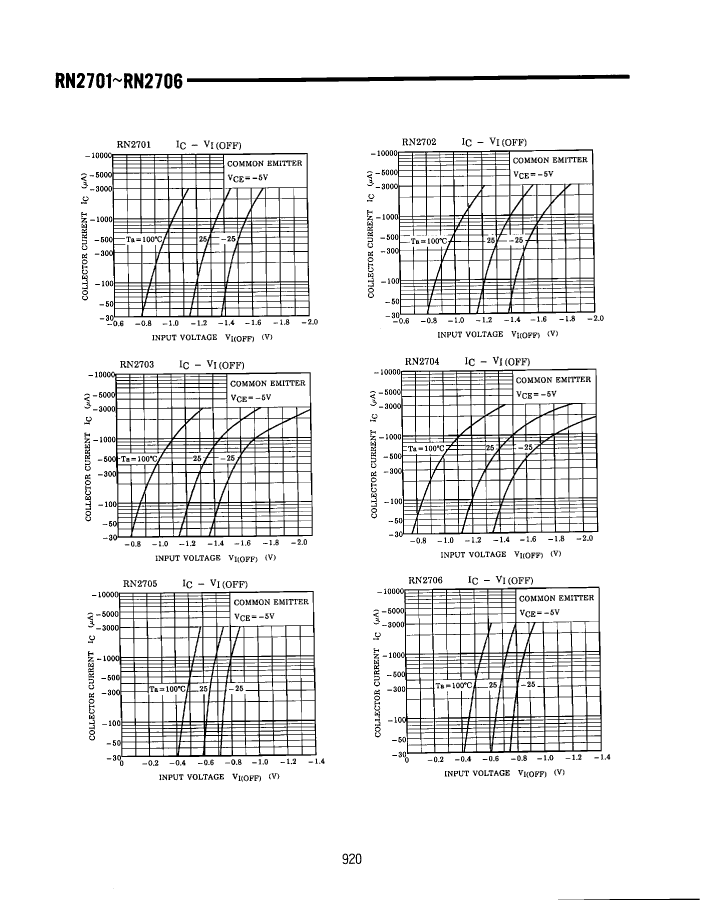

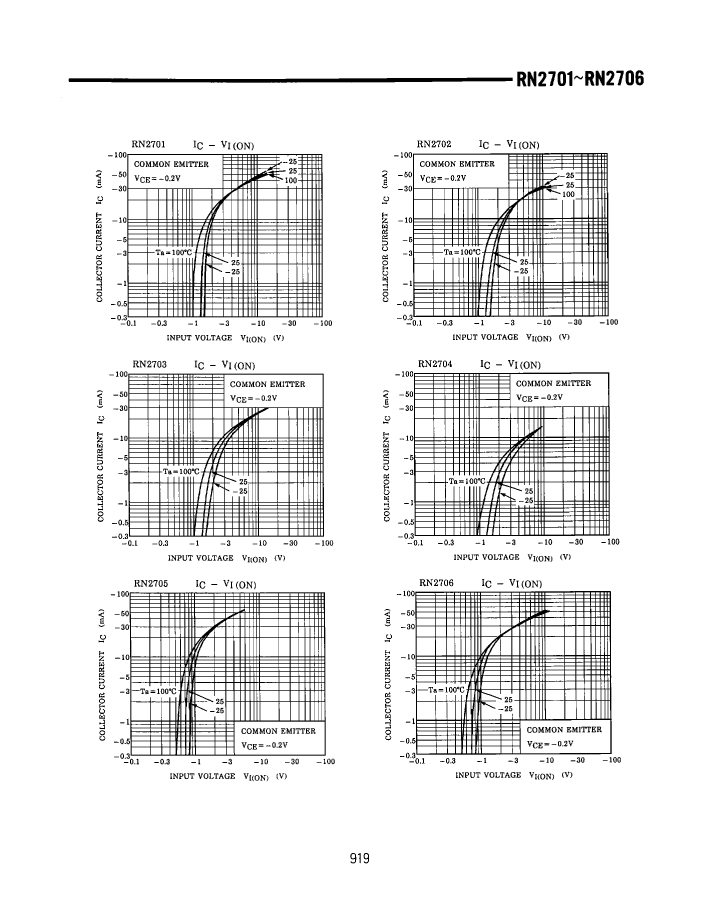

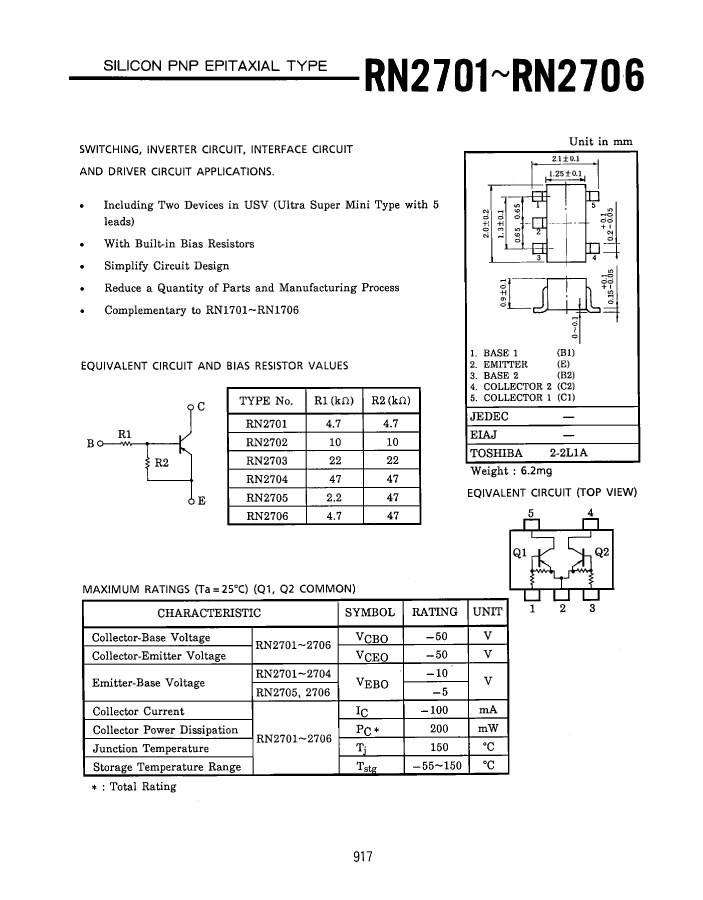

Preview

Download Datasheet

View All

RN2702TE85R Related Products

	RN2702TE85R	RN2702TE85L	RN2704TE85R	RN2706TE85L	RN2706TE85R	RN2703TE85L	RN2704TE85L	RN2705TE85L	RN2705TE85R	RN2703TE85R
Description	TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 0.1	BUILT-IN BIAS RESISTOR RATIO IS 0.1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 1	BUILT-IN BIAS RESISTOR RATIO IS 0.0468	BUILT-IN BIAS RESISTOR RATIO IS 0.0468	BUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Collector-based maximum capacity	6 pF	6 pF	6 pF	6 pF	6 pF	6 pF	6 pF	6 pF	6 pF	6 pF
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V
Configuration	COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR	COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR	COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR	COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR	COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR	COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR	COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR	COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR	COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR	COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	50	50	80	80	80	70	80	80	80	70
JESD-30 code	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5
Number of components	2	2	2	2	2	2	2	2	2	2
Number of terminals	5	5	5	5	5	5	5	5	5	5
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz
VCEsat-Max	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V
package instruction	SMALL OUTLINE, R-PDSO-G5	SMALL OUTLINE, R-PDSO-G5	SMALL OUTLINE, R-PDSO-G5	SMALL OUTLINE, R-PDSO-G5	SMALL OUTLINE, R-PDSO-G5	SMALL OUTLINE, R-PDSO-G5	SMALL OUTLINE, R-PDSO-G5	-	SMALL OUTLINE, R-PDSO-G5	SMALL OUTLINE, R-PDSO-G5
Maker	-	-	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
