P74FCT3821CP datasheet, PDF - EEWORLD Datasheet

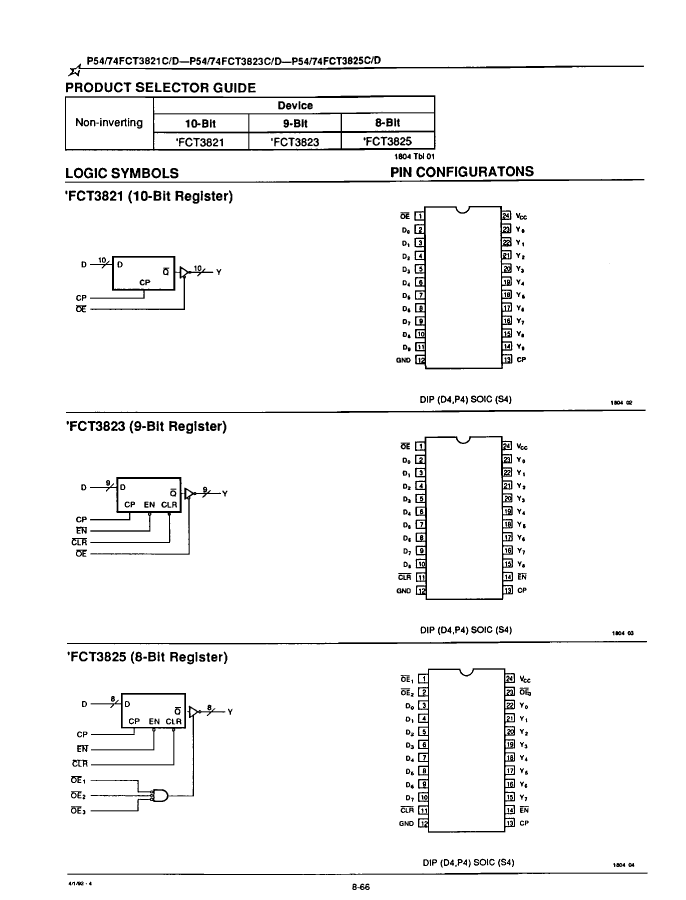

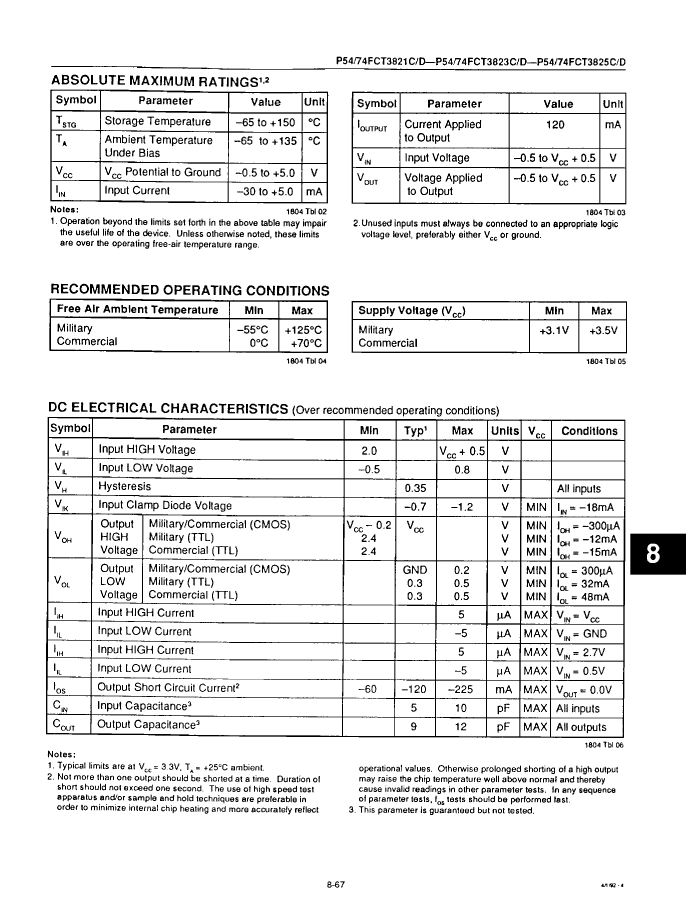

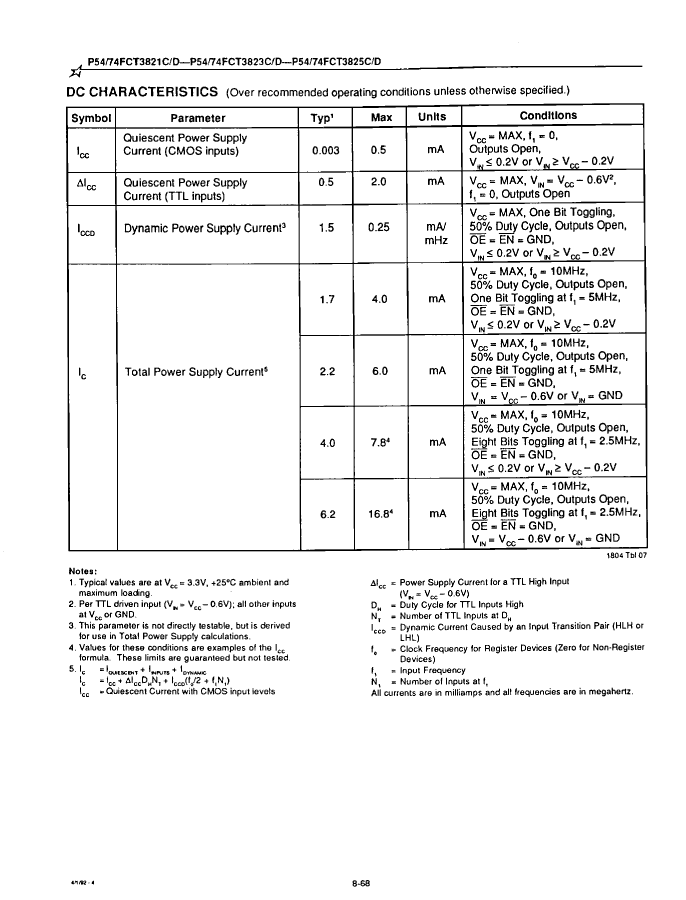

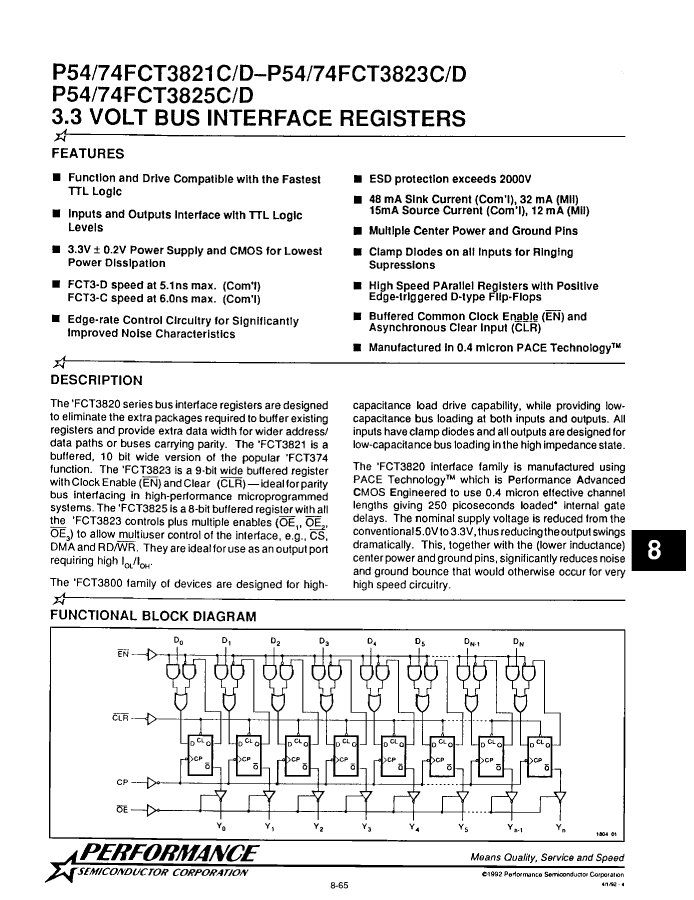

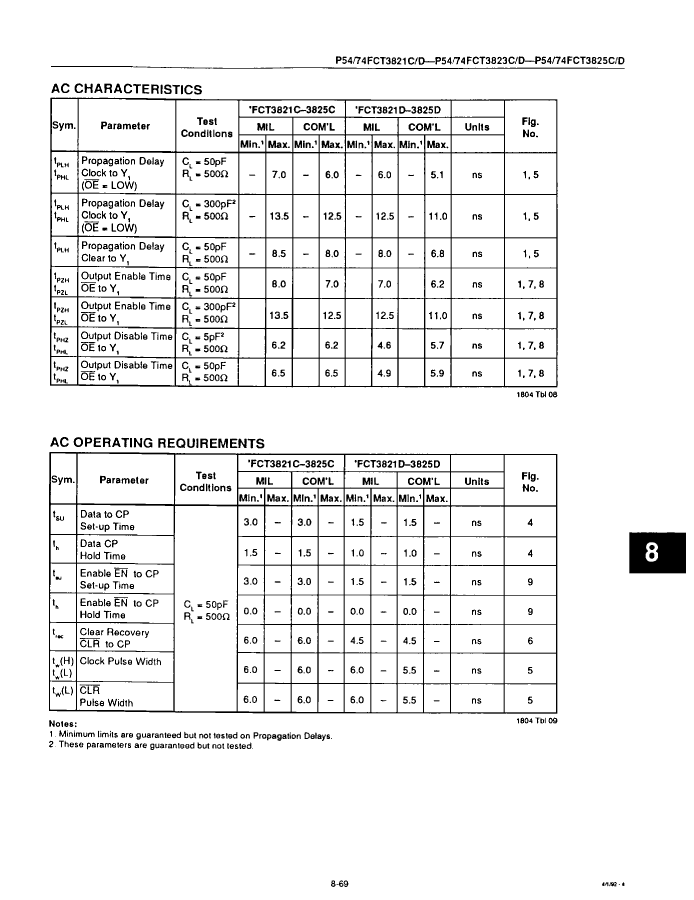

P74FCT3821CP: DescriptionBus Driver, FCT Series, 1-Func, 10-Bit, True Output, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24; Categorylogic logic; File Size196KB，6 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric View All

P74FCT3821CP Overview

Bus Driver, FCT Series, 1-Func, 10-Bit, True Output, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP24,.3
Contacts	24
Reach Compliance Code	unknown
Other features	IOH = 0.3MA @ VOH = 2.9V; IOL = 0.3MA @ VOL = 0.2V
series	FCT
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
length	31.9405 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Maximum Frequency@Nom-Sup	83000000 Hz
MaximumI(ol)	0.048 A
Number of digits	10
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
propagation delay (tpd)	6 ns
Certification status	Not Qualified
Maximum seat height	4.318 mm
Maximum supply voltage (Vsup)	3.5 V
Minimum supply voltage (Vsup)	3.1 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm
Base Number Matches	1
