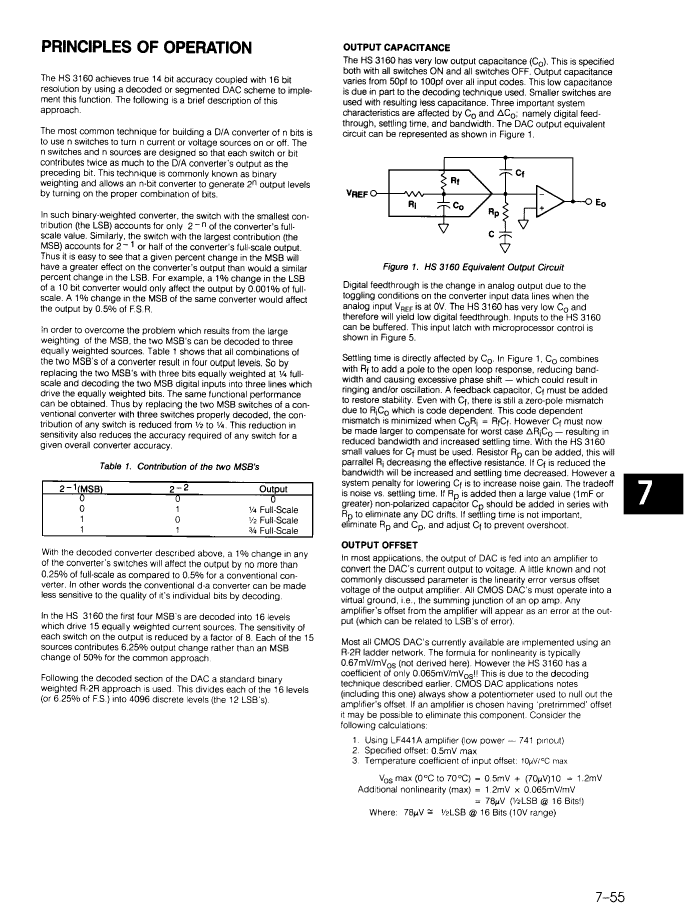

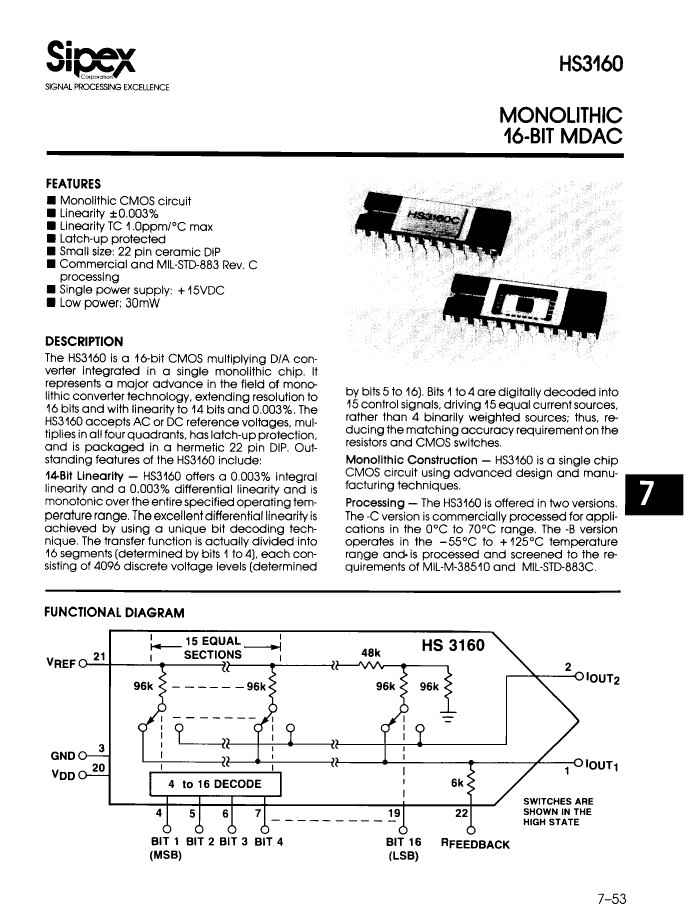

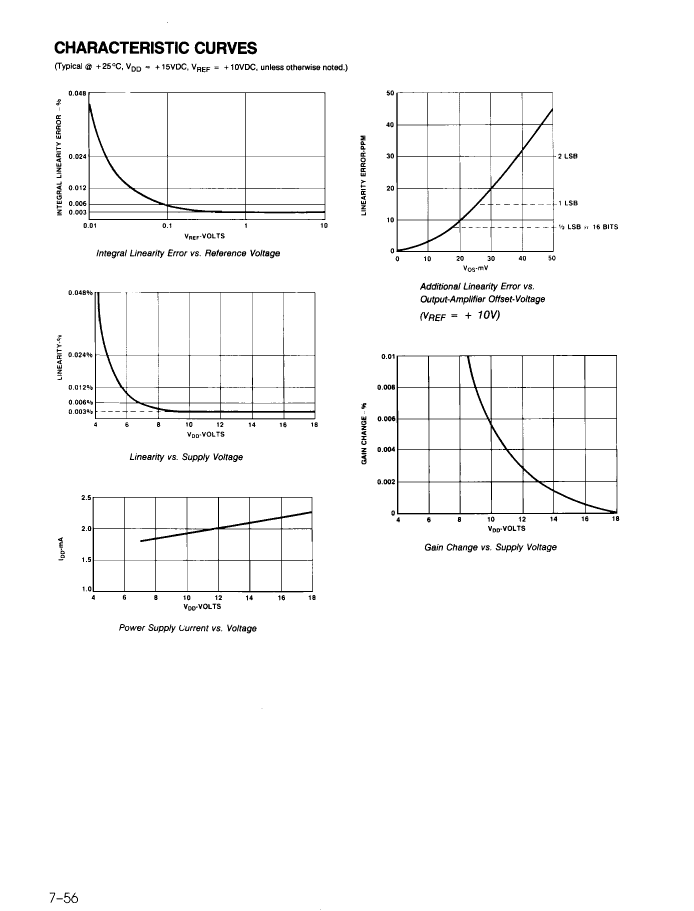

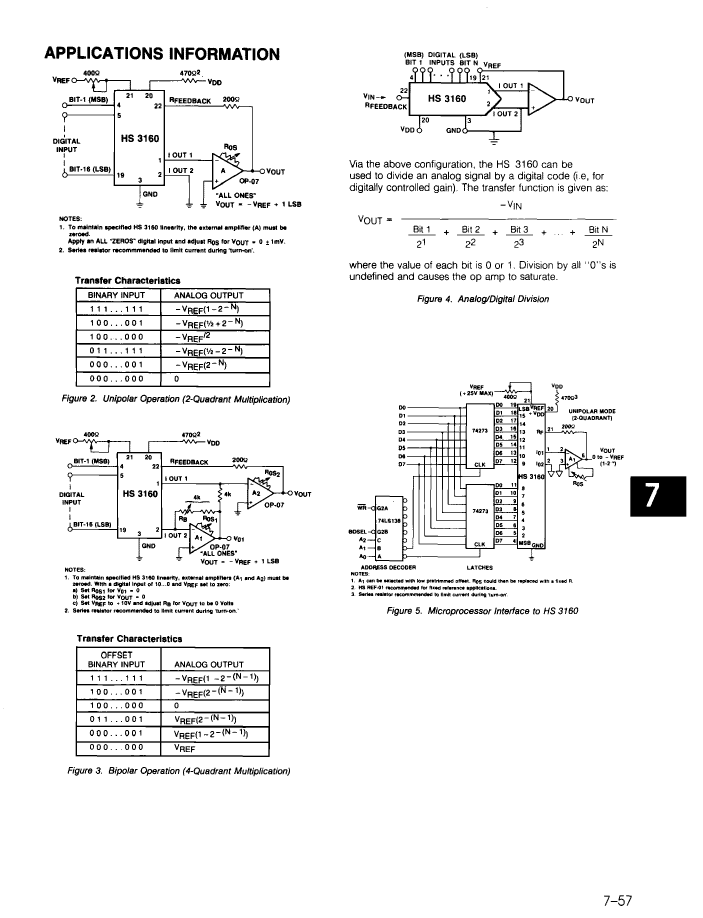

PARALLEL, WORD INPUT LOADING, 2us SETTLING TIME, 16-BIT DAC, CDIP22, HERMETIC SEALED, CERAMIC, DIP-22

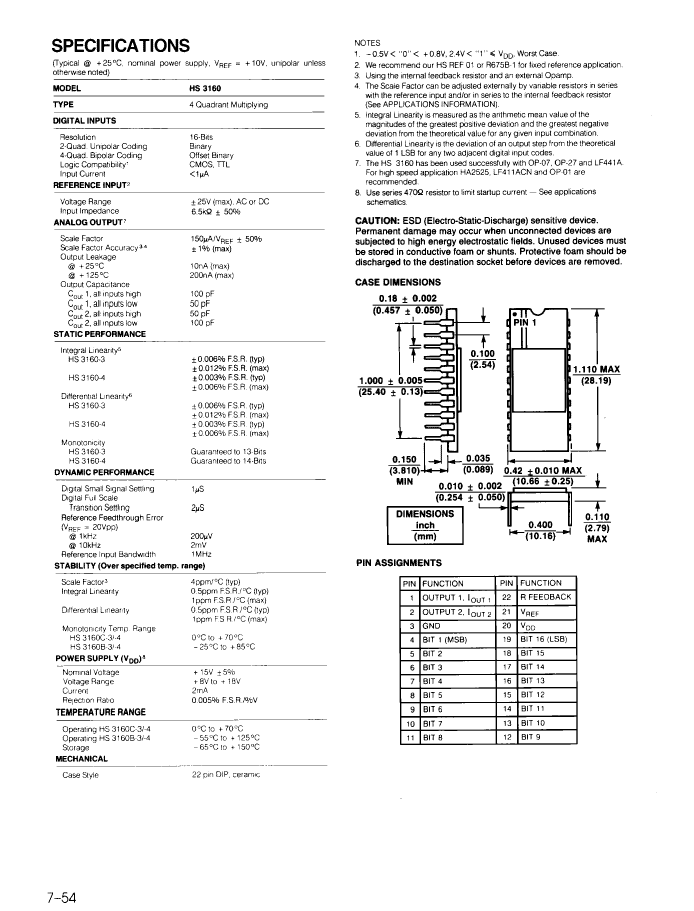

| Parameter Name | Attribute value |
| Parts packaging code | DIP |
| package instruction | HERMETIC SEALED, CERAMIC, DIP-22 |
| Contacts | 22 |
| Reach Compliance Code | unknown |
| Maximum analog output voltage | 10 V |
| Minimum analog output voltage | |
| Converter type | D/A CONVERTER |
| Enter bit code | BINARY, OFFSET BINARY |
| Input format | PARALLEL, WORD |
| JESD-30 code | R-CDIP-T22 |
| Maximum linear error (EL) | 0.012% |
| Nominal negative supply voltage | -15 V |
| Number of digits | 16 |
| Number of functions | 1 |
| Number of terminals | 22 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum seat height | 3.68 mm |
| Nominal settling time (tstl) | 2 µs |
| Nominal supply voltage | 15 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 10.16 mm |
| Base Number Matches | 1 |
| HS-3160C-3 | HS-3160B-4 | HS-3160C-4 | HS-3160B-3 | |
|---|---|---|---|---|
| Description | PARALLEL, WORD INPUT LOADING, 2us SETTLING TIME, 16-BIT DAC, CDIP22, HERMETIC SEALED, CERAMIC, DIP-22 | PARALLEL, WORD INPUT LOADING, 2us SETTLING TIME, 16-BIT DAC, CDIP22, HERMETIC SEALED, CERAMIC, DIP-22 | PARALLEL, WORD INPUT LOADING, 2 us SETTLING TIME, 16-BIT DAC, CDIP22, HERMETIC SEALED, CERAMIC, DIP-22 | PARALLEL, WORD INPUT LOADING, 2us SETTLING TIME, 16-BIT DAC, CDIP22, HERMETIC SEALED, CERAMIC, DIP-22 |
| Parts packaging code | DIP | DIP | DIP | DIP |
| package instruction | HERMETIC SEALED, CERAMIC, DIP-22 | DIP, | DIP, | DIP, |
| Contacts | 22 | 22 | 22 | 22 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Maximum analog output voltage | 10 V | 10 V | 10 V | 10 V |
| Converter type | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER |
| Enter bit code | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY |
| Input format | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD |
| JESD-30 code | R-CDIP-T22 | R-CDIP-T22 | R-CDIP-T22 | R-CDIP-T22 |
| Maximum linear error (EL) | 0.012% | 0.006% | 0.006% | 0.012% |
| Nominal negative supply voltage | -15 V | -15 V | -15 V | -15 V |
| Number of digits | 16 | 16 | 16 | 16 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 22 | 22 | 22 | 22 |
| Maximum operating temperature | 70 °C | 125 °C | 70 °C | 125 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 3.68 mm | 3.68 mm | 3.68 mm | 3.68 mm |
| Nominal settling time (tstl) | 2 µs | 2 µs | 2 µs | 2 µs |
| Nominal supply voltage | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | MILITARY | COMMERCIAL | MILITARY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| width | 10.16 mm | 10.16 mm | 10.16 mm | 10.16 mm |
| Base Number Matches | 1 | 1 | 1 | 1 |
