PI74FCT3245ALX datasheet, PDF - EEWORLD Datasheet

PI74FCT3245ALX: DescriptionBus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.173 INCH, PLASTIC, TSSOP-20; Categorylogic logic; File Size113KB，4 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric View All

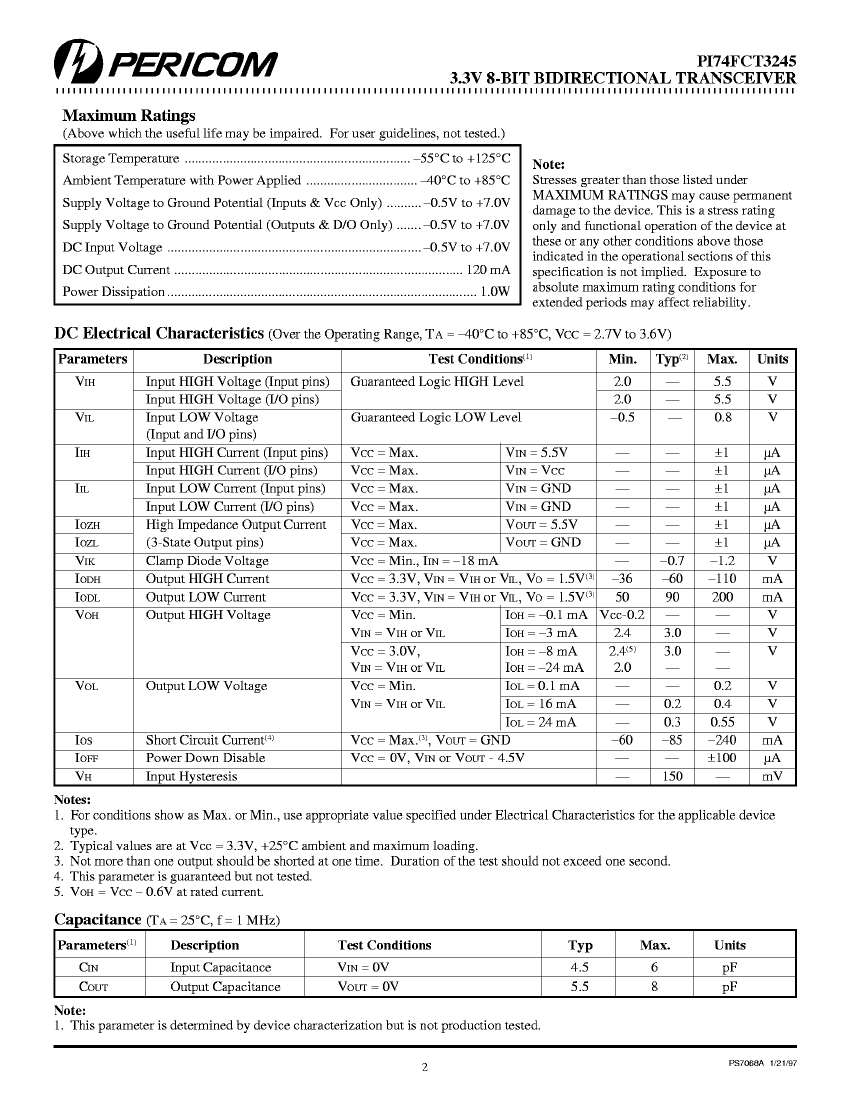

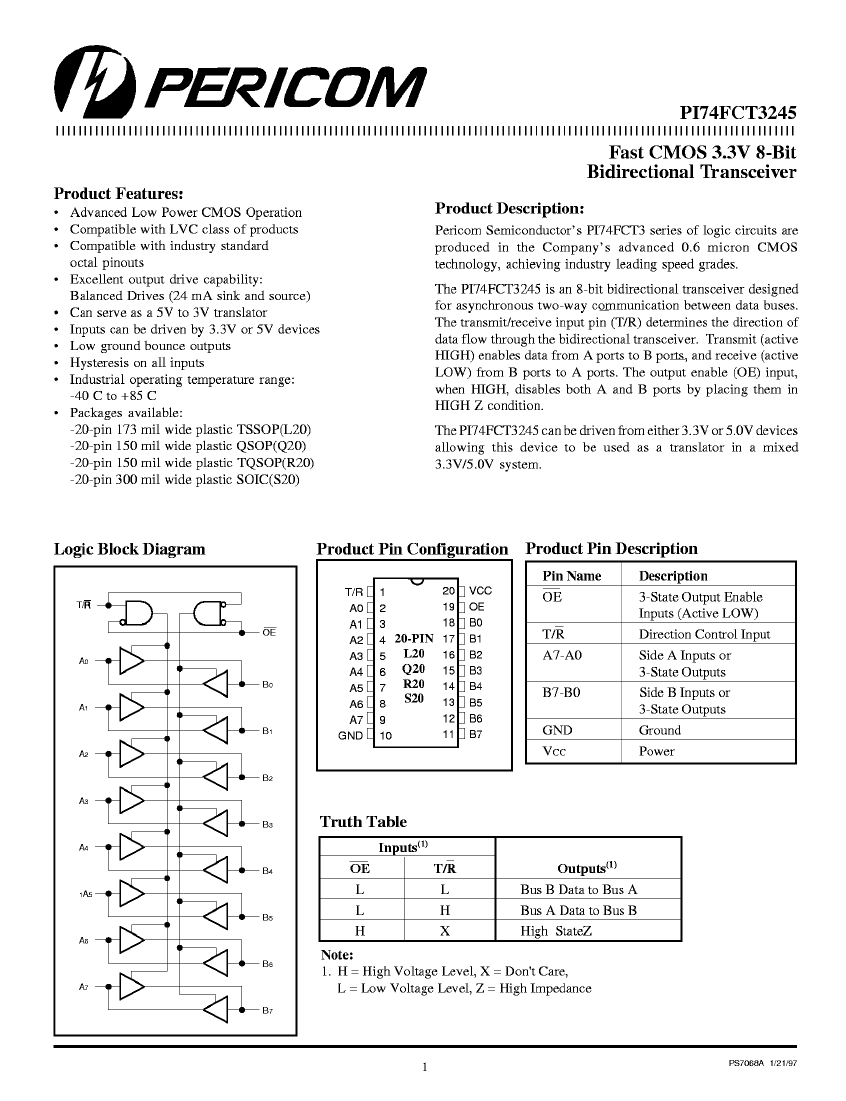

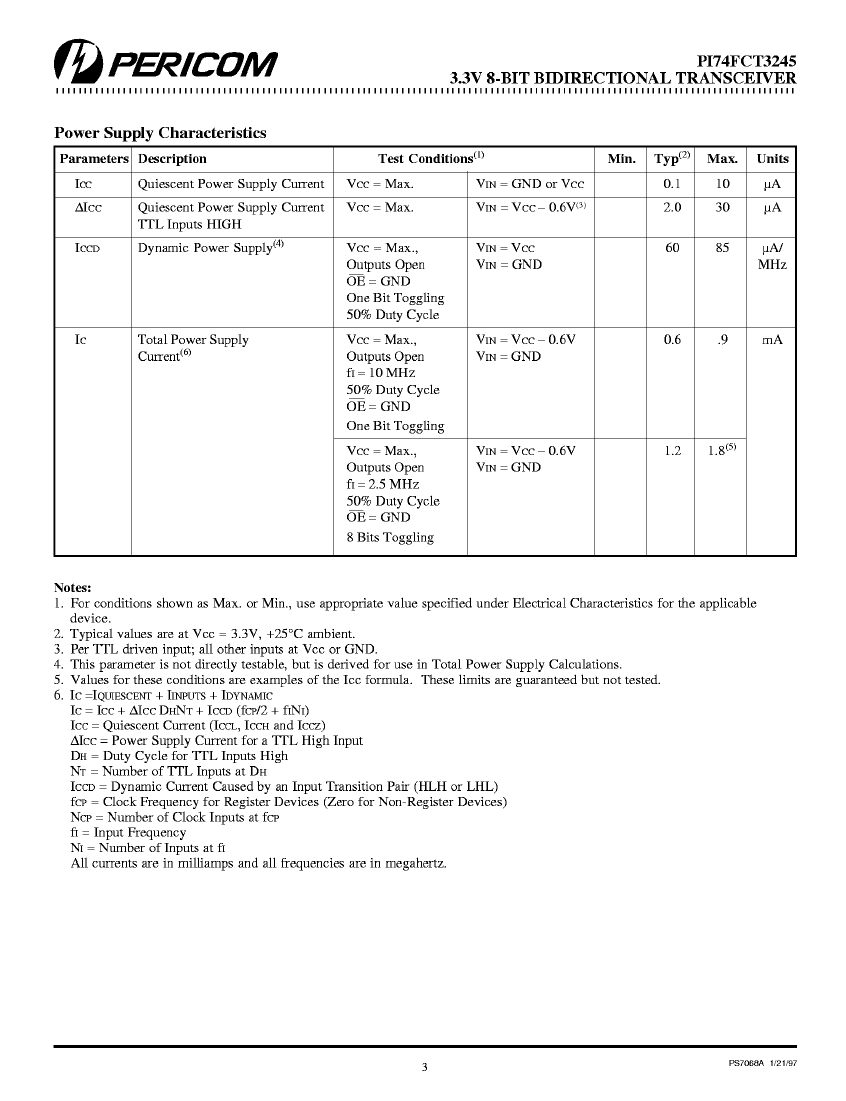

PI74FCT3245ALX Overview

Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.173 INCH, PLASTIC, TSSOP-20

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH DIRECTION CONTROL
series	FCT
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	6.5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	235

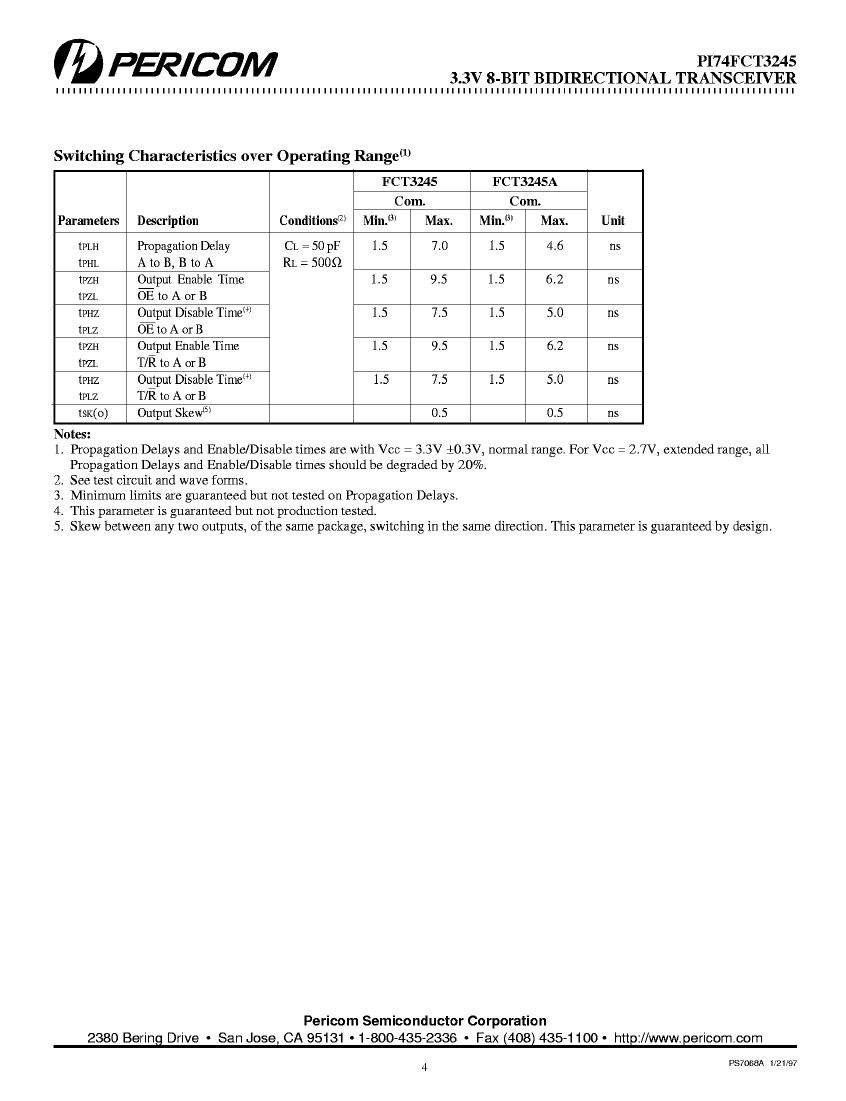

propagation delay (tpd)	5.52 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
Base Number Matches	1
