HS9412T datasheet, PDF - EEWORLD Datasheet

HS9412T: DescriptionADC Subsystem, 12-Bit, 1 Func, 8 Channel, Parallel, Word Access, BICMOS, CDIP28, CERAMIC, DIP-28; CategoryAnalog mixed-signal IC converter; File Size326KB，8 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric View All

HS9412T Overview

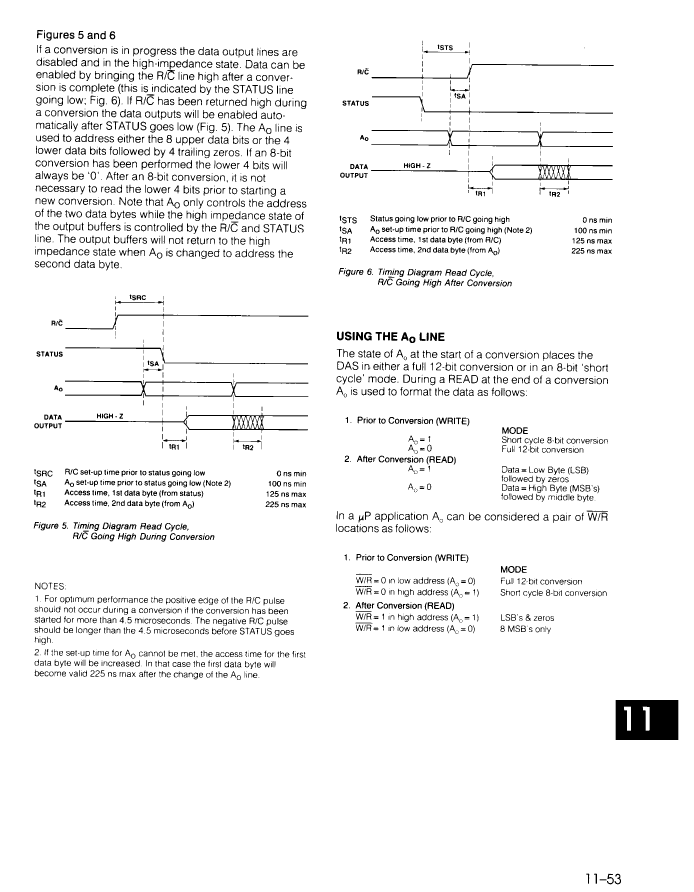

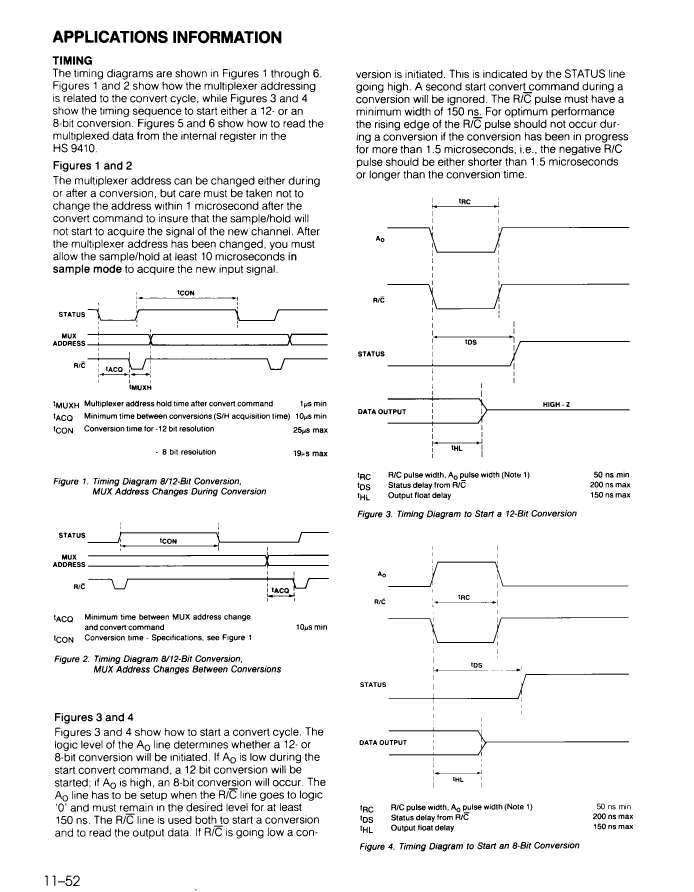

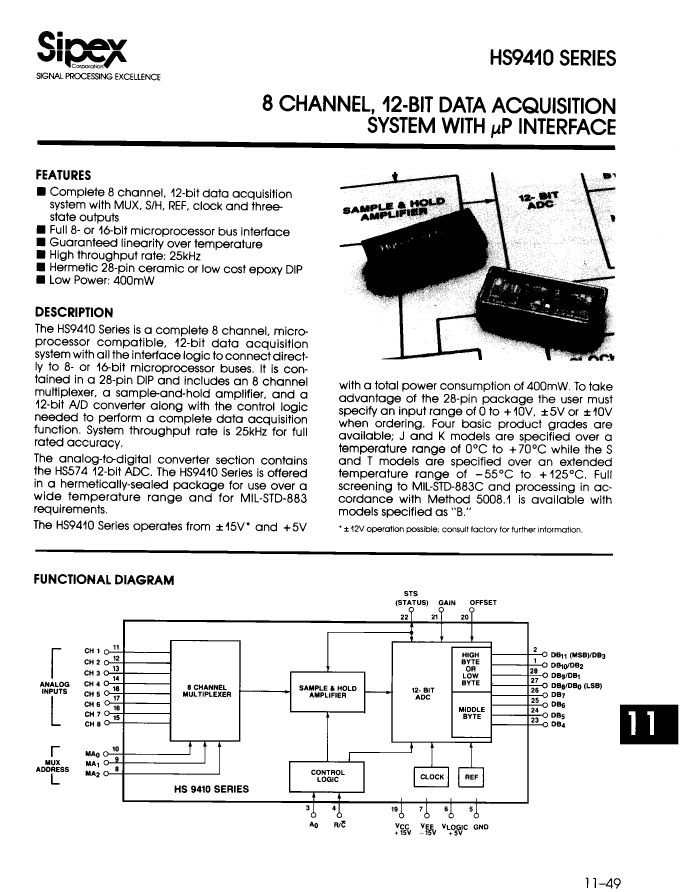

ADC Subsystem, 12-Bit, 1 Func, 8 Channel, Parallel, Word Access, BICMOS, CDIP28, CERAMIC, DIP-28

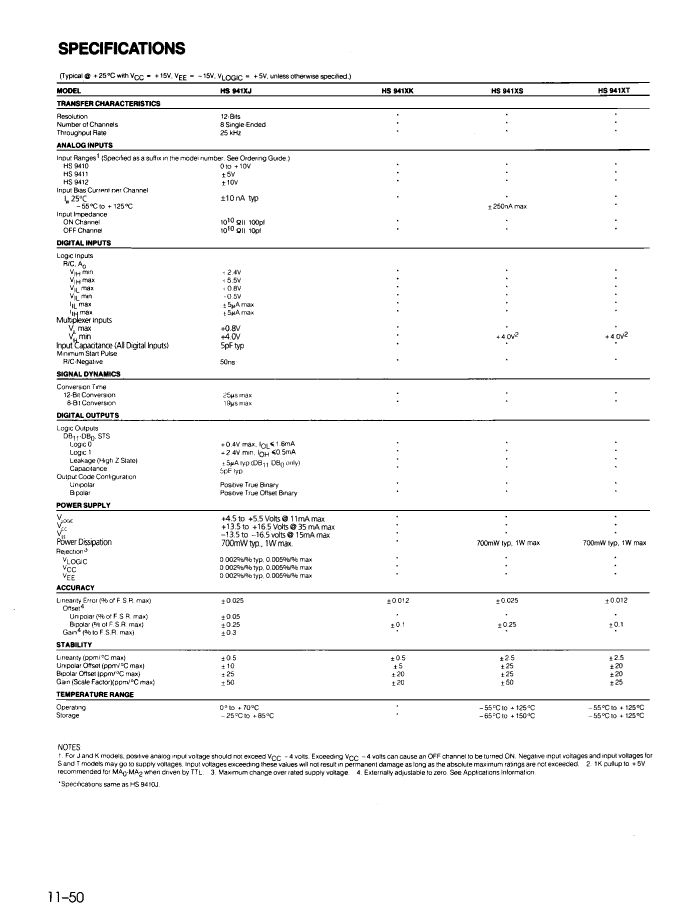

Parameter Name	Attribute value
Is it Rohs certified?	incompatible

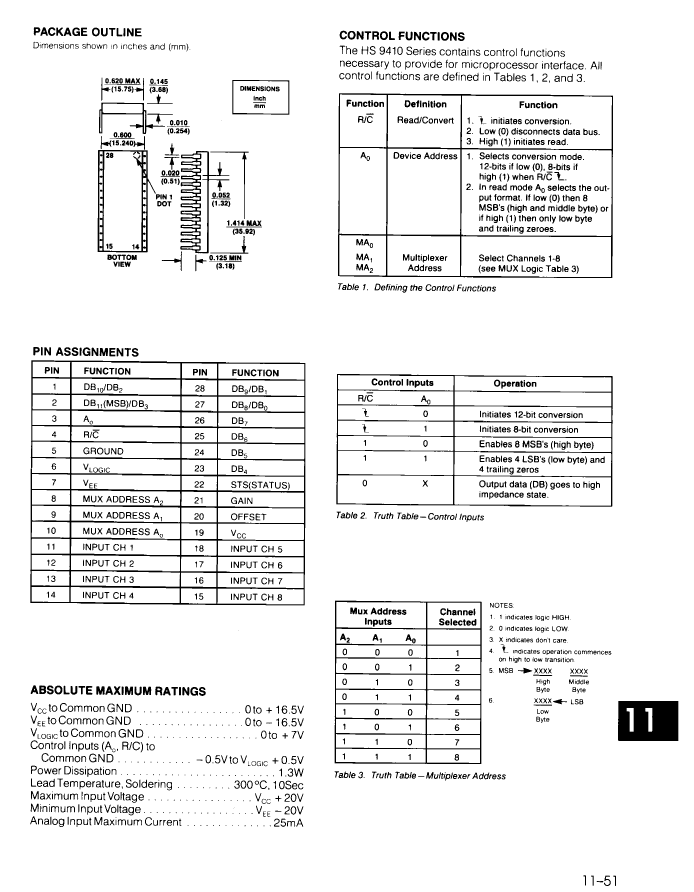

package instruction	CERAMIC, DIP-28
Reach Compliance Code	unknown
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Maximum conversion time	25 µs
Converter type	ADC SUBSYSTEM
JESD-30 code	R-CDIP-T28
JESD-609 code	e0
length	37.592 mm
Maximum linear error (EL)	0.012%
Nominal negative supply voltage	-15 V
Number of analog input channels	8
Number of digits	12
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-15 V
Certification status	Not Qualified
Sampling rate	0.025 MHz
Sample and hold/Track and hold	SAMPLE
Maximum slew rate	35 mA
Nominal supply voltage	15 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
Base Number Matches	1
