PI74STX2G14CX

Description
Inverter, STX Series, 2-Func, 1-Input, CMOS, PDSO6, MO-203AB, SC-70, 6 PIN
Categorylogic    logic
File Size184KB,5 Pages
ManufacturerPericom Semiconductor Corporation (Diodes Incorporated)
Websitehttps://www.diodes.com/
Download Datasheet Parametric View All

PI74STX2G14CX Overview

Inverter, STX Series, 2-Func, 1-Input, CMOS, PDSO6, MO-203AB, SC-70, 6 PIN

PI74STX2G14CX Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeTSSOP
package instructionTSSOP, TSSOP6,.08
Contacts6
Reach Compliance Codecompliant
ECCN codeEAR99
seriesSTX
JESD-30 codeR-PDSO-G6
JESD-609 codee0
length2 mm
Logic integrated circuit typeINVERTER
MaximumI(ol)0.024 A
Number of functions2
Number of entries1
Number of terminals6
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Encapsulate equivalent codeTSSOP6,.08
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packingTAPE AND REEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply3.3 V
propagation delay (tpd)14.5 ns
Certification statusNot Qualified
Schmitt triggerYES
Maximum seat height1.1 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)1.65 V
Nominal supply voltage (Vsup)1.8 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width1.25 mm
Base Number Matches1
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI74STX2G14
SOTiny
Gate STX Dual
Schmitt-Trigger Inverter
Features
High-Speed: t
PD
= 3.2ns typical into 50pF @ 5V V
CC
Broad Operating Range: V
CC
= 1.65V to 5.5V
Power down high-impedance inputs/outputs
High Output Drive: ±24mA at 3V V
CC

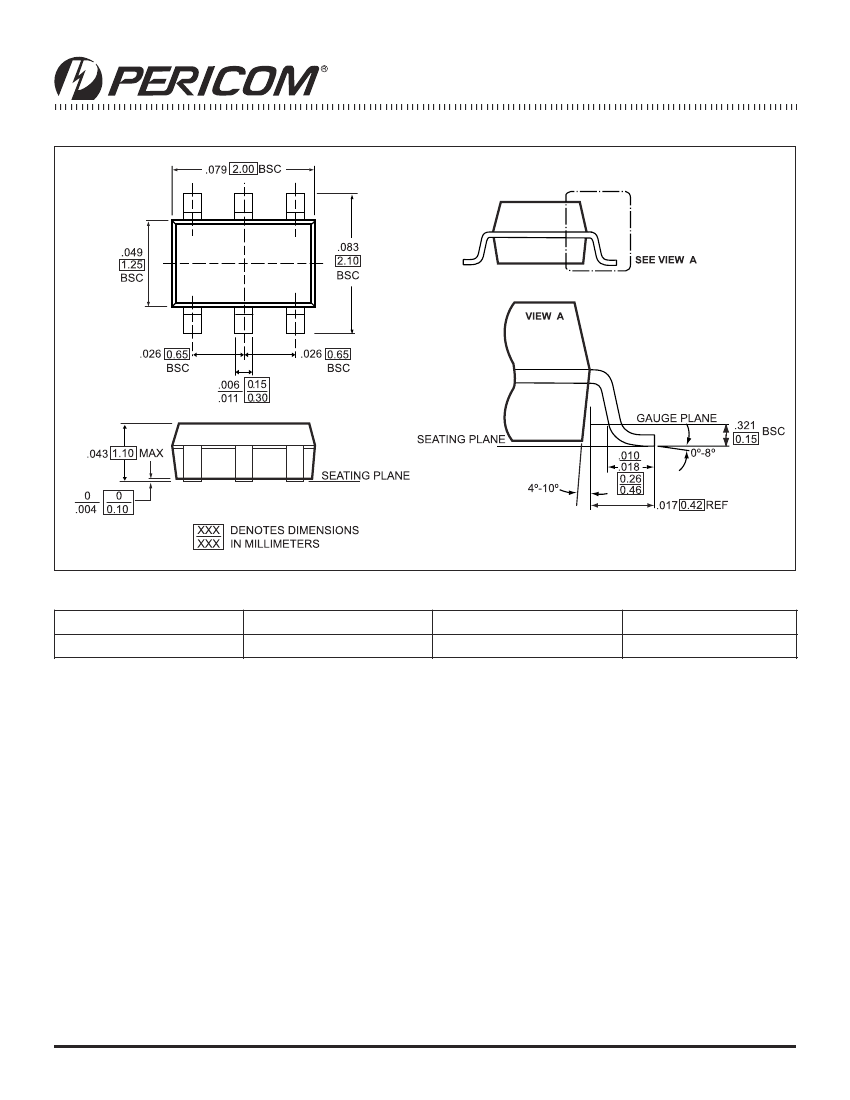

Package: 6-pin space saving SC70 (C)
Description
The PI74STX2G14 is a Dual Schmitt-Trigger inverter that operates
over the 1.65V to 5.5V V
CC
operating range.
Pericom’s PI74STX series of products are produced using the
Company’s advanced submicron technology.
PI74STX2G14
Y1 VCC Y2
6
5
4
6-Pin
C
1
2
3
Block Diagram
An
Yn
A1 GND A2
Pin Description
Pin Name s
An
Yn
De s cription
Inputs
Outputs
Recommended Operating Conditions
(1)
Parame te r
Supply Voltage (V
CC
)
Input Voltage (V
IN
)
Output Voltage (V
OUT
)
Output
Y
H
L
Condition
M in. M ax.
1.65
0
0
–40
5.5
5.5
V
CC
85
20
10
5
Units
V
°C
Function Table
Inputs
A
L
H
Operating Temperature
V
CC
= 1.8V,
2.5V±0.2V
Input Rise and
Fall Time (t
r
,t
f
)
V
CC
= 3.3V,
± 0.3V
V
CC
=5.0V,
± 0.5V
0
0
0
ns/V
Note:
H = HIGH Logic Level
L = LOW Logic Level
Note:
1. Unused inputs must be held HIGH or LOW. They may not float.
1
PS8644
11/06/02
